Harmony eXLhoist System with charger standard, shoulder belt, cable USB/RJ45 and config software, for control station

Home ProductsIndustrialHarmonySystem with charger

Harmony eXLhoist System with charger standard, shoulder belt, cable USB/RJ45 and config software, for control station

Item Number: XARSK8D18H

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony eXLhoist

Product or component type

control station

Physical

Number of channels

50

Operating distance

100 m in free air

Connector type

industrial socket

Cable entry

cable gland

Communication network type

wireless: bluetooth low energy

Transmission frequency

2.4 GHz

Relative humidity

0...95 % at -20...45 °C storage

Standards

  • IEC 60204-1 safety
  • ISO 13849-1 safety
  • IEC 62061 safety
  • IEC 61508 safety
  • ISO 13850 safety
  • IEC 60204-32 hoisting applications
  • ETSI EN 301 489-1 radio
  • ETSI EN 301 489-3 radio
  • ETSI EN 301 489-17 radio
  • ETSI EN 300 440-2 radio
  • ETSI EN 300 328 radio
  • FCC part 15 radio
  • RSS GEN issue 3 radio
  • RSS 210 issue 8 radio
  • ARIB STD-T81 radio

Product certifications

  • CE
  • UL
  • CSA
  • C-Tick
  • JIS
  • KC
  • EAC

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1403029EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

At least in Europe

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

XARS

Control station type

wireless

Product specific application

  • material handling
  • hoisting applications

Control station application

  • stop function: SIL 2 maximum (can reach PL d/category 3) conforming to IEC 62061
  • stop function: SIL 2 maximum (can reach PL d/category 3) conforming to ISO 13849-1
  • emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to IEC 62061
  • emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to ISO 13849-1
  • motion function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061
  • motion function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1
  • limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061
  • limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1

Kit composition

  • base station
  • cable
  • shoulder belt
  • configuration software
  • remote control

Radio agreement

  • ARIB
  • RSS
  • FCC
  • ANATEL
  • SRRC
  • ICASA

Electromagnetic compatibility

  • resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2
  • resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2
  • resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

20.0 cm

Package 1 width

28.5 cm

Package 1 length

30.5 cm

Package 1 weight

3.089 kg

Unit type of package 2

S04

Number of units in package 2

2

Package 2 height

30.0 cm

Package 2 width

40.0 cm

Package 2 length

60.0 cm

Package 2 weight

7.131 kg

Sustainable packaging

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

6e438e59-42d1-4633-bfe2-cb5ef607659b

End of life manual availability

ENVEOLI1403029EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Operating Manuals

  • Quick Start Guide

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

  • Firmware

  • Software - Release

Important: Some software files may need a mySchneider or Club login to download.
998-19817525_US
PDF

998-19817525_US

VERSION

1.0

DATE

11 Feb 2016

REVISION

1.0

DOWNLOAD (PDF) 568.1 KB

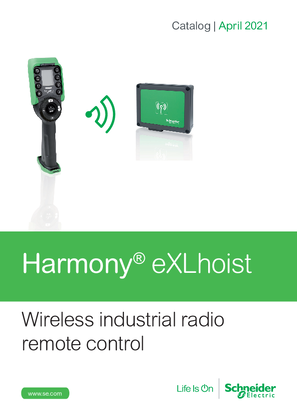

Catalog Harmony eXLhoist - Wireless industrial radio remote control English 04/2021
ZIP

Catalog Harmony eXLhoist - Wireless industrial radio remote control English 04/2021

VERSION

6.0

DATE

06 Dec 2024

REVISION

6.0

DOWNLOAD (ZIP) 7.2 MB
XARS8D18. / XARS12D18. / XARS8L12. Wireless Remote Control Station, Instruction Sheet (EN)
ZIP

XARS8D18. / XARS12D18. / XARS8L12. Wireless Remote Control Station, Instruction Sheet (EN)

VERSION

5.0

DATE

04 Mar 2022

REVISION

5.0

DOWNLOAD (ZIP) 4.8 MB

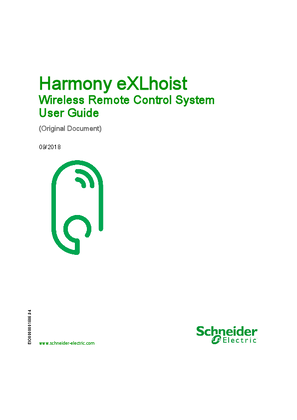

Harmony eXLhoist - Wireless Remote Control System, User Manual
ZIP

Harmony eXLhoist - Wireless Remote Control System, User Manual

VERSION

5.0

DATE

29 Sep 2023

REVISION

5.0

DOWNLOAD (ZIP) 9.6 MB

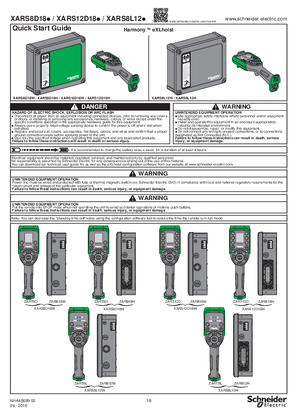

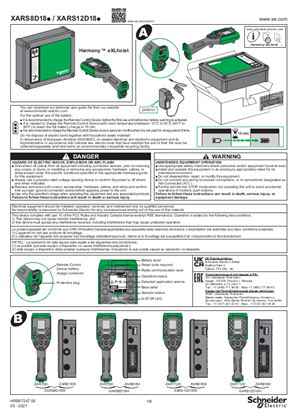

XARS8D18. - XARS12D18. - XARS8L12. Wireless Remote Control Station, Quick Start Guide
ZIP

XARS8D18. - XARS12D18. - XARS8L12. Wireless Remote Control Station, Quick Start Guide

VERSION

3.0

DATE

29 Sep 2023

REVISION

3.0

DOWNLOAD (ZIP) 8.7 MB

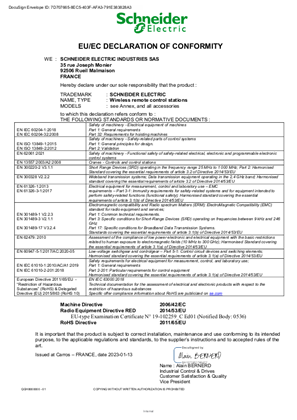

eXLhoist Declaration of conformity
ZIP

eXLhoist Declaration of conformity

VERSION

1.0

DATE

28 Aug 2025

REVISION

1.0

DOWNLOAD (ZIP) 276.9 KB

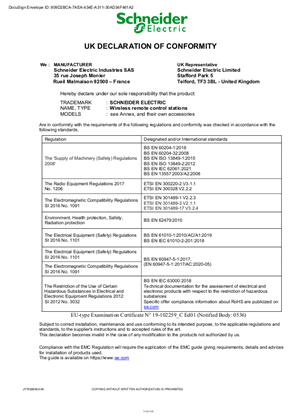

UK Declaration of Conformity eXLhoist Standard 2.4 GHz
ZIP

UK Declaration of Conformity eXLhoist Standard 2.4 GHz

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 206.9 KB
Harmony eXLhoist
ZIP

Harmony eXLhoist

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 2.1 MB

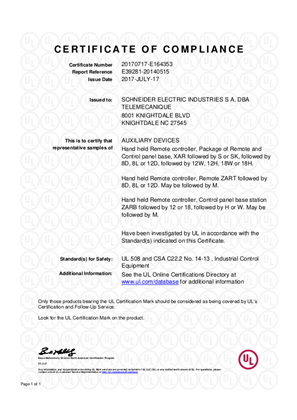

UL - XARS XARSK ZART ZARB Harmony eXLhoist Standard
ZIP

UL - XARS XARSK ZART ZARB Harmony eXLhoist Standard

VERSION

1.1

DATE

04 Mar 2024

REVISION

1.1

DOWNLOAD (ZIP) 384.6 KB
Harmony eXLhoist
ZIP

Harmony eXLhoist

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 645.9 KB

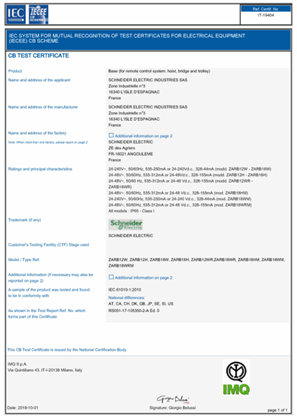

CB Scheme for the Harmony eXLhoist range
ZIP

CB Scheme for the Harmony eXLhoist range

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 820 KB
NCC-Certificate-NCC (Taïwan) Harmony eXLhoist
ZIP

NCC-Certificate-NCC (Taïwan) Harmony eXLhoist

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 3.7 MB

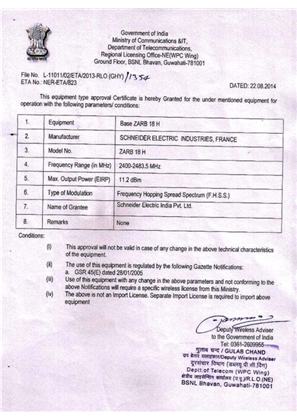

NER-ETA-Certificate-Ministry of Communication (India) - Harmony eXLhoist
ZIP

NER-ETA-Certificate-Ministry of Communication (India) - Harmony eXLhoist

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB

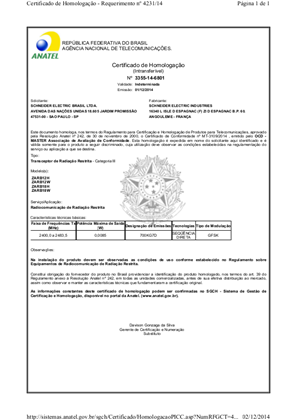

ANATEL-Certificate-ANATEL (Brasil) Harmony eXLhoist
ZIP

ANATEL-Certificate-ANATEL (Brasil) Harmony eXLhoist

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 387.1 KB

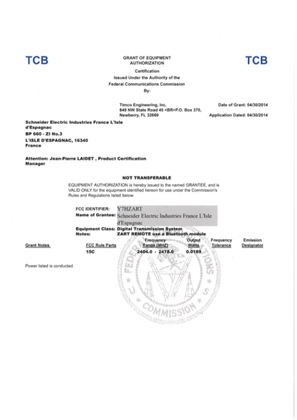

FCC Certificate eXLhoist
ZIP

FCC Certificate eXLhoist

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 421.3 KB

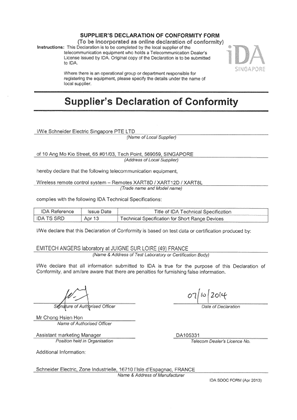

IDA-Certificate-IDA (Singapore) Harmony eXLhoist
ZIP

IDA-Certificate-IDA (Singapore) Harmony eXLhoist

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 428.3 KB

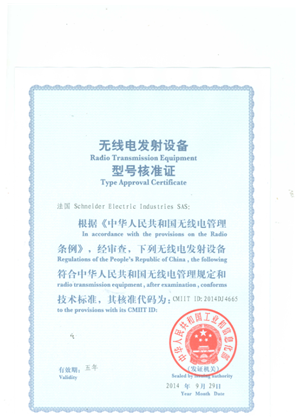

SRRC-Certificate-SRRC (China) Harmony eXLhoist
ZIP

SRRC-Certificate-SRRC (China) Harmony eXLhoist

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 7.4 MB

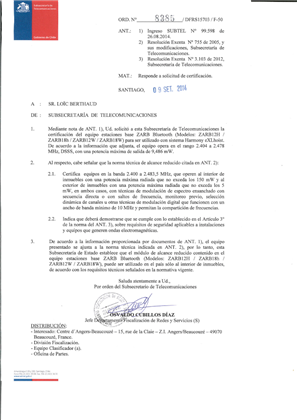

SUBTEL-Certificate-SUBTEL (Chili) Harmony eXLhoist
ZIP

SUBTEL-Certificate-SUBTEL (Chili) Harmony eXLhoist

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB

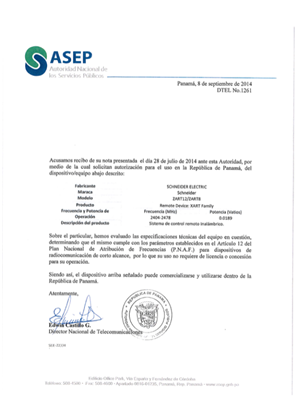

DTEL-Certificate-ASEP (Panama) Harmony eXLhoist
ZIP

DTEL-Certificate-ASEP (Panama) Harmony eXLhoist

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 580.7 KB

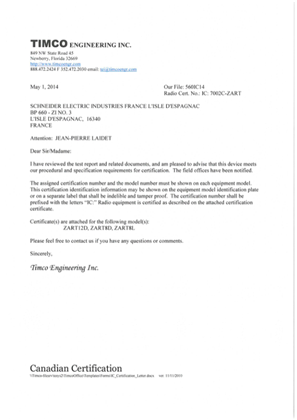

IC RSS-Certificate-RSS (Canada)- Harmony eXLhoist
ZIP

IC RSS-Certificate-RSS (Canada)- Harmony eXLhoist

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 2.9 MB
IFETEL-Certificate-IFETEL_NYCE (Mexico) Harmony eXLhoist
ZIP

IFETEL-Certificate-IFETEL_NYCE (Mexico) Harmony eXLhoist

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 655.3 KB

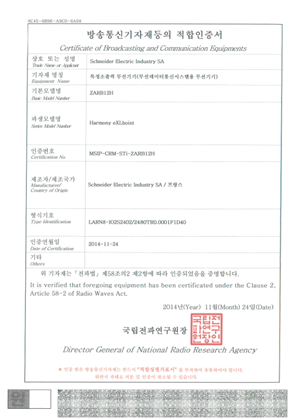

KCC-Certificate-KCC (Korea) Harmony eXLhoist
ZIP

KCC-Certificate-KCC (Korea) Harmony eXLhoist

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 4.6 MB

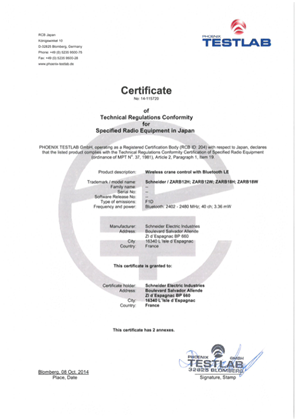

MIC-Certificate-MPT (Japan) - Harmony eXLhoist
