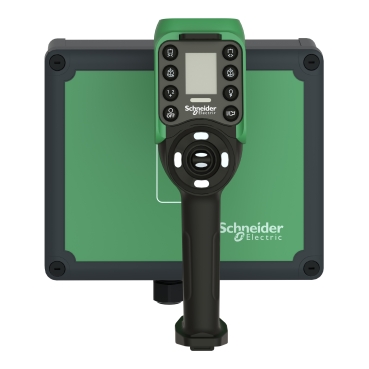

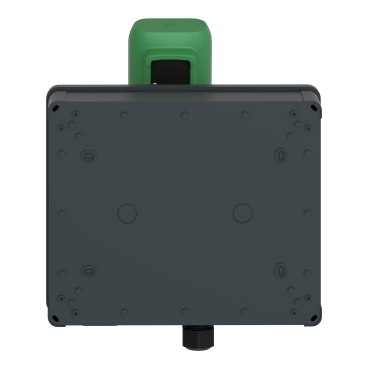

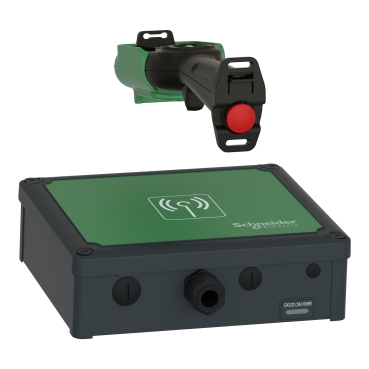

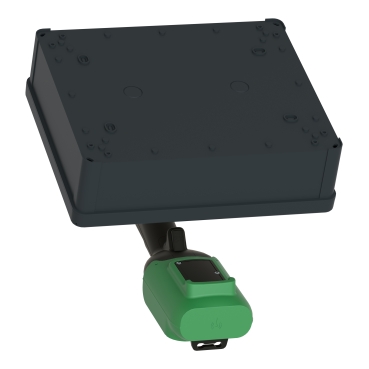

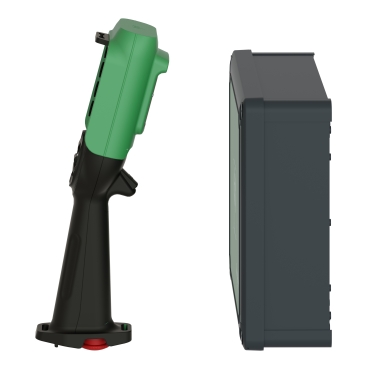

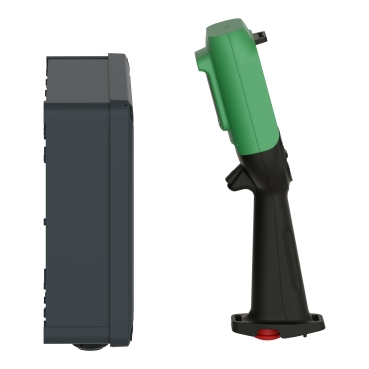

Harmony eXLhoist Standard Xsystem with charger shoulder belt, cable USB/RJ45 and config software

Item Number: XARSK12D18W

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480662430	-

Specifications

Design

Range of product

Harmony eXLhoist

Product or component type

control station

Physical

Number of channels

Operating distance

100 m in free air

Cable entry

cable gland

Communication network type

wireless: bluetooth low energy

Transmission frequency

2.4 GHz

Relative humidity

0...95 % at -20...45 °C storage

Standards

IEC 60204-1 safety
ISO 13849-1 safety
IEC 62061 safety
IEC 61508 safety
ISO 13850 safety
IEC 60204-32 hoisting applications
ETSI EN 301 489-1 radio
ETSI EN 301 489-3 radio
ETSI EN 301 489-17 radio
ETSI EN 300 440-2 radio
ETSI EN 300 328 radio
FCC part 15 radio
RSS GEN issue 3 radio
RSS 210 issue 8 radio
ARIB STD-T81 radio

Product certifications

CE
UL
CSA
C-Tick
JIS
KC
EAC

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1403029EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 2 bare product quantity

Package 1 bare product quantity

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Legacy weee scope

Average percentage of recycled plastic content

0 %

Device short name

XARS

Control station type

wireless

Product specific application

hoisting applications
material handling

Control station application

stop function: SIL 2 maximum (can reach PL d/category 3) conforming to IEC 62061
stop function: SIL 2 maximum (can reach PL d/category 3) conforming to ISO 13849-1
emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to IEC 62061
emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to ISO 13849-1
motion function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061
motion function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1
limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061
limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1

Kit composition

base station
configuration software
cable
remote control
shoulder belt

Radio agreement

ARIB
SRRC
RSS
ANATEL
FCC
ICASA

Electromagnetic compatibility

resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2
resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2
resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

20.000 cm

Package 1 width

29.000 cm

Package 1 length

31.000 cm

Package 1 weight

3.042 kg

Unit type of package 2

S04

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

40.000 cm

Package 2 length

60.000 cm

Package 2 weight

6.820 kg

Total lifecycle carbon footprint

2 145 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

104.6992440945

Carbon footprint of the manufacturing phase [a1 to a3]

105 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.4104757428

Carbon footprint of the distribution phase [a4]

0.4 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.8376433858

Carbon footprint of the installation phase [a5]

0.8 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

2036.6256614052

Carbon footprint of the use phase [b2, b3, b4, b6]

2 037 kg CO2 eq.

Sustainable packaging

Carbon footprint of the end-of-life phase [c1 to c4]

2.1251689108

Carbon footprint of the end-of-life phase [c1 to c4]

2 kg CO2 eq.

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Total lifecycle carbon footprint

2144.6981935391

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Packaging without single use plastic

Scip number

6e438e59-42d1-4633-bfe2-cb5ef607659b

End of life manual availability

ENVEOLI1403029EN

Take-back

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)
