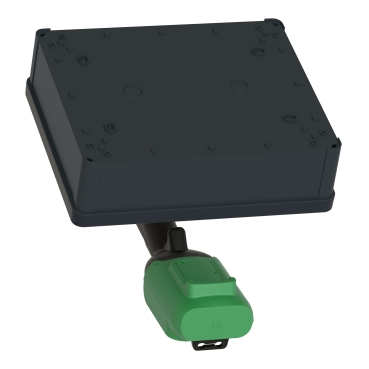

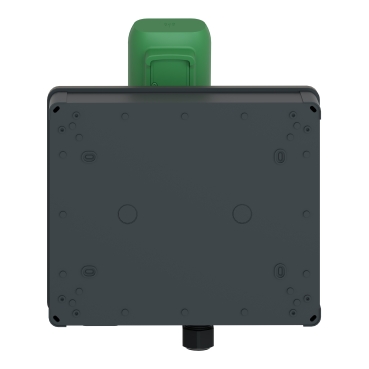

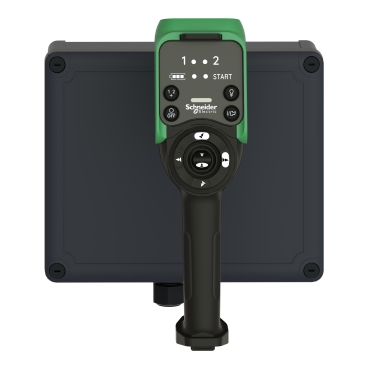

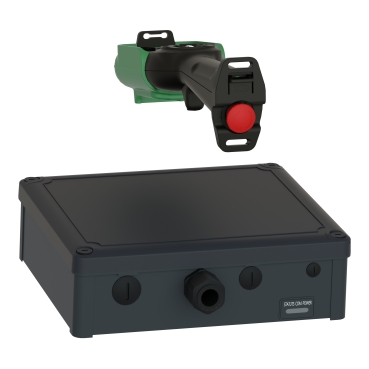

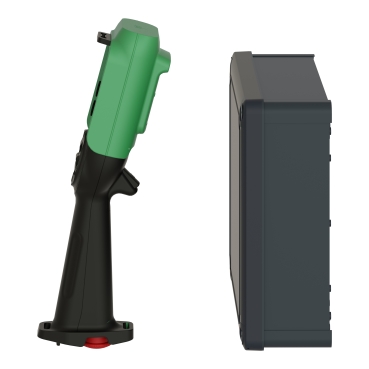

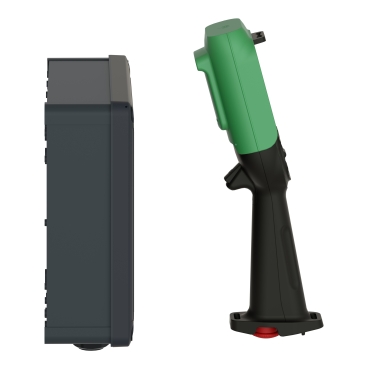

Harmony eXLhoist Standard system with charger, shoulder belt, cable USB/RJ45 and config software

Home ProductsIndustrialHarmonyStandard

Harmony eXLhoist Standard system with charger, shoulder belt, cable USB/RJ45 and config software

Item Number: XARSK8L12H

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony eXLhoist

Product or component type

control station

Physical

Number of channels

50

Operating distance

100 m in free air

Connector type

industrial socket

Cable entry

cable gland

Communication network type

wireless: bluetooth low energy

Transmission frequency

2.4 GHz

Relative humidity

0...95 % at -20...45 °C storage

Standards

  • IEC 60204-1 safety
  • ISO 13849-1 safety
  • IEC 62061 safety
  • IEC 61508 safety
  • ISO 13850 safety
  • IEC 60204-32 hoisting applications
  • ETSI EN 301 489-1 radio
  • ETSI EN 301 489-3 radio
  • ETSI EN 301 489-17 radio
  • ETSI EN 300 440-2 radio
  • ETSI EN 300 328 radio
  • FCC part 15 radio
  • RSS GEN issue 3 radio
  • RSS 210 issue 8 radio
  • ARIB STD-T81 radio

Product certifications

  • CE
  • UL
  • CSA
  • C-Tick
  • JIS
  • KC
  • EAC

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1403029EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Legacy weee scope

In

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

XARS

Control station type

wireless

Product specific application

  • hoisting applications
  • material handling

Control station application

  • stop function: SIL 2 maximum (can reach PL d/category 3) conforming to IEC 62061
  • stop function: SIL 2 maximum (can reach PL d/category 3) conforming to ISO 13849-1
  • emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to IEC 62061
  • emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to ISO 13849-1
  • motion function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061
  • motion function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1
  • limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061
  • limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1

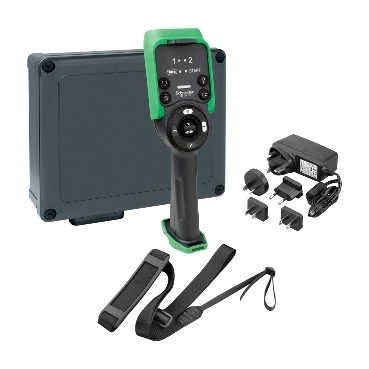

Kit composition

  • cable
  • configuration software
  • shoulder belt
  • remote control
  • base station

Radio agreement

  • SRRC
  • RSS
  • ARIB
  • FCC
  • ANATEL
  • ICASA

Electromagnetic compatibility

  • resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2
  • resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2
  • resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

20.0 cm

Package 1 width

28.7 cm

Package 1 length

30.8 cm

Package 1 weight

3.005 kg

Unit type of package 2

S04

Number of units in package 2

2

Package 2 height

30.0 cm

Package 2 width

40.0 cm

Package 2 length

60.0 cm

Package 2 weight

7.262 kg

Sustainable packaging

No

Scip number

6e438e59-42d1-4633-bfe2-cb5ef607659b

End of life manual availability

ENVEOLI1403029EN

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
