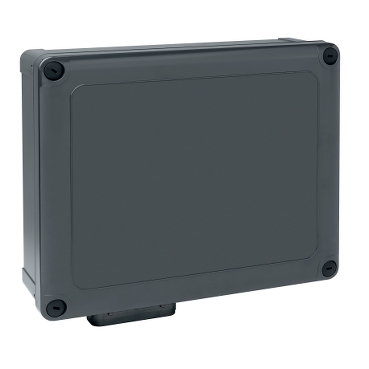

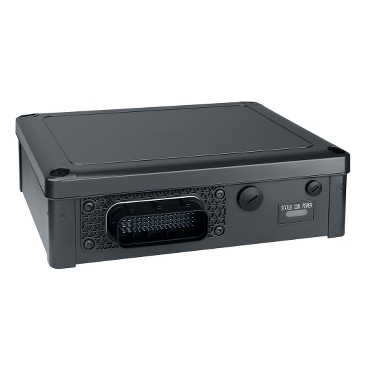

Harmony eXLhoist standard Base station, 12 relay outputs, industrial plug connection, 24...48 V AC/DC

Item Number: ZARB12H

1 PCE 0

Where To Buy

Datasheet

Download

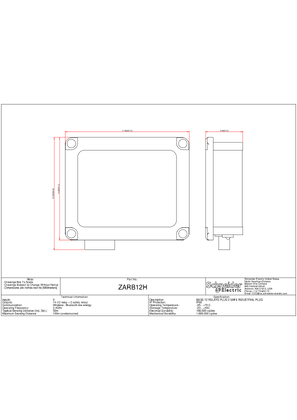

Product Dimensions

Width280 mm

Height305 mm

Depth100 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480610394	-

Specifications

Design

Range of product

Harmony eXLhoist

Product or component type

base station

Physical

Connector type

industrial socket

Cable entry

cable gland

Provided equipment

internal antenna

Communication network type

wireless: bluetooth low energy

Transmission frequency

2.4 GHz

Number of channels

Fixing mode

4 holes

Electrical durability

100000 cycles

Mechanical durability

1000000 cycles

Width

280 mm

Height

305 mm

Depth

100 mm

Net weight

1.45 kg

Ip degree of protection

IP65

Standards

IEC 61000-6-2

Relative humidity

0...97 %

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...70 °C

Product certifications

CE
KC
C-Tick
UL
EAC
CSA

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP1404028EN

Circularity profile

ENVEOLI1404028EN

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

PC (polycarbonate)

Others

Commercial status history

SESA301466
Wed Oct 25 00:50:00 EDT 2023
From Import Local
From 18 to 19

Package 1 bare product quantity

Device short name

ZARB

Product specific application

material handling
hoisting applications

[us] rated supply voltage

24...48 V AC/DC

Vibration resistance

0.075 mm (f = 10-55 Hz)

Shock resistance

15 gn 11 ms

Nominal output current

0.54 A at 48 V AC conforming to IEC 60947-5-1

Number of relays

Relay type

motion relay outputs with 9 NO contact
auxiliary relay outputs with 3 NO contact

Safety outputs

2 NC relay outputs

Switching capacity in va

5 VA DC
26 VA AC

Maximum switching current

6.8 mA

Maximum switching voltage

48 V AC/DC (+/- 20 %)

Maximum sensing distance

100 m in free field

Service life

10 year(s)

Nema degree of protection

NEMA 4

Pollution degree

Electromagnetic compatibility

resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2
resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2
resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3

Radio agreement

ANATEL
RSS
SRRC
ARIB
ICASA
FCC

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

10.2 cm

Package 1 width

29.0 cm

Package 1 length

30.2 cm

Package 1 weight

1.623 kg

Unit type of package 2

S04

Number of units in package 2

Package 2 height

30.0 cm

Package 2 width

40.0 cm

Package 2 length

60.0 cm

Package 2 weight

7.337 kg

Scip number

6e438e59-42d1-4633-bfe2-cb5ef607659b

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
