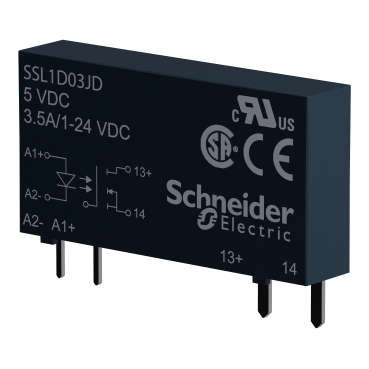

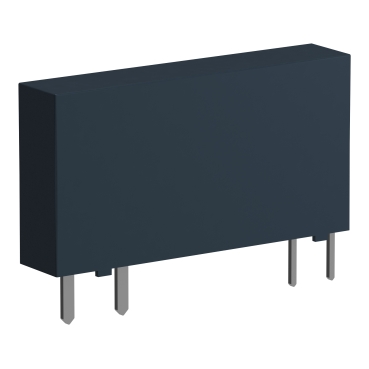

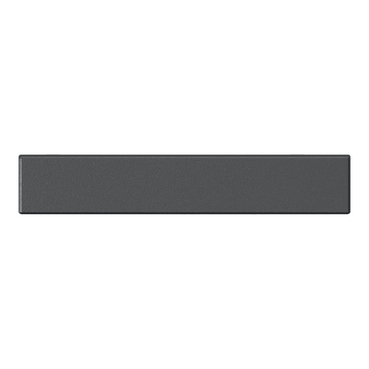

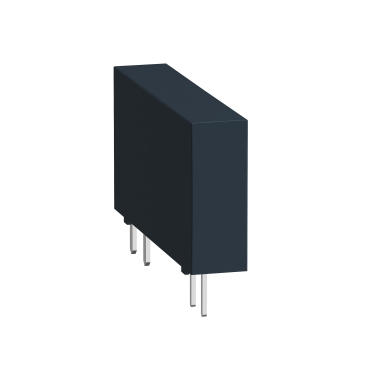

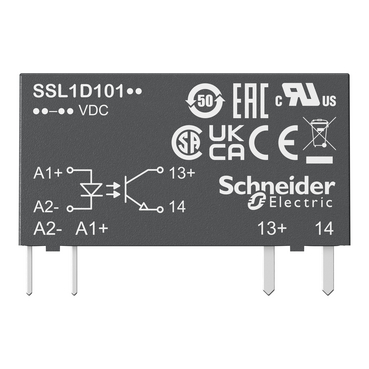

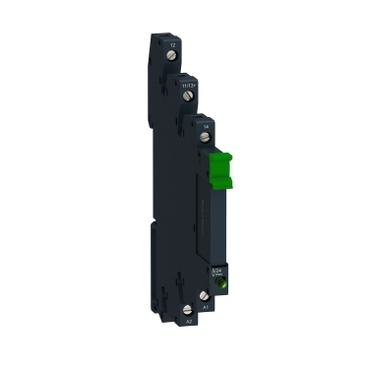

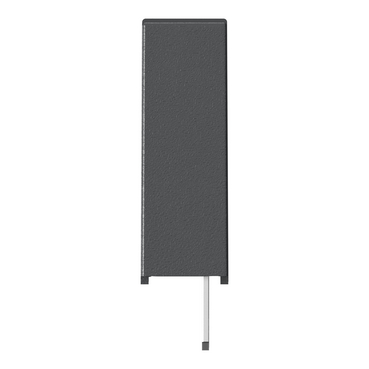

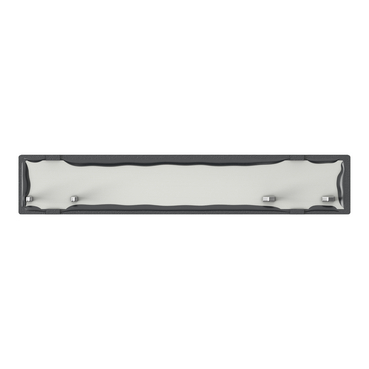

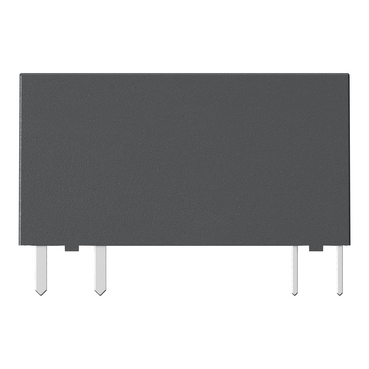

Harmony Solid State Relays Solid state slim relay 3.5A, DC switching, input 3…12V DC, output 1...24V DC

Item Number: SSL1D03JD

1 PCE 0

This Harmony SSL slim interfacing solid state plug-in relay is rated 3.5A, is controlled with a 3V to 12V DC input, has a rated load voltage of 1V to 24V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments.

Where To Buy

Datasheet

Download

Product Dimensions

Width5 mm

Height28 mm

Depth15 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480579646	-
12	CAR	13606480579643	-

Specifications

Design

Product or component type	plug-in relay
Range of product	Harmony Solid State Relays

Physical

Insulation resistance	> 100 MOhm at 500 V DC
Mounting support	socket
[in] rated current	3.5 A
Width	5 mm
Height	28 mm
Depth	15 mm
Net weight	0.0041 kg
Device presentation	complete product
Standards	IEC/EN 60947-1 IEC/EN 62314 UL 508 C22.2 No. 14
Product certifications	cURus CSA EAC CE UKCA
Marking	CE
Ip degree of protection	IP00
Ambient air temperature for operation	-20...80 °C
Ambient air temperature for storage	-20...85 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2504008EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity	1
Legacy weee scope	Out
	At least in Europe
Package 2 bare product quantity	12
Package 3 bare product quantity	1080
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	No
Device short name	SSL
Network number of phases	1 phase
[uc] control circuit voltage	3...12 V
Output switching mode	DC switching
[ui] rated insulation voltage	30 V
Electromagnetic compatibility	electrostatic discharge - test level: 4 kV criteria B (contact discharge) conforming to IEC 61000-4-2 electrostatic discharge - test level: 8 kV criteria B (air discharge) conforming to IEC 61000-4-2 conducted RF disturbances - test level: 10 V criteria A (0.15...80 MHz) conforming to IEC 61000-4-6 radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m criteria A (80 MHz to 1 GHz) conforming to IEC 61000-4-3 radiated radio-frequency electromagnetic field immunity test - test level: 3 V/m criteria A (1.4…6 GHz) conforming to IEC 61000-4-3 electrical fast transient/burst immunity test - test level: 2 kV criteria B (5 kHz) conforming to IEC 61000-4-4 electrical fast transient/burst immunity test - test level: 1 kV criteria B (5 kHz) conforming to IEC 61000-4-4 surge immunity test - test level: 0.5 kV criteria B (line to line) conforming to IEC 61000-4-5 surge immunity test - test level: 1 kV criteria B (line to earth) conforming to IEC 61000-4-5 radiated emission - test level: 30...1000 Mhz conforming to IEC 60947-1 conducted emission - test level: 0.15...30 Mhz conforming to IEC 60947-1
[uimp] rated impulse withstand voltage	3.5 kV for input to case conforming to IEC 62314 3.5 kV for input/output circuit conforming to UL 508 3.5 kV output to case 3.5 kV for input/output circuit conforming to IEC 62314 3.5 kV output to case conforming to IEC 62314 3.5 kV for input to case conforming to UL 508 3.5 kV output to case conforming to UL 508
Output voltage	3...30 V DC
[uc] control circuit voltage	3...12 V DC
Capacitance unbalance	2.5 pF input/output
Minimum switching voltage	3 V DC turn-on
Maximum switching voltage	1 V DC turn-off
Input current	10 mA
Input impedance	500 Ohm
Solid state output type	Mosfet output DC switching
Load current	0.001...3.5 A
Absolute maximum voltage	35 V
Maximum operating frequency	500 Hz
Surge current	9 A for 10 ms
Maximum voltage drop	<0.5 V on-state
Maximum leakage current	0.001 mA off-state
Response time	0.12 ms (turn-on) 0.1 ms (turn-off)
Overvoltage category	III
Flame retardance	V0 conforming to UL 94
Dielectric strength	2500 V for input/output
Pollution degree	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	0.700 cm
Package 1 width	2.500 cm
Package 1 length	37.000 cm
Package 1 weight	4.000 g
Unit type of package 2	BB1
Number of units in package 2	12
Package 2 height	0.700 cm
Package 2 width	2.500 cm
Package 2 length	37.000 cm
Package 2 weight	66.000 g
Unit type of package 3	S01
Number of units in package 3	1080
Package 3 height	15.000 cm
Package 3 width	15.000 cm
Package 3 length	40.000 cm
Package 3 weight	6.226 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	16 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.1248488626
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.000516086
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0000241857
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	15.4512
Carbon footprint of the use phase [b2, b3, b4, b6]	15 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.001020804
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	15.5776099383
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	7
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Environmental Disclosure
Technical illustration
Certificates (MSDS)
eTechPub
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Harmony Solid State Relays Solid state slim relay 3.5A, DC switching, input 3…12V DC, output 1...24V DC

Item Number: SSL1D03JD

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Environmental Disclosure

Technical illustration

Certificates (MSDS)

eTechPub

Declaration of Conformity

Declaration of Conformity (Sustainability)

Solid state relay,Plug-in, 2/3.5A - 3D CAD

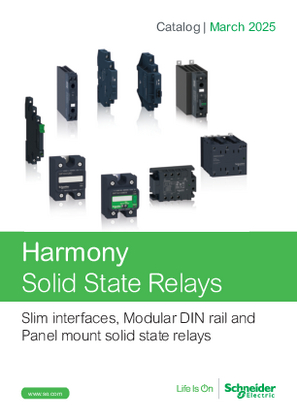

Catalog Harmony Solid State Relays - English

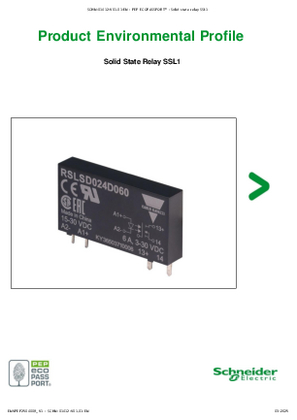

Solid State Relay SSL1

Technical Illustration - Dimensions

CSA Certificate SSL1 SSM1 SSM3 SSP1

UL Recognized SSP1 SSP3 SSM1 SSM2 SSM3 SSD1

UL Recognized SSL1D SSL1A

UL Listed SSD1

English

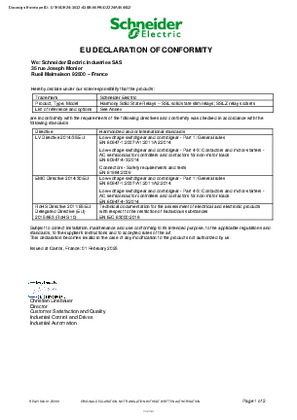

Manufacturer EU DOC SSL1 relays and SSLZ sockets

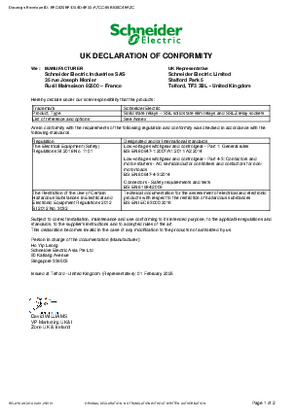

Manufacturer UK DOC SSL1 relays SSLZ sockets
