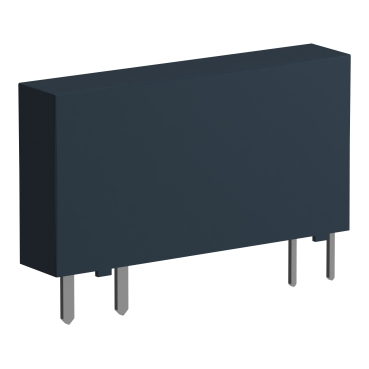

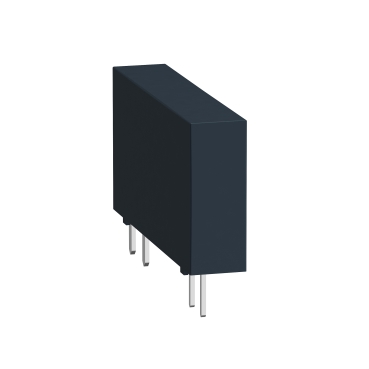

Harmony Solid State Relays Solid state slim relay 0.1A, DC switching, input 16…30V DC, output 1…48V DC

Item Number: SSL1D101BD

1 PCE 0

This Harmony SSL slim interfacing solid state plug-in relay is rated 0.1A, is controlled with a 16V to 30V DC input, has a rated load voltage of 1V to 48V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments.

Where To Buy

Datasheet

Download

Product Dimensions

Width5 mm

Height28 mm

Depth15 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480579684	-
12	CAR	13606480579681	-

Specifications

Design

Product or component type	plug-in relay
Range of product	Harmony Solid State Relays

Physical

Insulation resistance	> 100 MOhm at 500 V DC
Mounting support	socket
[in] rated current	0.1 A
Width	5 mm
Height	28 mm
Depth	15 mm
Net weight	0.0041 kg
Device presentation	complete product
Standards	IEC/EN 60947-1 IEC/EN 62314 UL 508 C22.2 No. 14
Product certifications	cURus CSA EAC CE UKCA
Marking	CE
Ip degree of protection	IP00
Ambient air temperature for operation	-20...80 °C
Ambient air temperature for storage	-20...85 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2504008EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	Out
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Package 1 bare product quantity	1
Package 2 bare product quantity	10
Package 3 bare product quantity	280
Average percentage of recycled plastic content	0 %
Device short name	SSL
Network number of phases	1 phase
[uc] control circuit voltage	16...30 V
Output switching mode	DC switching
[ui] rated insulation voltage	48 V
Electromagnetic compatibility	electrostatic discharge - test level: 4 kV criteria B (contact discharge) conforming to IEC 61000-4-2 electrostatic discharge - test level: 8 kV criteria B (air discharge) conforming to IEC 61000-4-2 conducted RF disturbances - test level: 10 V criteria A (0.15...80 MHz) conforming to IEC 61000-4-6 radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m criteria A (80 MHz to 1 GHz) conforming to IEC 61000-4-3 radiated radio-frequency electromagnetic field immunity test - test level: 3 V/m criteria A (1.4…6 GHz) conforming to IEC 61000-4-3 electrical fast transient/burst immunity test - test level: 2 kV criteria B (5 kHz) conforming to IEC 61000-4-4 electrical fast transient/burst immunity test - test level: 1 kV criteria B (5 kHz) conforming to IEC 61000-4-4 surge immunity test - test level: 0.5 kV criteria B (line to line) conforming to IEC 61000-4-5 surge immunity test - test level: 1 kV criteria B (line to earth) conforming to IEC 61000-4-5 radiated emission - test level: 30...1000 Mhz conforming to IEC 60947-1 conducted emission - test level: 0.15...30 Mhz conforming to IEC 60947-1
[uimp] rated impulse withstand voltage	5.3 kV for input to case conforming to IEC 62314 5.3 kV for input/output circuit conforming to UL 508 5.3 kV output to case 5.3 kV for input/output circuit conforming to IEC 62314 5.3 kV output to case conforming to IEC 62314 5.3 kV for input to case conforming to UL 508 5.3 kV output to case conforming to UL 508
Output voltage	1...48 V DC
[uc] control circuit voltage	16...30 V DC
Capacitance unbalance	2.5 pF input/output
Minimum switching voltage	16 V DC turn-on
Maximum switching voltage	9 V DC turn-off
Input current	5 mA
Input impedance	4500 Ohm
Solid state output type	DC switching transistor output
Load current	0.001...0.1 A
Absolute maximum voltage	60 V
Maximum operating frequency	500 Hz
Surge current	0.3 A for 10 ms
Maximum voltage drop	<1 V on-state
Maximum leakage current	0.001 mA off-state
Response time	0.02 ms (turn-on) 0.13 ms (turn-off)
Overvoltage category	III
Flame retardance	V0 conforming to UL 94
Dielectric strength	3750 V for input/output
Pollution degree	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.900 cm
Package 1 width	0.500 cm
Package 1 length	2.800 cm
Package 1 weight	3.000 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	5.000 cm
Package 2 width	3.000 cm
Package 2 length	12.500 cm
Package 2 weight	52.000 g
Unit type of package 3	S01
Number of units in package 3	280
Package 3 height	15.000 cm
Package 3 width	15.000 cm
Package 3 length	40.000 cm
Package 3 weight	1.707 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.1560610782
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0006451075
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0000302322
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	2.506528
Carbon footprint of the use phase [b2, b3, b4, b6]	3 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.001276005
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	2.6645404229
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	7
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
