Harmony Solid State Relays Solid state modular relay 6A, random switching, input 200…265 V AC, output 24...280 V AC

Item Number: SSM1A16P7R

1 PCE 0

Where To Buy

Datasheet

Download

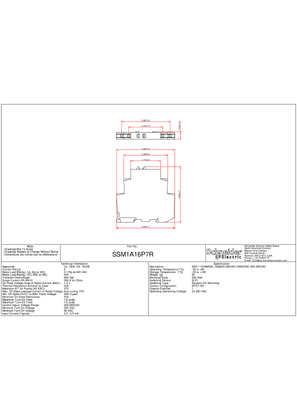

Product Dimensions

Width11 mm

Height90.3 mm

Depth83.7 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480579431	-

Specifications

Design

Range of product	Harmony Relay
Product or component type	solid state relay

Physical

Number of channels	1
Mounting support	symmetrical DIN rail
[in] rated current	6 A
Connections - terminals	screw terminals: 1 x 0.3...1 x 1.5 mm², (22 AWG...16 AWG) for input screw terminals: 1 x 0.3...1 x 2.5 mm², (22 AWG...14 AWG) for output
Insulation resistance	1000 MOhm at 500 V DC
Local signalling	LED (green) for input status
Width	11 mm
Height	90.3 mm
Depth	83.7 mm
Net weight	0.05 kg
Device presentation	complete product
Standards	IEC 61000 IEC 60950-1 IEC 62314
Product certifications	UL CSA
Marking	CE
Ip degree of protection	IP20
Ambient air temperature for operation	-30...80 °C
Ambient air temperature for storage	-30...100 °C
Reach free of svhc	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1307069EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

	At least in Europe
Legacy weee scope	Out
Warranty duration(in months) bmecat	18
Weee label	No
Package 1 bare product quantity	1
Device short name	SSM
Network number of phases	1 phase
Output voltage	24...280 V AC
[uc] control circuit voltage	200...265 V AC
Contacts type and composition	1 NO
Tightening torque	0.5...0.8 N.m for input 0.5...0.8 N.m for output
Capacitance unbalance	10 pF for input/output
Minimum switching voltage	200 V AC turn-on
Maximum switching voltage	90 V AC turn-off
Input current limits	2.5...3.5 mA
Solid state output type	SCR output random voltage switching
Load current	0.15...6 A
Absolute maximum voltage	600 V
Surge current	285 A for 16.6 ms 300 A for 20 ms
Maximum voltage drop	<1.3 V on-state
Motor power hp	0.16 hp 40 °C 240 V AC
Maximum i²t for fusing	410 A².s for 10 ms at 50 Hz 375 A².s for 8.33 ms at 60 Hz
Maximum leakage current	0.1 mA off-state
Dv/dt	500 V/µs off-state at maximum voltage
Response time	30 ms (turn-off) 20 ms (turn-on)
Cos phi	0.5...0.5 (with maximum load)
Overvoltage category	III
Flame retardance	V0 conforming to UL 94
Dielectric strength	4 kV AC for input/output 4 kV AC for input or output to case
Pollution degree	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2 cm
Package 1 width	9 cm
Package 1 length	9 cm
Package 1 weight	74 g
Sustainable packaging	No
End of life manual availability	ENVEOLI1307069EN
Warranty (in months)	18
