Harmony Solid State Relays Solid state modular relay 6A, DIN rail mount, random switching, input 4...32V DC, output 24…280V AC

Item Number: SSM2A16BDR

1 PCE 0

Where To Buy

Datasheet

Download

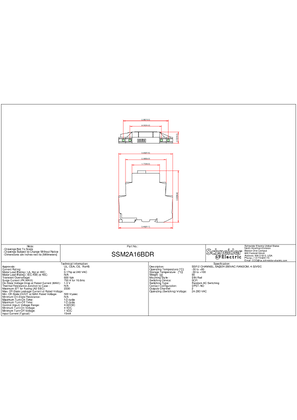

Product Dimensions

Width18 mm

Height90.3 mm

Depth84.4 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480579783	-

Specifications

Design

Range of product	Harmony Solid State Relays
Product or component type	modular DIN rail relay

Physical

Number of channels	2
Mounting support	symmetrical DIN rail
[in] rated current	6 A
Connections - terminals	screw connectors
Connections - terminals	screw terminals: 1 x 0.3...1 x 1.5 mm², (22 AWG...16 AWG) for input screw terminals: 1 x 0.3...1 x 2.5 mm², (22 AWG...14 AWG) for output
Insulation resistance	1000 MOhm at 500 V DC
Local signalling	LED (green) for input status
Marking	CE
Width	18 mm
Height	90.3 mm
Depth	84.4 mm
Control type	without test button
Net weight	0.09 kg
Device presentation	complete product
Standards	IEC 62314 IEC 60950-1 IEC 61000
Product certifications	UL CSA
Ip degree of protection	IP20
Ambient air temperature for operation	-30...80 °C
Ambient air temperature for storage	-30...100 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1307069EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	72
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	No
Device short name	SSM
Network number of phases	1 phase
Product configuration type	relay configuration
Output switching mode	random voltage switching
[uc] control circuit voltage	4...32 V
Output voltage	24...280 V AC
[uc] control circuit voltage	4...32 V DC
Tightening torque	0.5...0.8 N.m for input 0.5...0.8 N.m for output
Dielectric strength	2.5 kV AC for input/output 2.5 kV AC for input or output to case
Capacitance unbalance	10 pF for input/output
Minimum switching voltage	4 V DC turn-on
Maximum switching voltage	1 V DC turn-off
Input current limits	14...16.87 mA
Solid state output type	SCR output random voltage switching
Load current	0.15...6 A
Absolute maximum voltage	600 V
Maximum voltage drop	<1.3 V on-state
Maximum i²t for fusing	2560 A².s for 10 ms at 50 Hz 2330 A².s for 8.33 ms at 60 Hz
Maximum leakage current	0.1 mA off-state
Dv/dt	500 V/µs off-state at maximum voltage
Response time	0.5 cycle (turn-off) 0.1 ms (turn-on)
Cos phi	0.5...0.5 (with maximum load)
Overvoltage category	III
Surge current	715 A for 16.6 ms 750 A for 20 ms
Motor power hp	0.16 hp 40 °C 240 V AC
Flame retardance	V0 conforming to UL 94
Pollution degree	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.8 cm
Package 1 width	2 cm
Package 1 length	9.3 cm
Package 1 weight	102 g
Unit type of package 2	S02
Number of units in package 2	72
Package 2 height	15 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	7.799 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	134201bc-d293-4667-9cca-10a7f11729e0
End of life manual availability	ENVEOLI1307069EN
Take-back	No
Warranty (in months)	18
