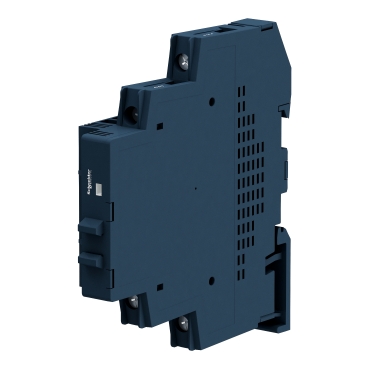

Harmony Solid State Relays Solid state modular relay 12A, DIN rail mount, random switching, input 4...32V DC, output 24...280V AC

Item Number: SSM1A112BDR

1 PCE 0

Where To Buy

Datasheet

Download

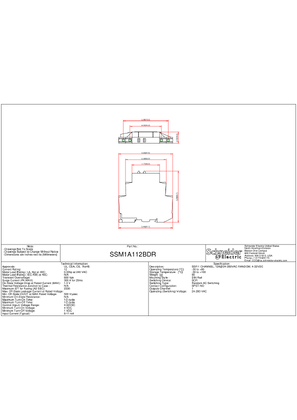

Product Dimensions

Width18.5 mm

Height87.5 mm

Depth83.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480579561	-

Specifications

Design

Range of product	Harmony Solid State Relays
Product or component type	modular DIN rail relay

Physical

Number of channels	1
Connections - terminals	screw connectors
Mounting support	symmetrical DIN rail
[in] rated current	12 A
Connections - terminals	screw terminals: 1 x 0.3...1 x 1.5 mm², (22 AWG...16 AWG) for input screw terminals: 1 x 0.3...1 x 2.5 mm², (22 AWG...14 AWG) for output
Insulation resistance	1000 MOhm at 500 V DC
Local signalling	LED (green) for input status
Width	18.5 mm
Height	87.5 mm
Control type	without test button
Depth	83.5 mm
Net weight	0.075 kg
Device presentation	complete product
Standards	IEC 60950-1 IEC 61000 IEC 62314
Product certifications	UL CSA
Marking	CE
Ip degree of protection	IP20
Ambient air temperature for operation	-30...80 °C
Ambient air temperature for storage	-30...100 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2607159EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	72
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	No
Device short name	SSM
Network number of phases	1 phase
[uc] control circuit voltage	4...32 V
Output switching mode	random voltage switching
Product configuration type	relay configuration
Output voltage	24...280 V AC
[uc] control circuit voltage	4...32 V DC
Tightening torque	0.5...0.8 N.m for input 0.5...0.8 N.m for output
Capacitance unbalance	10 pF for input/output
Minimum switching voltage	4 V DC turn-on
Maximum switching voltage	1 V DC turn-off
Input current limits	9...11 mA
Solid state output type	SCR output random voltage switching
Load current	0.15...12 A
Absolute maximum voltage	600 V
Surge current	715 A for 16.6 ms 750 A for 20 ms
Maximum voltage drop	<1.3 V on-state
Motor power hp	0.33 hp 40 °C 240 V AC
Maximum i²t for fusing	2560 A².s for 10 ms at 50 Hz 2330 A².s for 8.33 ms at 60 Hz
Maximum leakage current	0.1 mA off-state
Dv/dt	500 V/µs off-state at maximum voltage
Response time	0.5 cycle (turn-off)
Cos phi	0.5...0.5 (with maximum load)
Overvoltage category	III
[ui] rated insulation voltage	280 V
Flame retardance	V0 conforming to UL 94
Dielectric strength	4 kV AC for input/output 4 kV AC for input or output to case
Pollution degree	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.500 cm
Package 1 width	9.000 cm
Package 1 length	9.500 cm
Package 1 weight	92.000 g
Unit type of package 2	S02
Number of units in package 2	72
Package 2 height	15 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	7.019 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.48913492675823556
Carbon footprint of the manufacturing phase [a1 to a3]	0.5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0055412578326530125
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0025968938579600765
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.736245435672147
Carbon footprint of the use phase [b2, b3, b4, b6]	4 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.11757301070789315
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	4.351091524828889
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	134201bc-d293-4667-9cca-10a7f11729e0
End of life manual availability	ENVEOLI2607159EN
Take-back	No
Warranty (in months)	18
