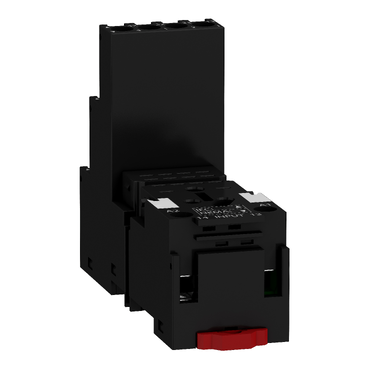

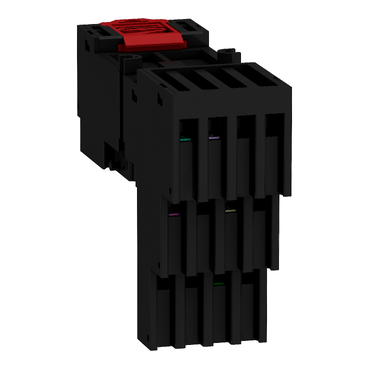

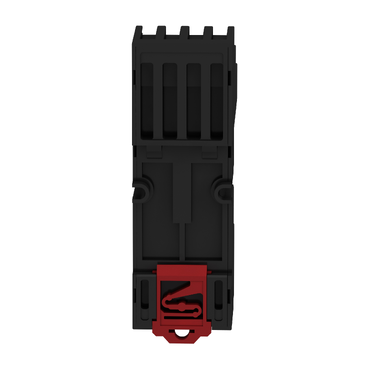

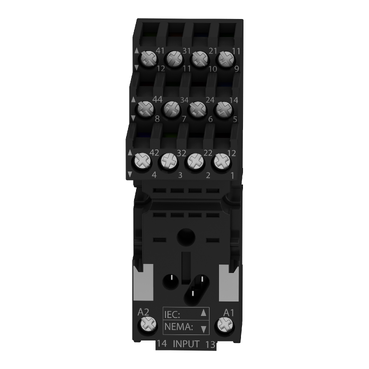

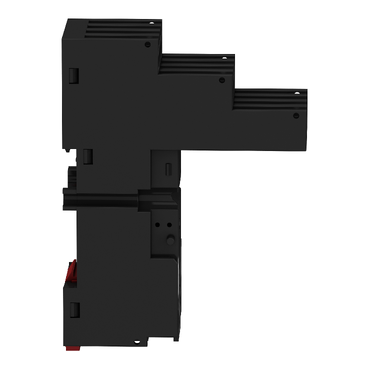

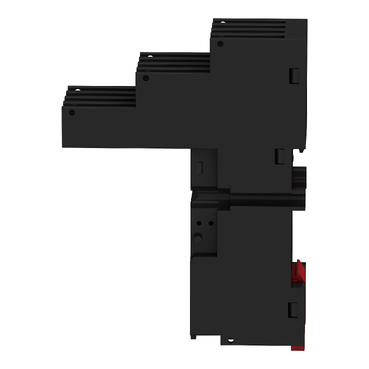

Harmony Timer Relays Socket for RXM2 RXM4 relays screw connectors, separate contact

Home ProductsIndustrialHarmonySocket for RXM2 RXM4 relays

Harmony Timer Relays Socket for RXM2 RXM4 relays screw connectors, separate contact

Item Number: RXZE2S114M

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product compatibility

  • plug-in relay RXM with 2 C/O contact
  • plug-in relay RXM with 4 C/O contact
  • plug-in relay 782H with 4 C/O contact
  • plug-in relay REXL with 2 C/O contact
  • plug-in relay REXL with 4 C/O contact

Range of product

Harmony Timer Relays

Product or component type

socket

Warranty

18 months

Physical

[in] rated current

10 A

[ue] rated operational voltage

  • < 250 V conforming to IEC
  • < 300 V conforming to UL

Connections - terminals

  • screw connectors, 1 x 0.34...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end
  • screw connectors, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end
  • screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
  • screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end

Fixing mode

  • by screw (panel)
  • clip-on (35 mm symmetrical DIN rail)

Wire stripping length

8 mm

Connections - terminals

screw connectors

Sale per indivisible quantity

10

Width

27 mm

Net weight

0.062 kg

Ip degree of protection

IP20 conforming to IEC 60529

Standards

IEC 61984

Product certifications

  • CSA
  • Lloyd's
  • UL

Marking

CE

Ambient air temperature for storage

-40...85 °C

Ambient air temperature for operation

-40...55 °C

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2502014EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

Out

Package 4 bare product quantity

1600

Package 3 bare product quantity

200

Package 2 bare product quantity

10

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Device short name

RXZ

[ith] conventional free air thermal current

10 A

Contacts type and composition

4 C/O

Output type

relay

Tightening torque

< 1 N.m for M3 screw(s)

Shape of pin

flat

Group of product

RXM_4_C/O_CON_SEP_FLAT

Compatibility code

RXZ

Contact terminal arrangement

separate

[uimp] rated impulse withstand voltage

4 kV

Overvoltage category

III

Pollution degree

3

Dielectric strength

2500 V

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.300 cm

Package 1 width

2.700 cm

Package 1 length

8.000 cm

Package 1 weight

64.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

6.800 cm

Package 2 width

11.500 cm

Package 2 length

14.000 cm

Package 2 weight

679.000 g

Unit type of package 3

S03

Number of units in package 3

200

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

13.833 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.9 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.6804222615

Carbon footprint of the manufacturing phase [a1 to a3]

0.7 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0337385159

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.008299576

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.189754417

Carbon footprint of the end-of-life phase [c1 to c4]

0.2 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.9122147703

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
