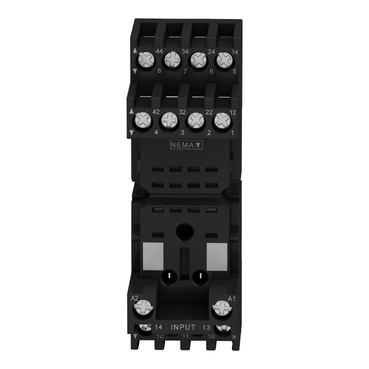

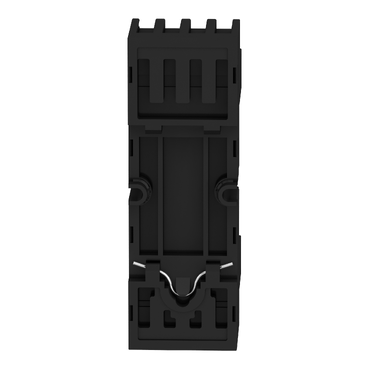

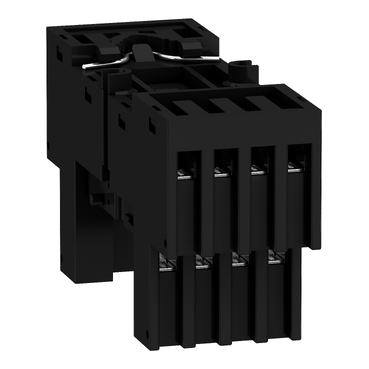

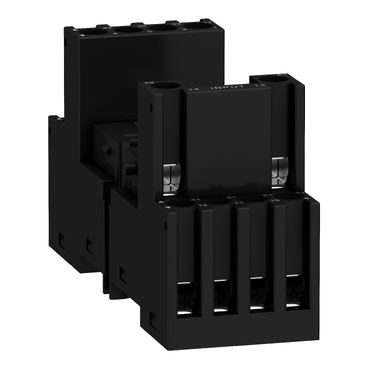

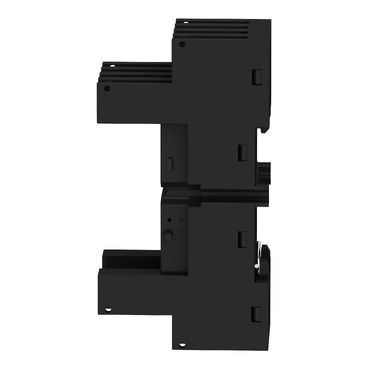

Harmony Timer Relays, Socket for RXM2 RXM4 relays, screw connectors, mixed contact

Home ProductsIndustrialHarmonySocket for RXM2 RXM4 relays

Harmony Timer Relays, Socket for RXM2 RXM4 relays, screw connectors, mixed contact

Item Number: RXZE2M114M

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays|Harmony Timer Relays

Product or component type

socket

Product compatibility

plug-in relay RXM with 2 C/O contact|plug-in relay RXM with 4 C/O contact

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[in] rated current

10 A

[ue] rated operational voltage

< 250 V conforming to IEC|< 300 V conforming to UL

Connections - terminals

screw connectors

Connections - terminals

connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end|connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end|connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end|connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end

Fixing mode

by screw (panel)|clip-on (35 mm symmetrical DIN rail)

Sale per indivisible quantity

10

Width

27 mm

Net weight

0.056 kg

Ip degree of protection

IP20 conforming to IEC 60529

Standards

IEC 61984

Product certifications

UL|CSA|Lloyd's

Marking

CE

Ambient air temperature for storage

-40...85 °C

Ambient air temperature for operation

-40...55 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1511021EN

Circularity profile

N/A

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Device short name

RXZ

Contacts type and composition

4 C/O

[ith] conventional free air thermal current

10 A

Output type

relay

Shape of pin

flat

Contact terminal arrangement

mixed

Tightening torque

< 1 N.m for M3 screw(s)

[uimp] rated impulse withstand voltage

4 kV

Overvoltage category

III

Pollution degree

3

Group of product

RXM_2-4_C/O_CON_MIX_FLAT

Compatibility code

RXZ

Dielectric strength

3000 V

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.686 cm

Package 1 width

4.245 cm

Package 1 length

7.918 cm

Package 1 weight

0.054 kg

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

7.5 cm

Package 2 width

8.8 cm

Package 2 length

14.0 cm

Package 2 weight

0.561 kg

Unit type of package 3

S03

Number of units in package 3

230

Package 3 height

30.0 cm

Package 3 width

30.0 cm

Package 3 length

40.0 cm

Package 3 weight

12.42 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
