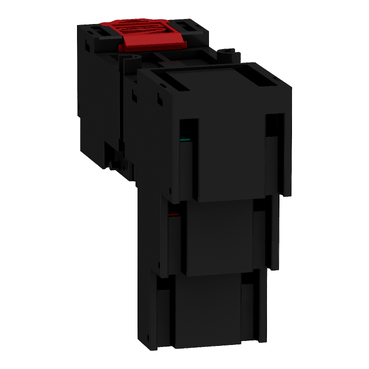

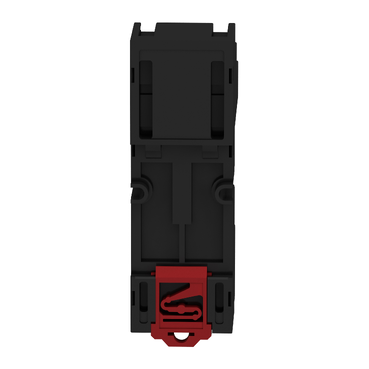

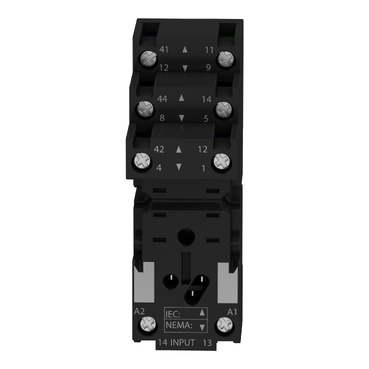

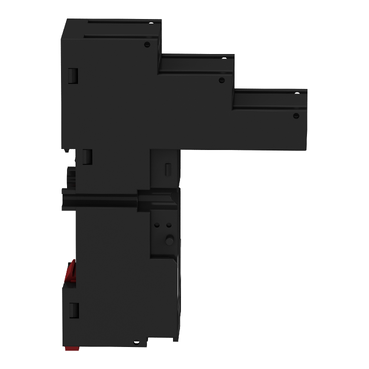

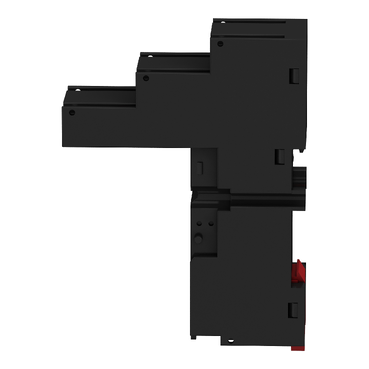

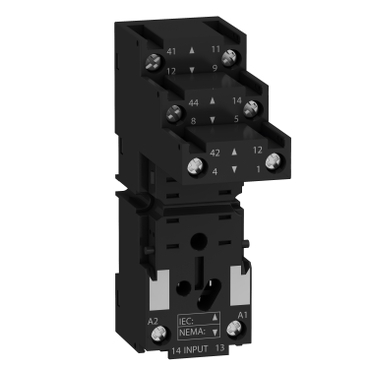

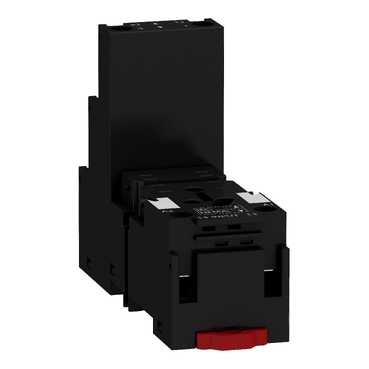

Harmony Timer Relays Socket for RXM2 relays screw connectors, separate contact

Home ProductsIndustrialHarmonySocket for RXM2 relays

Harmony Timer Relays Socket for RXM2 relays screw connectors, separate contact

Item Number: RXZE2S108M

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product compatibility

  • plug-in relay RXM with 2 C/O contact
  • plug-in relay REXL with 2 C/O contact

Range of product

  • Harmony Electromechanical Relays
  • Harmony Timer Relays

Product or component type

socket

Warranty

18 months

Physical

[in] rated current

12 A

[ue] rated operational voltage

  • < 250 V conforming to IEC
  • < 300 V conforming to UL

Connections - terminals

  • screw connectors, 1 x 0.34...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end
  • screw connectors, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end
  • screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
  • screw connectors, 2 x 0.25...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end

Fixing mode

  • by screw (panel)
  • clip-on (35 mm symmetrical DIN rail)

Wire stripping length

8 mm

Connections - terminals

screw connectors

Sale per indivisible quantity

10

Width

27 mm

Net weight

0.048 kg

Ip degree of protection

IP20 conforming to IEC 60529

Standards

IEC 61984

Product certifications

  • CSA
  • Lloyd's
  • UL

Marking

CE

Ambient air temperature for storage

-40...85 °C

Ambient air temperature for operation

-40...55 °C

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1511021EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory, kit or spare part - derogation applied

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Package 3 bare product quantity

200

Package 4 bare product quantity

1600

Average percentage of recycled plastic content

0 %

Legacy weee scope

Out

Substance regulation data deliverable

Yes

At least in Europe

Weee label

No

Device short name

RXZ

[ith] conventional free air thermal current

12 A

Output type

relay

Contacts type and composition

2 C/O

Tightening torque

< 1 N.m for M3 screw(s)

Shape of pin

flat

Group of product

RXM_2_C/O_CON_SEP_FLAT

Compatibility code

RXZ

Contact terminal arrangement

separate

[uimp] rated impulse withstand voltage

4 kV

Overvoltage category

III

Pollution degree

3

Dielectric strength

2500 V

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.100 cm

Package 1 width

2.700 cm

Package 1 length

7.500 cm

Package 1 weight

49.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

6.900 cm

Package 2 width

11.500 cm

Package 2 length

14.300 cm

Package 2 weight

531.000 g

Unit type of package 3

S03

Number of units in package 3

200

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

10.955 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.6 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.38177045515926616

Carbon footprint of the manufacturing phase [a1 to a3]

0.4 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.03994388199520318

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0002885990912672079

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.1333272820161698

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.5553302182619063

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • Technical illustration

  • Certificates (MSDS)

  • eTechPub

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Zelio Relay - 3D CAD
ZIP

Zelio Relay - 3D CAD

VERSION

1.0

DATE

29 Jan 2022

REVISION

1.0

DOWNLOAD (ZIP) 771.2 KB
Harmony Electromechanical Relays Catalog - EN
ZIP

Harmony Electromechanical Relays Catalog - EN

VERSION

1.0

DATE

07 Oct 2025

REVISION

1.0
Discover Harmony Timer Relays Catalog - English
ZIP

Discover Harmony Timer Relays Catalog - English

VERSION

12.2

DATE

07 Mar 2025

REVISION

12.2

DOWNLOAD (ZIP) 10.6 MB
Simple Socket RXZE2-Mixed Contact
ZIP

Simple Socket RXZE2-Mixed Contact

VERSION

1.0

DATE

16 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 247.3 KB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

1.0

DATE

02 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 523.4 KB
Lloyds Register - Zelio Relay RXM RXZE relays and sockets
ZIP

Lloyds Register - Zelio Relay RXM RXZE relays and sockets

VERSION

1.0

DATE

16 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 784.2 KB
LR Type Approval Certificate RXM relays and RXZE RXZE14P sockets
ZIP

LR Type Approval Certificate RXM relays and RXZE RXZE14P sockets

VERSION

1.0

DATE

19 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.4 MB
CSA Certificate RPZF, RUZC, RUZSC, RUZSF, RXZE2, RUW, RXM02, RXM04
ZIP

CSA Certificate RPZF, RUZC, RUZSC, RUZSF, RXZE2, RUW, RXM02, RXM04

VERSION

1.0

DATE

01 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 976.1 KB
UL Recognized RPZF RUZ RXZE2 RSLZ
ZIP

UL Recognized RPZF RUZ RXZE2 RSLZ

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 789.3 KB

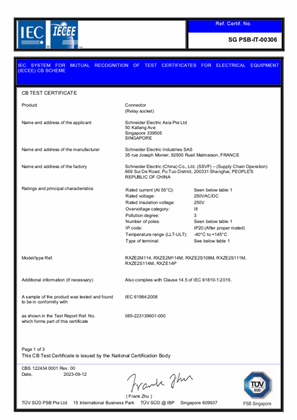

IECEE CB Certificates Harmony Relays (RXM*AB/RXM*GB) and Sockets (RXZE)
