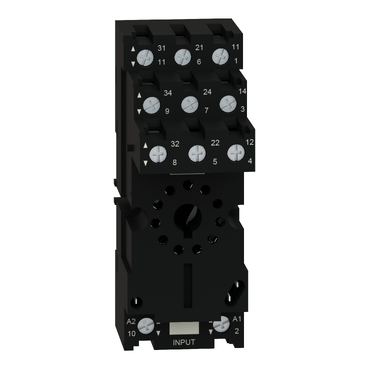

Harmony Electromechanical Relays Socket for RUMC3 relays, 12A, screw connectors, separate contact

Item Number: RUZSC3M

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389119403238	-
10	CAR	13389119403235	-

Specifications

Design

Range of product	Harmony Electromechanical Relays
Product or component type	socket
Product compatibility	plug-in relay RUM with 3 C/O contact
Warranty	18 months

Physical

[ue] rated operational voltage	< 250 V
[in] rated current	12 A
Connections - terminals	connector, 1 x 0.25...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end connector, 2 x 0.25...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end connector, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end connector, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end
Fixing mode	by screw (panel) clip-on (35 mm symmetrical DIN rail)
Connections - terminals	screw connectors
Sale per indivisible quantity	10
Width	36 mm
Net weight	0.1 kg
Ip degree of protection	IP20 conforming to IEC 60529
Standards	IEC 61984
Product certifications	CSA UL
Marking	CE
Ambient air temperature for storage	-40...85 °C
Ambient air temperature for operation	-40...55 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1511021EN
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	10
Package 3 bare product quantity	80
Package 4 bare product quantity	640
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Device short name	RUZ
[ith] conventional free air thermal current	12 A
Contacts type and composition	3 C/O
Group of product	RUM_3_C/O_CON_SEP_CYL
Shape of pin	cylindrical
Compatibility code	RUZ
Tightening torque	< 1 N.m for M3.5 screw(s)
Contact terminal arrangement	separate
[uimp] rated impulse withstand voltage	4 kV
Overvoltage category	III
Pollution degree	3
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.500 cm
Package 1 width	6.500 cm
Package 1 length	9.600 cm
Package 1 weight	83.000 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	10.500 cm
Package 2 width	11.000 cm
Package 2 length	18.200 cm
Package 2 weight	879.000 g
Unit type of package 3	S03
Number of units in package 3	80
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	7.611 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
