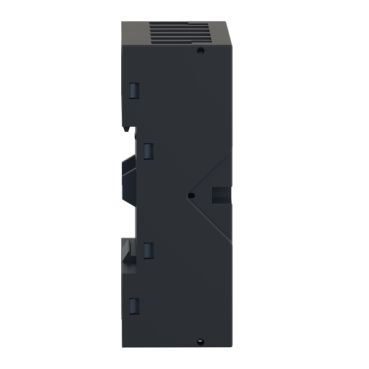

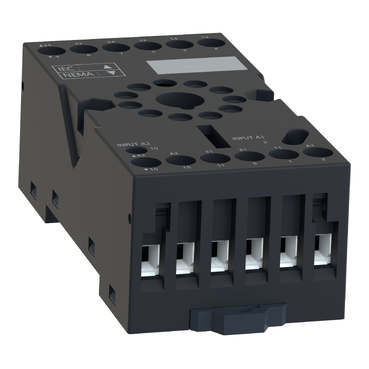

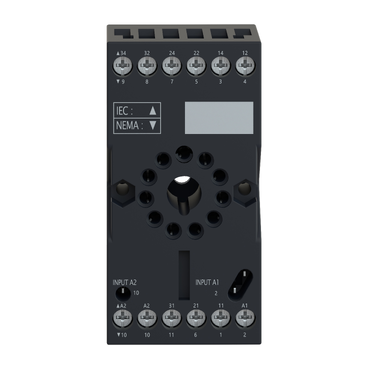

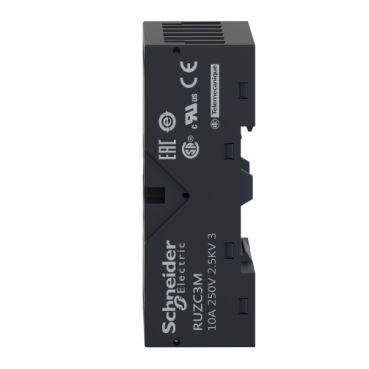

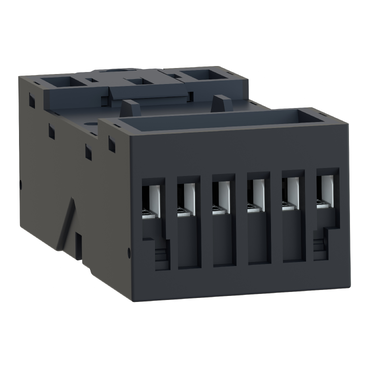

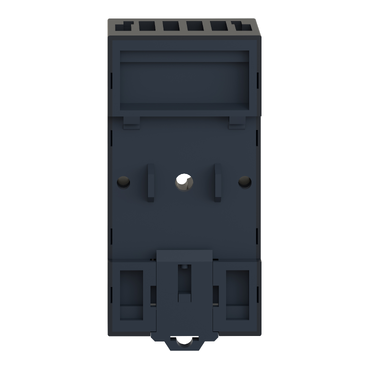

Harmony Timer Relays Socket for RUMC3 relays 10A, screw connectors, mixed contact

Item Number: RUZC3M

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389119403207	-

Specifications

Design

Range of product	Harmony Electromechanical Relays Harmony Timer Relays
Product or component type	socket
Product compatibility	plug-in relay RUM with 3 C/O contact plug-in relay RE48A with 2 C/O contact
Warranty	18 months

Physical

[ue] rated operational voltage	< 250 V
[in] rated current	10 A
Connections - terminals	connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end
Fixing mode	by screw (panel) clip-on (35 mm symmetrical DIN rail)
Connections - terminals	screw connectors
Sale per indivisible quantity	10
Width	38 mm
Net weight	0.054 kg
Ip degree of protection	IP20 conforming to IEC 60529
Standards	IEC 61984
Product certifications	CSA UL
Marking	CE
Ambient air temperature for storage	-40...85 °C
Ambient air temperature for operation	-40...55 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2506025EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	10
Legacy weee scope	Out
	At least in Europe
Package 3 bare product quantity	200
Package 4 bare product quantity	1600
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	No
Device short name	RUZ
Output type	relay
[ith] conventional free air thermal current	10 A
Contacts type and composition	3 C/O
Group of product	RUM_3_C/O_CON_MIX_CYL
Shape of pin	cylindrical
Compatibility code	RUZ
Tightening torque	< 1 N.m for M3.5 screw(s)
Contact terminal arrangement	mixed
[uimp] rated impulse withstand voltage	4 kV
Overvoltage category	III
Pollution degree	3
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.700 cm
Package 1 width	3.800 cm
Package 1 length	7.800 cm
Package 1 weight	57.000 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	8.300 cm
Package 2 width	8.400 cm
Package 2 length	14.600 cm
Package 2 weight	618.000 g
Unit type of package 3	S03
Number of units in package 3	200
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	12.600 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.6 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.5383042533
Carbon footprint of the manufacturing phase [a1 to a3]	0.5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.007225308
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0004294353
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.0053668097
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.5513258063
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
