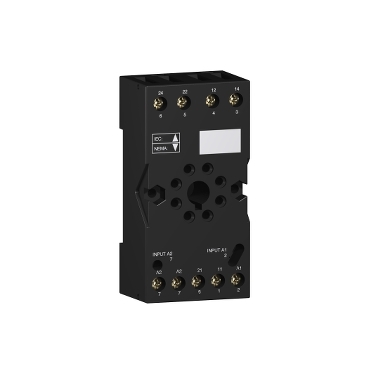

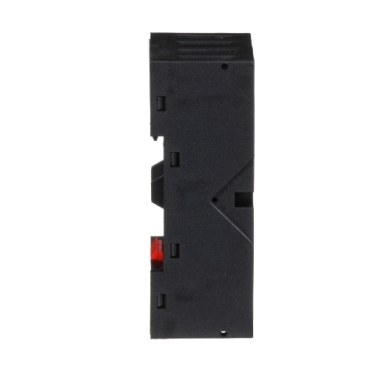

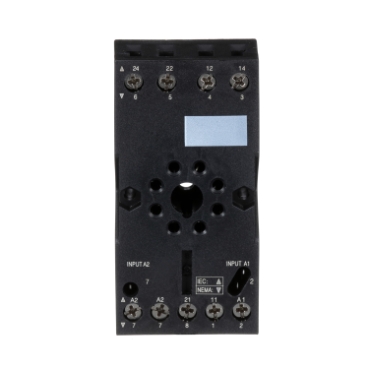

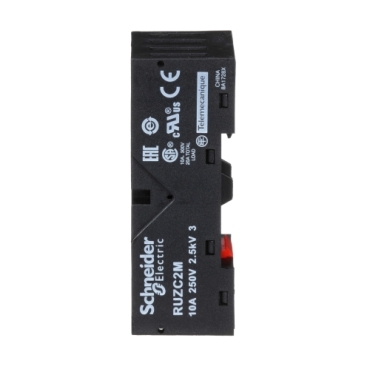

Harmony Timer Relays Socket for RUMC2 relays 10A, screw connectors, mixed contact

Item Number: RUZC2M

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389119403214	-
10	CAR	13389119403211	-

Specifications

Design

Range of product	Harmony Electromechanical Relays Harmony Timer Relays
Product or component type	socket
Product compatibility	plug-in relay RUM with 2 C/O contact plug-in relay RE48 with 2 C/O contact plug-in relay RE48 with 1 C/O + 1 C/O contact
Warranty	18 months

Physical

[ue] rated operational voltage	< 250 V
[in] rated current	10 A
Connections - terminals	connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end

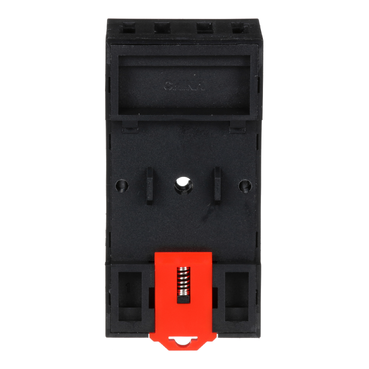

Fixing mode	by screw (panel) clip-on (35 mm symmetrical DIN rail)
Connections - terminals	screw connectors
Sale per indivisible quantity	10
Width	38 mm
Net weight	0.054 kg
Ip degree of protection	IP20 conforming to IEC 60529
Standards	IEC 61984
Product certifications	UL CSA
Marking	CE
Ambient air temperature for storage	-40...85 °C
Ambient air temperature for operation	-40...55 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2506025EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	At least in Europe
Package 4 bare product quantity	1600
Package 3 bare product quantity	200
Package 2 bare product quantity	10
Warranty duration(in months) bmecat	18
Weee label	No
Device short name	RUZ
Output type	relay
[ith] conventional free air thermal current	10 A
Contacts type and composition	2 C/O
Group of product	RUM_2_C/O_CON_MIX_CYL
Shape of pin	cylindrical
Compatibility code	RUZ
Tightening torque	< 1 N.m for M3.5 screw(s)
Contact terminal arrangement	mixed
[uimp] rated impulse withstand voltage	4 kV
Overvoltage category	III
Pollution degree	3
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.800 cm
Package 1 width	3.800 cm
Package 1 length	8.000 cm
Package 1 weight	50.000 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	8.500 cm
Package 2 width	8.500 cm
Package 2 length	14.500 cm
Package 2 weight	543.000 g
Unit type of package 3	S03
Number of units in package 3	200
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	11.420 kg
Total lifecycle carbon footprint	2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.9782195179838664
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.02827704022252274
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.007166332752655045
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.07914457862828805
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	2.092807469587332
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
