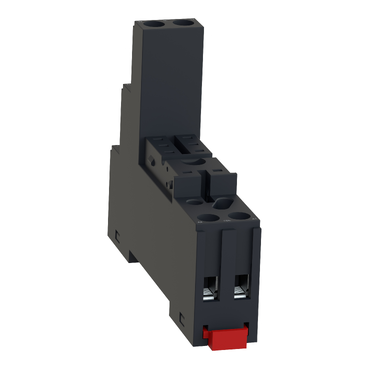

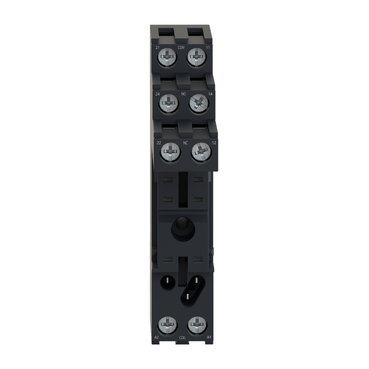

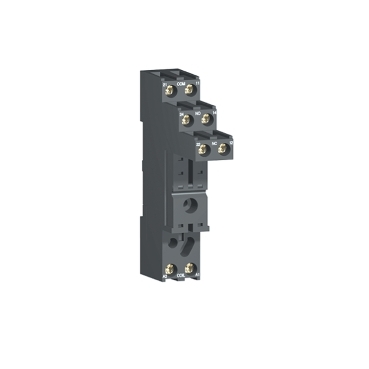

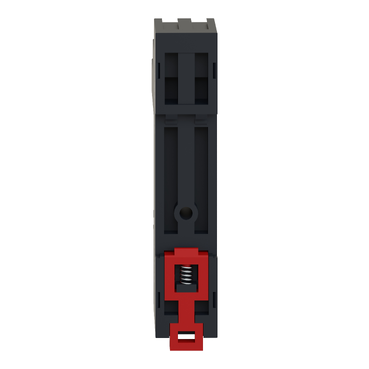

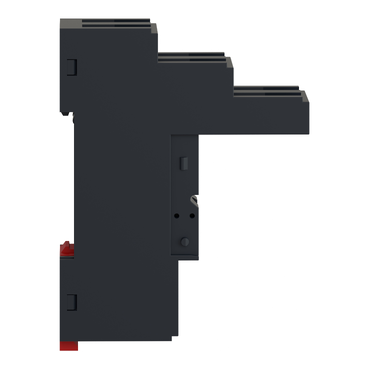

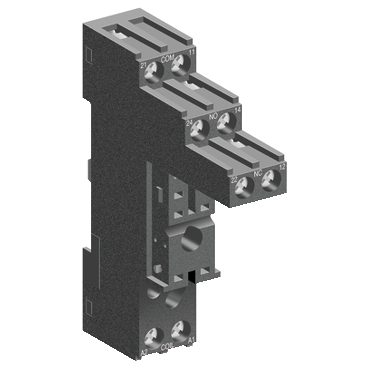

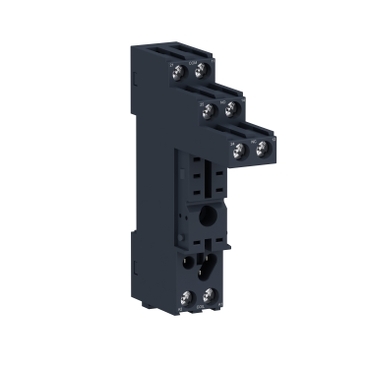

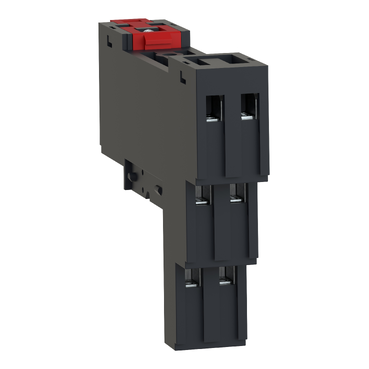

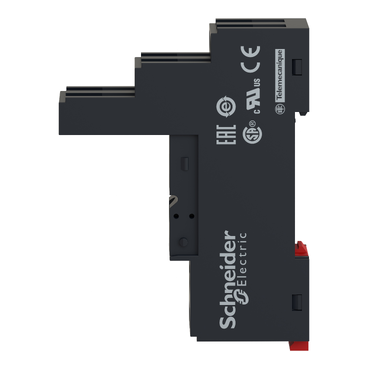

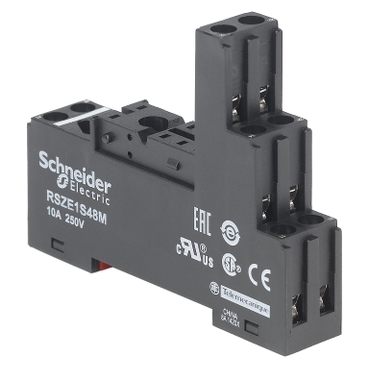

Harmony Electromechanical Relays Socket for RSB1A RSB2A relays, 10A, screw connectors, separate contact

Home ProductsIndustrialHarmonySocket

Harmony Electromechanical Relays Socket for RSB1A RSB2A relays, 10A, screw connectors, separate contact

Item Number: RSZE1S48M

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

socket

Product compatibility

  • plug-in relay RSB with 2 C/O contact at 8 A
  • plug-in relay RSB with 1 C/O contact at 16 A

Warranty

18 months

Physical

[in] rated current

10 A

[ue] rated operational voltage

< 250 V AC

Connections - terminals

screw connectors

Connections - terminals

  • screw connectors, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end
  • screw connectors, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end
  • screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
  • screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end

Fixing mode

  • by screw (panel)
  • clip-on (35 mm symmetrical DIN rail)

Sale per indivisible quantity

10

Width

15.5 mm

Net weight

0.05 kg

Ip degree of protection

IP20 conforming to IEC 60529

Standards

IEC 61984

Product certifications

  • CSA
  • UL

Marking

CE

Ambient air temperature for storage

-40...85 °C

Ambient air temperature for operation

-25...85 °C

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2502016EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

Eu rohs directive

Compliant

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 2 bare product quantity

10

Package 3 bare product quantity

240

Package 4 bare product quantity

1920

Package 1 bare product quantity

1

Legacy weee scope

Out

Warranty duration(in months) bmecat

18

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Device short name

RSZ

Contacts type and composition

2 C/O

[ith] conventional free air thermal current

10 A

Shape of pin

flat

Contact terminal arrangement

separate

Group of product

RSB_1_C/O_SC_CONS_SEP_FLAT_16

Compatibility code

RSZ

Tightening torque

< 0.8 N.m for M3 screw(s)

[uimp] rated impulse withstand voltage

3.6 kV

Overvoltage category

III

Pollution degree

3

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.700 cm

Package 1 width

6.200 cm

Package 1 length

8.000 cm

Package 1 weight

39.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

7.000 cm

Package 2 width

9.000 cm

Package 2 length

17.000 cm

Package 2 weight

428.000 g

Unit type of package 3

S03

Number of units in package 3

240

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

10.575 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.5 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.5181902811

Carbon footprint of the manufacturing phase [a1 to a3]

0.5 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0064511264

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0004519456

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.0077089927

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.5328023459

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

China rohs label

1

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • Installation Instruction

  • Technical illustration

  • Certificates (MSDS)

  • eTechPub

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Socket RSZ - separate contact - < 250 V AC - screw connector - 3D CAD
ZIP

Socket RSZ - separate contact - < 250 V AC - screw connector - 3D CAD

VERSION

1.0

DATE

29 Jan 2022

REVISION

1.0

DOWNLOAD (ZIP) 713 KB
Harmony Electromechanical Relays Catalog - EN
ZIP

Harmony Electromechanical Relays Catalog - EN

VERSION

1.0

DATE

19 Jan 2026

REVISION

1.0
RGZE SEPARATED CONN SOCKET FOR RXG1/2
ZIP

RGZE SEPARATED CONN SOCKET FOR RXG1/2

VERSION

1.0

DATE

30 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 242.6 KB

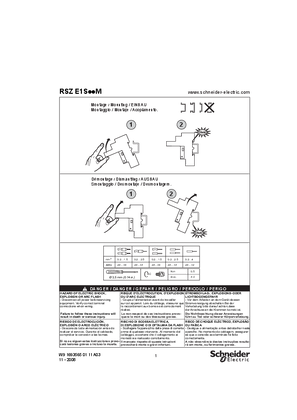

RSZE1S..M Mounting and dismantling, relays sub-bases
