Harmony Solid State Relays Socket equipped with LED and protection circuit for SSL relays, spring terminals, 5 24V DC

Home ProductsIndustrialHarmonySocket equipped with LED and protection circuit

Harmony Solid State Relays Socket equipped with LED and protection circuit for SSL relays, spring terminals, 5 24V DC

Item Number: SSLZRA1

"This Harmony SSL socket for solid state slim interfacing relay has spring terminals and a rated voltage of 5V DC." "It also offers clear circuit labelling on the sides to facilitate installation and maintenance." "It features a visual indicator LED for a simpler troubleshooting and commissioning." "Its clear schematic on the side of the socket enables easier wiring and maintenance."

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width6.2 mm

Height icon

Height103 mm

Depth icon

Depth78.6 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Solid State Relays

Product or component type

socket for SSL1

Product compatibility

  • solid state relay SSL with NO contact at 24 V DC
  • solid state relay SSL with NO contact at 5 V DC

Physical

[in] rated current

6 A

[ue] rated operational voltage

< 250 V DC

Connections - terminals

spring terminals

Connections - terminals

  • spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) solid without cable end
  • spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end

Fixing mode

clip-on (35 mm DIN rail)

Sale per indivisible quantity

10

Local signalling

LED (green) for input status

Width

6.2 mm

Height

103 mm

Depth

78.6 mm

Net weight

0.0285 kg

Standards

IEC 61984

Product certifications

  • UL 508
  • CSA C22-2 No 14

Marking

CE

Ambient air temperature for storage

-40...85 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP20

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2504008EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Average percentage of recycled plastic content

0 %

At least in Europe

Package 3 bare product quantity

300

Weee label

No

Device short name

SSLZ

[ith] conventional free air thermal current

6 A

[uc] control circuit voltage

  • 5 V
  • 24 V

Switching voltage

  • 5 V DC
  • 24 V DC

Shape of pin

flat

Contact terminal arrangement

separate

Compatibility code

SSLZ

Clamping force

10...40 N

[uimp] rated impulse withstand voltage

3.6 kV

Overvoltage category

III

Pollution degree

3

Group of product

SSL_NO_SEP_FLAT_SPRING_5-24

Flame retardance

V0 conforming to UL 94

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.600 cm

Package 1 width

8.000 cm

Package 1 length

10.500 cm

Package 1 weight

23.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

8.500 cm

Package 2 width

7.100 cm

Package 2 length

10.700 cm

Package 2 weight

252.000 g

Unit type of package 3

S03

Number of units in package 3

300

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

8.280 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.3 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.2855057511

Carbon footprint of the manufacturing phase [a1 to a3]

0.3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0030319833

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0003437274

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.0037729418

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.2926544036

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

ENVEOLI1405004EN

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

  • Technical illustration

  • Technical Drawing

  • eTechPub

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
CAD file (on TraceParts) for SSLZRA1: Solid State Slim Socket
ZIP

CAD file (on TraceParts) for SSLZRA1: Solid State Slim Socket

VERSION

1.0

DATE

17 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 914.6 KB
SSLZRA1_CAD
ZIP

SSLZRA1_CAD

VERSION

1.0

DATE

06 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 910.2 KB
Catalog Harmony Solid State Relays - English
ZIP

Catalog Harmony Solid State Relays - English

VERSION

8.0

DATE

28 Mar 2025

REVISION

8.0

DOWNLOAD (ZIP) 12.7 MB
Solid State Relay SSL1
ZIP

Solid State Relay SSL1

VERSION

1.0

DATE

30 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 449.3 KB
ZELIO Relays - SSLZ… Solid State Relays Socket , RSLZ… Relays Socket, Product End-of-Life Instructions
ZIP

ZELIO Relays - SSLZ… Solid State Relays Socket , RSLZ… Relays Socket, Product End-of-Life Instructions

VERSION

1.0

DATE

17 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 117.3 KB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

1.0

DATE

02 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 496.9 KB

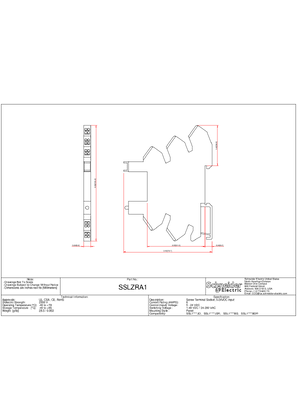

SSLZRA1_2D_Drwng_PDF
