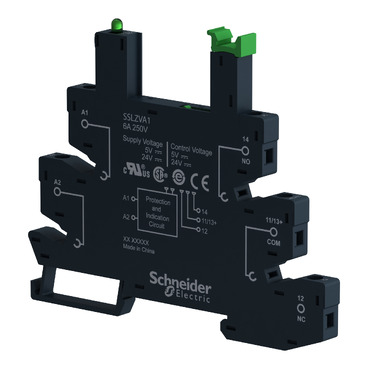

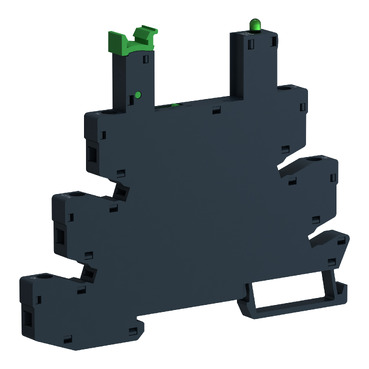

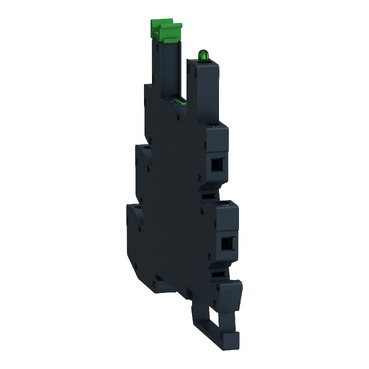

Harmony Solid State Relays Socket equipped with LED and protection circuit for SSL relays, screw connectors, 5 24V DC
Item Number: SSLZVA1
This Harmony SSL socket for solid state slim interfacing relay has screw clamp terminals and a rated voltage of 5V DC. It also offers clear circuit labelling on the sides to facilitate installation and maintenance. It features a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance.
Specifications
Design
| Range of product | Harmony Solid State Relays |
|---|---|
| Product or component type | socket for SSL1 |
| Product compatibility |
|
Physical
| [in] rated current | 6 A |
|---|---|
| [ue] rated operational voltage | < 250 V DC |
| Connections - terminals | screw connectors |
| Connections - terminals |
|
| Fixing mode | clip-on (35 mm DIN rail) |
| Sale per indivisible quantity | 10 |
| Local signalling | LED (green) for input status |
| Width | 6.2 mm |
| Height | 96 mm |
| Depth | 78.6 mm |
| Net weight | 0.0285 kg |
| Standards | IEC 61984 |
| Product certifications |
|
| Marking | CE |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | -40...70 °C |
| Ip degree of protection | IP20 |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2504008EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | X |
| Eu rohs directive | Compliant |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
