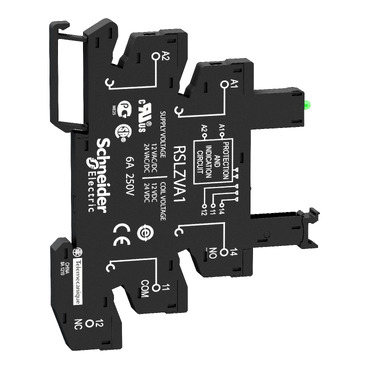

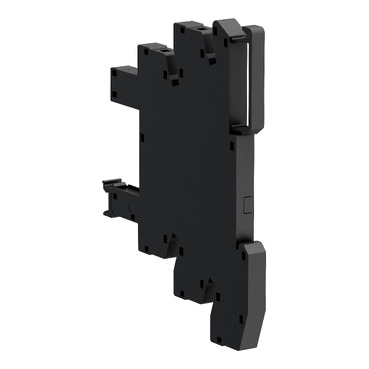

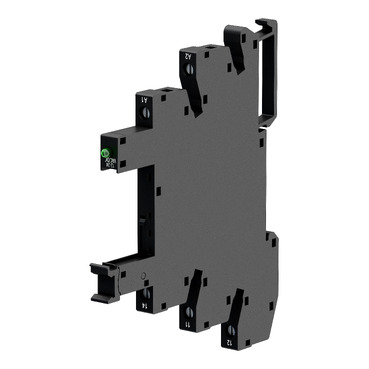

Harmony Electromechanical Relays Socket equipped with LED and protection circuit for RSL1 relays, screw connector, 48…60V AC DC

Home ProductsIndustrialHarmonySocket equipped with LED and protection circuit

Harmony Electromechanical Relays Socket equipped with LED and protection circuit for RSL1 relays, screw connector, 48…60V AC DC

Item Number: RSLZVA2

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

socket

Product compatibility

  • plug-in relay RSL with 1 C/O contact at 48 V DC
  • plug-in relay RSL with 1 C/O contact at 60 V DC

Warranty

18 months

Physical

Device presentation

basic element

[in] rated current

6 A

[ue] rated operational voltage

< 300 V AC

Connections - terminals

screw connectors

Connections - terminals

  • connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
  • connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end

Fixing mode

plastic compression spring (35 mm symmetrical DIN rail)

Sale per indivisible quantity

10

Net weight

0.023 kg

Ip degree of protection

IP20 conforming to IEC 60529

Standards

  • UL 508
  • IEC 61984

Product certifications

  • GOST
  • CSA

Marking

CE

Ambient air temperature for storage

-40...85 °C

Ambient air temperature for operation

-40...70 °C

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1405004EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Device short name

RSLZ

Contacts type and composition

1 C/O

[ith] conventional free air thermal current

6 A

[uc] control circuit voltage

  • 48 V
  • 60 V

Switching voltage

  • 48 V AC/DC
  • 60 V AC/DC

Rated operational voltage limits

  • 43.2...57.6 V
  • 54...72 V

Group of product

RSL_CON_48-60

Shape of pin

flat

Contact terminal arrangement

separate

Compatibility code

RSLZ

Tightening torque

< 0.4 N.m for M2.5 screw(s)

[uimp] rated impulse withstand voltage

3.6 kV

Overvoltage category

III

Pollution degree

3

Cad overall width

6.2 mm

Cad overall height

78.6 mm

Cad overall depth

95 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.7 cm

Package 1 width

8 cm

Package 1 length

10.2 cm

Package 1 weight

27 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

7.2 cm

Package 2 width

8.5 cm

Package 2 length

10.4 cm

Package 2 weight

274 g

Unit type of package 3

S03

Number of units in package 3

300

Package 3 height

30 cm

Package 3 width

30 cm

Package 3 length

40 cm

Package 3 weight

8.796 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.9 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.8427298224

Carbon footprint of the manufacturing phase [a1 to a3]

0.8 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0034835806

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0001632537

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.0068904269

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.8532670835

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

ENVEOLI1405004EN

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • End of Life Manual

  • Technical illustration

  • eTechPub

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Zelio Relay - 3D CAD
ZIP

Zelio Relay - 3D CAD

VERSION

1.0

DATE

29 Jan 2022

REVISION

1.0

DOWNLOAD (ZIP) 581.4 KB
Harmony Electromechanical Relays Catalog - EN
ZIP

Harmony Electromechanical Relays Catalog - EN

VERSION

1.0

DATE

07 Oct 2025

REVISION

1.0
ZELIO Relays - SSLZ… Solid State Relays Socket , RSLZ… Relays Socket, Product End-of-Life Instructions
ZIP

ZELIO Relays - SSLZ… Solid State Relays Socket , RSLZ… Relays Socket, Product End-of-Life Instructions

VERSION

1.0

DATE

17 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 117.3 KB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

1.0

DATE

30 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 456.2 KB
English
ZIP

English

VERSION

17.0

DATE

13 Aug 2025

REVISION

17.0

DOWNLOAD (ZIP) 5.9 MB
UL Recognized RPZF RUZ RXZE2 RSLZ
ZIP

UL Recognized RPZF RUZ RXZE2 RSLZ

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 789.3 KB
CSA Certificate RXZE2S114S
ZIP

CSA Certificate RXZE2S114S

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 904.2 KB

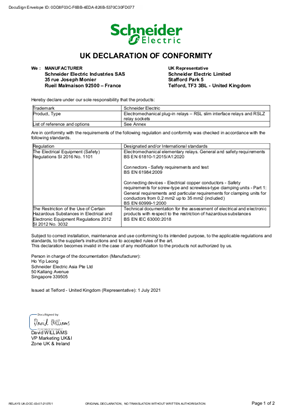

Manufacturer UK DOC RSL RSLZ
ZIP

Manufacturer UK DOC RSL RSLZ

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 309.4 KB

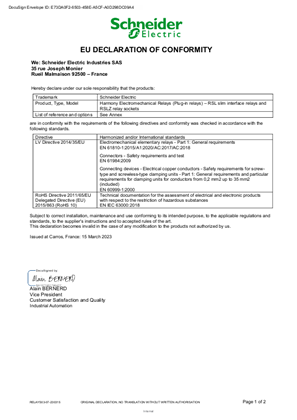

EU DOC - Zelio Relay RSL RSLZ
