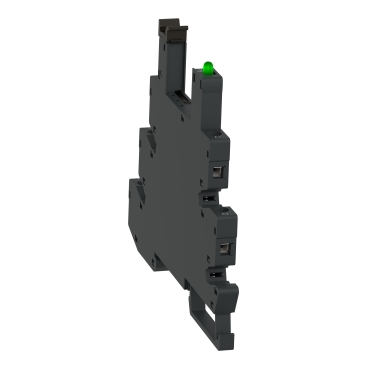

Harmony Electromechanical Relays Socket equipped with LED and protection circuit for RSL1 relays, screw connector, 230V AC DC

Item Number: RSLZVA4

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480078057	-
10	CAR	13606480078054	-

Specifications

Design

Range of product	Harmony Electromechanical Relays
Product or component type	socket
Product compatibility	plug-in relay RSL with 1 C/O contact at 60 V DC plug-in relay RSL
Warranty	18 months

Physical

Device presentation	basic element
[in] rated current	6 A
[ue] rated operational voltage	< 300 V AC
Connections - terminals	screw connectors
Connections - terminals	connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end
Fixing mode	plastic compression spring (35 mm symmetrical DIN rail)
Sale per indivisible quantity	10
Net weight	0.023 kg
Ip degree of protection	IP20 conforming to IEC 60529
Standards	IEC 61984 UL 508
Product certifications	GOST CSA
Marking	CE
Ambient air temperature for storage	-40...85 °C
Ambient air temperature for operation	-40...55 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1405004EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	Out
Average percentage of recycled plastic content	0 %
Package 3 bare product quantity	300
Package 2 bare product quantity	10
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Device short name	RSLZ
Contacts type and composition	1 C/O
[ith] conventional free air thermal current	6 A
[uc] control circuit voltage	230 V
Switching voltage	230 V AC/DC
Rated operational voltage limits	184...264.5 V
Group of product	RSL_CON_230
Shape of pin	flat
Contact terminal arrangement	separate
Compatibility code	RSLZ
Tightening torque	< 0.4 N.m for M2.5 screw(s)
[uimp] rated impulse withstand voltage	3.6 kV
Overvoltage category	III
Pollution degree	3
Cad overall width	6.2 mm
Cad overall height	78.6 mm
Cad overall depth	95 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	0.700 cm
Package 1 width	8.000 cm
Package 1 length	10.200 cm
Package 1 weight	23.000 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	8.500 cm
Package 2 width	7.000 cm
Package 2 length	10.700 cm
Package 2 weight	261.000 g
Unit type of package 3	S03
Number of units in package 3	300
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	8.380 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.7 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.7178809598
Carbon footprint of the manufacturing phase [a1 to a3]	0.7 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0029674945
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0001390679
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.0058696229
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.7268571452
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
End of life manual availability	ENVEOLI1405004EN
Take-back	No
Warranty (in months)	18

Show all specifications
