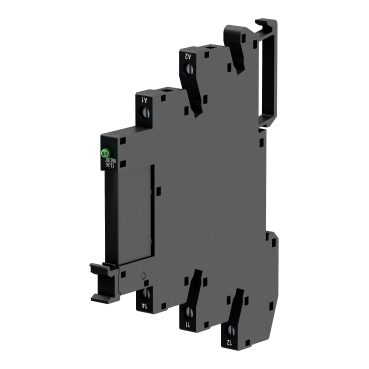

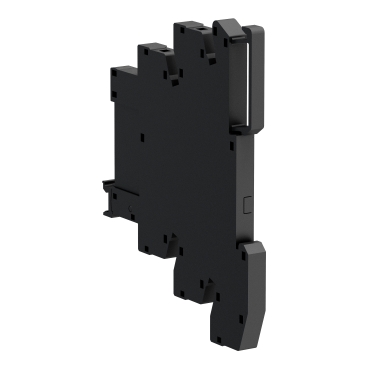

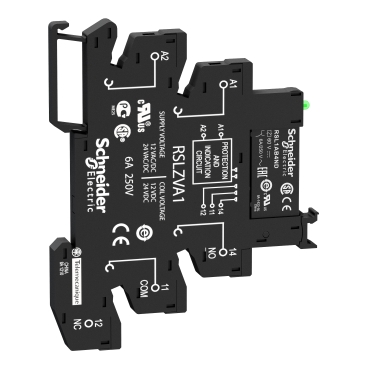

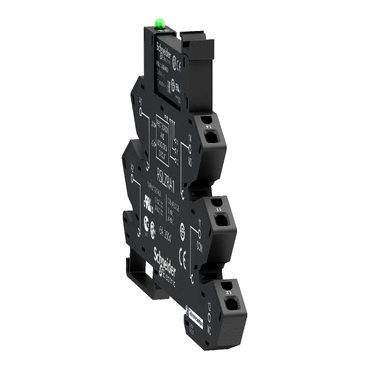

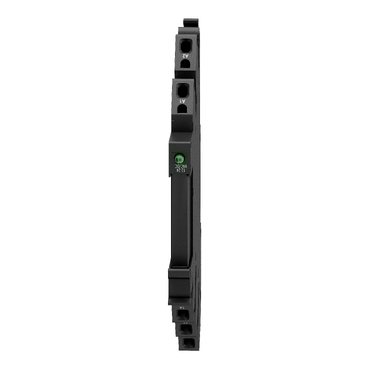

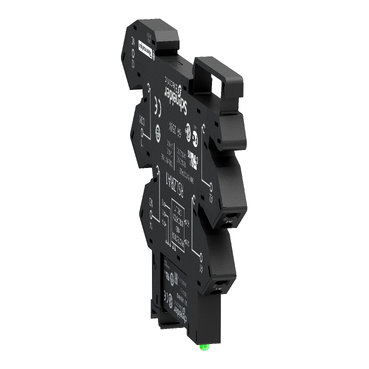

Harmony Electromechanical Relays Slim interface relay pre assembled 6A, 1CO, with LED, screw connectors, 48V AC DC
Item Number: RSL1PVEU
Specifications
Design
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Product or component type | pre-assembled plug-in relay with socket |
| Warranty | 18 months |
Physical
| [in] rated current | 6 A |
|---|---|
| Fixing mode | plastic compression spring |
| [ie] rated operational current | 6 A 1 C/O (AC-1/DC-1) conforming to IEC/UL |
| Electrical durability | 60000 cycles for resistive load, 6 A at 250 V, AC-1 |
| Mechanical durability | 10000000 cycles |
| Control type | without lockable test button |
| Connections - terminals | screw connectors |
| Connections - terminals |
|
| Mounting support | 35 mm symmetrical DIN rail |
| Device presentation | complete product |
| Sale per indivisible quantity | 10 |
| Width | 6.2 mm |
| Height | 78.6 mm |
| Depth | 95 mm |
| Net weight | 0.029 kg |
| Ip degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -40...55 °C |
| Standards |
|
| Product certifications |
|
| Marking | CE |
| Ambient air temperature for storage | -40...85 °C |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2506033EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | X |
| Eu rohs directive | Compliant |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Material
| Contacts material | silver alloy (AgSnO2) |
|---|
