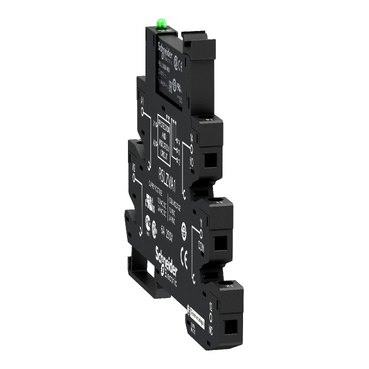

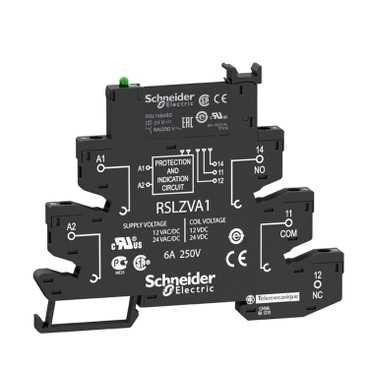

Harmony Electromechanical Relays Slim interface relay pre assembled 6A, 1CO, with LED, screw connectors, 24V AC DC

Home ProductsIndustrialHarmonySlim interface relay pre assembled

Harmony Electromechanical Relays Slim interface relay pre assembled 6A, 1CO, with LED, screw connectors, 24V AC DC

Item Number: RSL1PVBU

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width6.2 mm

Height icon

Height78.6 mm

Depth icon

Depth95 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

pre-assembled plug-in relay with socket

Warranty

18 months

Physical

[in] rated current

6 A

Fixing mode

plastic compression spring

[ie] rated operational current

6 A 1 C/O (AC-1/DC-1) conforming to IEC/UL

Electrical durability

60000 cycles for resistive load, 6 A at 250 V, AC-1

Mechanical durability

10000000 cycles

Control type

without lockable test button

Connections - terminals

screw connectors

Connections - terminals

  • screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
  • screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end

Mounting support

35 mm symmetrical DIN rail

Device presentation

complete product

Sale per indivisible quantity

10

Width

6.2 mm

Height

78.6 mm

Depth

95 mm

Net weight

0.029 kg

Ip degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for operation

-40...55 °C

Standards

  • CSA C22.2 No 14
  • UL 508
  • IEC 61810-1

Product certifications

  • UL
  • GOST
  • CSA

Marking

CE

Ambient air temperature for storage

-40...85 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1405004EN

Circularity profile

ENVEOLI1405004EN

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Contacts material

silver alloy (AgSnO2)

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Package 4 bare product quantity

2400

Package 3 bare product quantity

300

Series name

RSL series

Relay type

slim interface relay

Contact operation

standard

Contacts type and composition

1 C/O

Status led

with

[uc] control circuit voltage

24 V

[uc] control circuit voltage

24 V AC/DC

Control circuit type

AC/DC

[ithe] conventional enclosed thermal current

6 A at -40-55 °C

Average resistance

3390 Ohm network: DC at 23 °C +/- 10 %

[uimp] rated impulse withstand voltage

6 kV conforming to IEC

Minimum switching current

100 mA

Minimum switching voltage

12 V

[ui] rated insulation voltage

  • 250 V conforming to IEC
  • 277 V conforming to cUL

Minimum switching capacity

120 mW

Maximum switching voltage

277 V

Drop-out voltage threshold

>= 0.05 Uc

Load current

6 A at 250 V AC 0.5 mm mounting distance

Maximum switching capacity

  • 1500 VA
  • 150 W

Operating time

  • 5 ms reset
  • 12 ms

Terminals description iso n°1

  • (A1-A2)CO
  • (11-12-14)OC

Average coil consumption

0.17 W, DC

Safety reliability data

B10d = 60000

Operating rate

  • <= 18000 cycles/hour no-load
  • <= 360 cycles/hour under load

Tightening torque

< 0.5 N.m for M2.5 screw(s)

Compatibility code

RSL

Contact terminal arrangement

separate

Protection category

RT III

Operating position

any position

Test levels

level A group mounting

Shape of pin

flat (PCB type)

Input voltage

24 V AC/DC (input voltage limit: 21.6...28.8 V)

Dielectric strength

  • 1000 V AC between contacts
  • 4000 V AC between coil and contact

Vibration resistance

  • 10 gn, amplitude = +/- 1 mm (f = 10-150 Hz)10 cycles not operating conforming to IEC 60068-2-6
  • 5 gn, amplitude = +/- 1 mm (f = 10-150 Hz)10 cycles in operation conforming to IEC 60068-2-6

Shock resistance

  • 10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27
  • 5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.700 cm

Package 1 width

8.000 cm

Package 1 length

9.800 cm

Package 1 weight

29.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

7.300 cm

Package 2 width

8.700 cm

Package 2 length

10.600 cm

Package 2 weight

314.000 g

Unit type of package 3

S03

Number of units in package 3

300

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

9.918 kg

Green premium status for reporting

Green Premium product

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Sustainable packaging

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Toxic free

Yes

Phenolic free solution

Yes

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

26.766

Global warming ; total life cycle​

27 kg CO2 eq.

Minimum percentage of recycled plastic content

0
