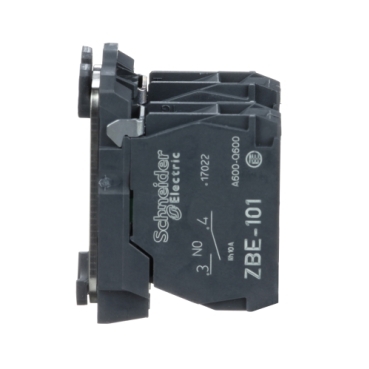

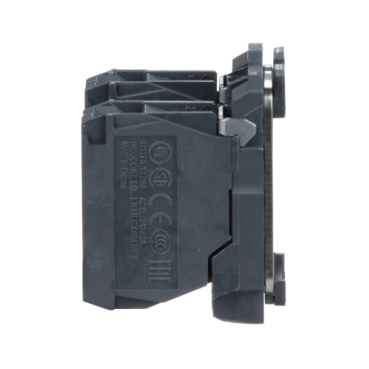

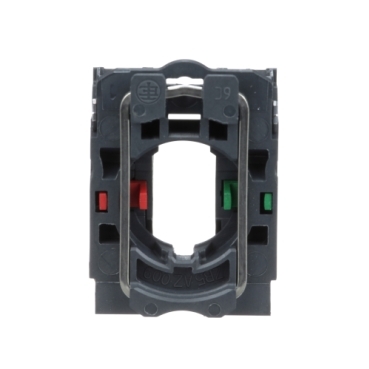

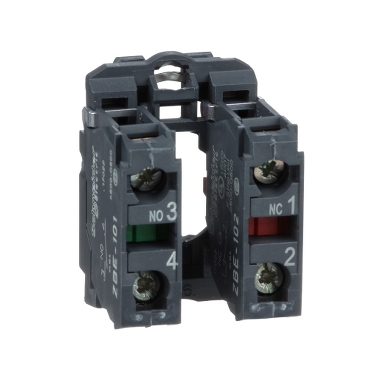

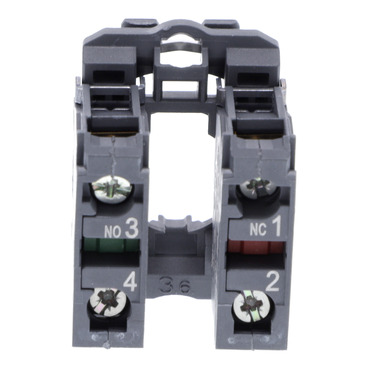

Harmony XB5 Single contact block with body fixing collar

Item Number: ZB5AZ105

1 PCE 0

Retail

$55

RRP (Inc. GST)

Where To Buy

Datasheet

For ZB5AZ105

Download

Barcode

Qty	EAN	Colour
1	3389110925760	-
5	53389110925765	-
		-

Barcode

Qty	UoM	EAN	Colour
1		3389110925760	-
5		53389110925765	-

Specifications

Design

Range of product

Harmony XB5

Product or component type

complete body/contact assembly

Warranty

18 months

Physical

Sale per indivisible quantity

Connections - terminals

screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Mechanical durability

10000000 cycles

[ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Device presentation

basic sub-assemblies

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP20 conforming to IEC 60529

Standards

IEC 60947-5-1
CSA C22.2 No 14
UL 508
IEC 60947-5-4
IEC 60947-1
JIS C8201-5-1
JIS C8201-1

Product certifications

BV
UL
CSA
DNV
LROS (Lloyds register of shipping)

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP2303008EN

Circularity profile

ENVEOLI2303008EN

California proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Device composition

fixing collar
body

Contacts material

silver alloy (Ag/Ni)

Others

Package 3 bare product quantity

2400

Package 2 bare product quantity

300

Package 1 bare product quantity

Device short name

ZB5

Fixing collar material

plastic

Head type

standard

Contacts type and composition

1 NO + 1 NC

Contact operation

slow-break

Contact block type

single

Cad overall width

30 mm

Cad overall height

42 mm

Cad overall depth

32 mm

Terminals description iso n°1

(13-14)NO
(11-12)NC

Contacts usage

standard contacts

Positive opening

with conforming to IEC 60947-5-1 appendix K

Operating travel

1.5 mm (NC changing electrical state)
2.6 mm (NO changing electrical state)
4.3 mm (total travel)

Tightening torque

0.8...1.2 N.m conforming to IEC 60947...1

Shape of screw head

cross compatible with Philips no 1 screwdriver
cross compatible with pozidriv No 1 screwdriver
slotted compatible with flat Ø 4 mm screwdriver
slotted compatible with flat Ø 5.5 mm screwdriver

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Electrical reliability

λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4
λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4

Customizable

Compatibility code

ZB5

Protective treatment

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.500 cm

Package 1 width

3.400 cm

Package 1 length

5.400 cm

Package 1 weight

29.000 g

Unit type of package 2

S03

Number of units in package 2

300

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

9.142 kg

Unit type of package 3

P06

Number of units in package 3

2400

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

85.268 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Green premium status for reporting

Green Premium product

Sustainable packaging

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.3579802155

Global warming ; total life cycle

1 kg CO2 eq.

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

Colour ()

Harmony XB5 Single contact block with body fixing collar

Item Number: ZB5AZ105

Colour ()

Datasheet

Barcode

Specifications

Design

Physical

Material

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Environmental Disclosure

End of Life Manual

Installation Instruction

Technical illustration

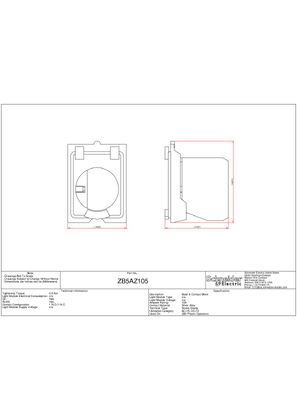

Technical Drawing
