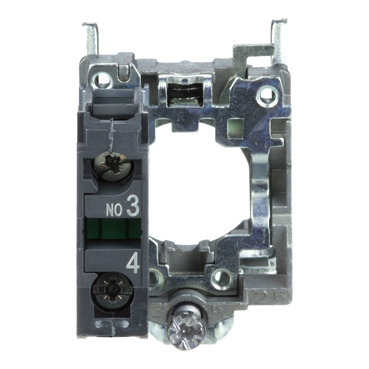

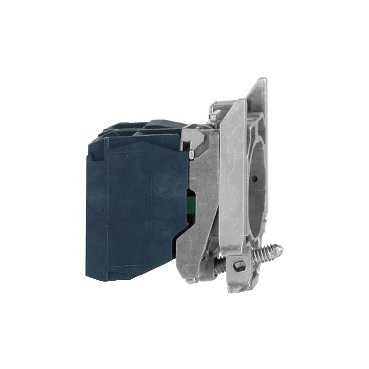

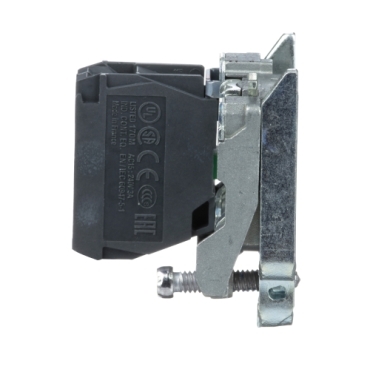

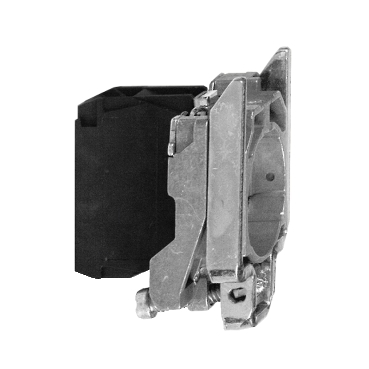

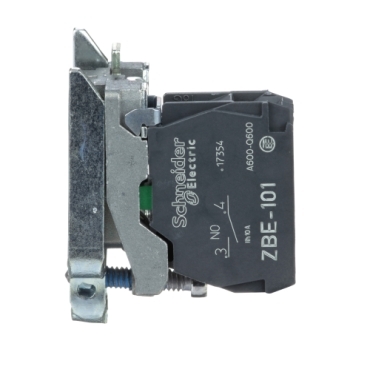

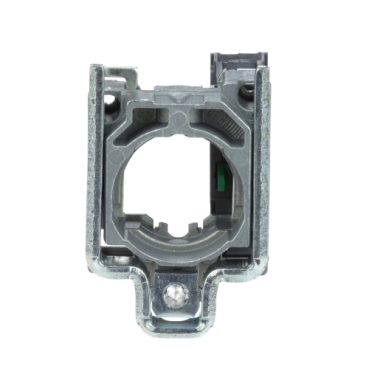

Harmony XB4 Single contact block with body fixing collar metal, screw clamp terminal, 1NO
Item Number: ZB4BZ101
This Harmony XB4, single contact block is pre-assembled on a body/collar fixing unit. This body fixing collar is pre-mounted with a contact block. Simply adding a head to this assembly will provide you with a complete ready-to-use push-button. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Datasheet
Specifications
Design
Range of product
Product or component type
Warranty
Physical
Sale per indivisible quantity
Connections - terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
- screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Net weight
Mechanical durability
[ie] rated operational current
- 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
- 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1
- 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1
- 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
- 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1
- 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability
- 10000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
- 10000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
- 10000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
- 10000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
- 10000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation
Ambient air temperature for storage
Ambient air temperature for operation
Ip degree of protection
Standards
- CSA C22.2 No 14
- IEC 60947-5-1
- UL 508
- JIS C8201-5-1
- IEC 60947-5-4
- IEC 60947-5-5
- IEC 60947-1
- JIS C8201-1
Product certifications
- BV
- UL
- CSA
- DNV
- LROS (Lloyds register of shipping)
Reach regulation
Reach free of svhc
Eu rohs directive
Toxic heavy metal free
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Material
Device composition
- fixing collar
- body
Contacts material
Others
Package 1 bare product quantity
Package 2 bare product quantity
Package 3 bare product quantity
Package 4 bare product quantity
Device short name
Fixing collar material
Head type
Contacts type and composition
Contact operation
Contact block type
Cad overall width
Cad overall height
Cad overall depth
Terminals description iso n°1
Contacts usage
Positive opening
Operating travel
- 2.6 mm (NO changing electrical state)
- 4.3 mm (total travel)
Operating force
Operating torque
Tightening torque
Shape of screw head
- cross compatible with Philips no 1 screwdriver
- cross compatible with pozidriv No 1 screwdriver
- slotted compatible with flat Ø 4 mm screwdriver
- slotted compatible with flat Ø 5.5 mm screwdriver
Short-circuit protection
[ith] conventional free air thermal current
[ui] rated insulation voltage
[uimp] rated impulse withstand voltage
Electrical reliability
- λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4
- λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4
Customizable
Customizable
Compatibility code
Protective treatment
Vibration resistance
Shock resistance
- 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
- 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Sustainable packaging
Weee
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
