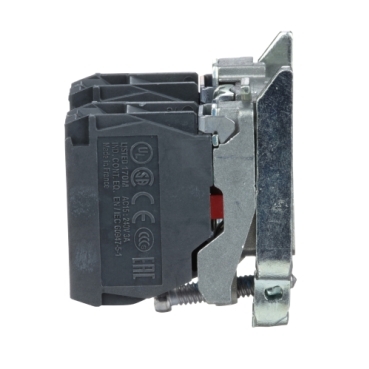

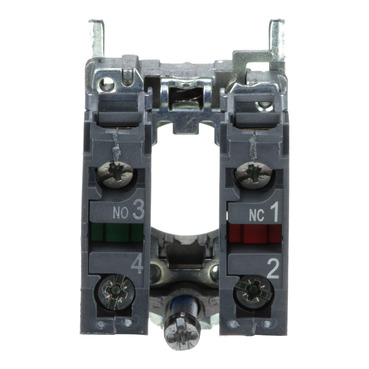

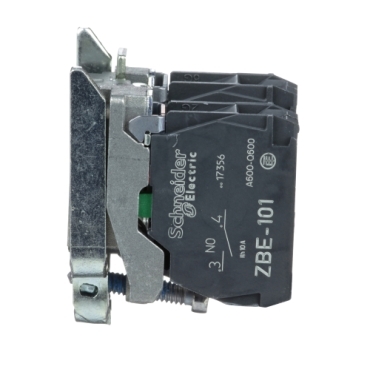

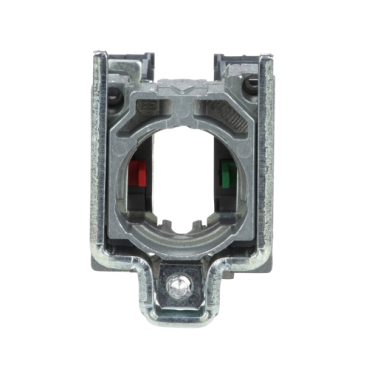

Harmony XB4 Single contact block with body fixing collar metal, screw clamp terminal, 1NO+1NC

Item Number: ZB4BZ105

1 PCE 0

This Harmony XB4, single contact block is pre-assembled on a body/collar fixing unit. This body fixing collar is pre-mounted with a contact block. Simply adding a head to this assembly will provide you with a complete ready-to-use push-button. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110889413	-
5	PAC	53389110889418	-

Specifications

Design

Range of product	Harmony XB4
Product or component type	complete body/contact assembly
Warranty	18 months

Physical

Sale per indivisible quantity	1
Connections - terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Net weight	0.062 kg
Mechanical durability	5000000 cycles
[ie] rated operational current	3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability	10000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 10000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 10000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 10000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 10000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation	basic sub-assemblies
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Ip degree of protection	IP20 conforming to IEC 60529
Standards	IEC 60947-1 JIS C8201-5-1 IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-5-5 UL 508 IEC 60947-5-4 JIS C8201-1
Product certifications	DNV LROS (Lloyds register of shipping) CSA BV UL
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2308035EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Device composition	fixing collar body
Contacts material	silver alloy (Ag/Ni)

Others

Legacy weee scope	In
Package 2 bare product quantity	5
Package 1 bare product quantity	1
Package 3 bare product quantity	200
Package 4 bare product quantity	1600
Average percentage of recycled plastic content	23 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	ZB4
Fixing collar material	zamak
Head type	standard
Contacts type and composition	1 NO + 1 NC
Contact operation	slow-break
Contact block type	single
Cad overall width	30 mm
Cad overall height	47 mm
Cad overall depth	37 mm
Terminals description iso n°1	(11-12)NC
Contacts usage	standard contacts
Positive opening	with conforming to IEC 60947-5-1 appendix K
Operating travel	1.5 mm (NC changing electrical state) 2.6 mm (NO changing electrical state) 4.3 mm (total travel)
Operating torque	0.05 N.m NO changing electrical state
Tightening torque	0.8...1.2 N.m conforming to IEC 60947...1
Shape of screw head	cross compatible with Philips no 1 screwdriver cross compatible with pozidriv No 1 screwdriver slotted compatible with flat Ø 4 mm screwdriver slotted compatible with flat Ø 5.5 mm screwdriver
Short-circuit protection	10 A cartridge fuse type gG conforming to IEC 60947-5-1
[ith] conventional free air thermal current	10 A conforming to IEC 60947-5-1
[ui] rated insulation voltage	600 V (pollution degree 3) conforming to IEC 60947-1
[uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
Electrical reliability	λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4
Customizable	no
Customizable	0
Compatibility code	ZB4
Protective treatment	TH
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.400 cm
Package 1 width	3.400 cm
Package 1 length	5.400 cm
Package 1 weight	61.000 g
Unit type of package 2	BB1
Number of units in package 2	5
Package 2 height	4.400 cm
Package 2 width	3.400 cm
Package 2 length	26.500 cm
Package 2 weight	305.000 g
Unit type of package 3	S03
Number of units in package 3	200
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	12.752 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.6 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.4394571767
Carbon footprint of the manufacturing phase [a1 to a3]	0.4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0081078055
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0124353025
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.0521873239
Carbon footprint of the use phase [b2, b3, b4, b6]	0.1 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.078423013
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.5906106217
Average percentage of recycled plastic content	23 %
Average percentage of recycled metal content	16 %
Average percentage of recycled metal content	16 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
End of life manual availability	ENVEOLI2308035EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Installation Instruction
End of Life Manual
Environmental Disclosure
Technical illustration
Technical Drawing
Certificates (MSDS)
eTechPub
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Harmony XB4 Single contact block with body fixing collar metal, screw clamp terminal, 1NO+1NC

Item Number: ZB4BZ105

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

End of Life Manual

Environmental Disclosure

Technical illustration

Technical Drawing

Certificates (MSDS)

eTechPub

Declaration of Conformity

Declaration of Conformity (Sustainability)

ZB4BZ105_CAD_DOC

Discover the Harmony XB4 metal Control and signaling units catalog

Catalog Enabling movement Two-hand ergonomic control stations XY2SB English 10-2015

XB4-XB5 - Mounting - Instruction Sheet

XB4.. / XB5... Mounting, Instruction Sheet

Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions

ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)

Harmony XB4 Non Illuminated Push Button, End Of Life Instructions

Harmony XB4 Non Illuminated Push Button, Product Environmental Profile

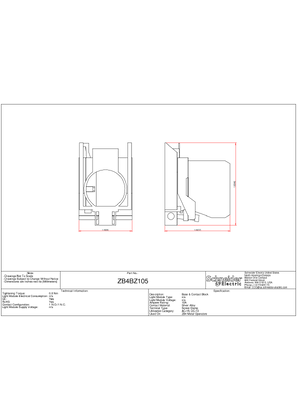

Technical Illustration - Dimensions
