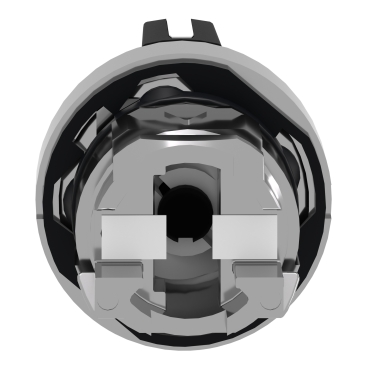

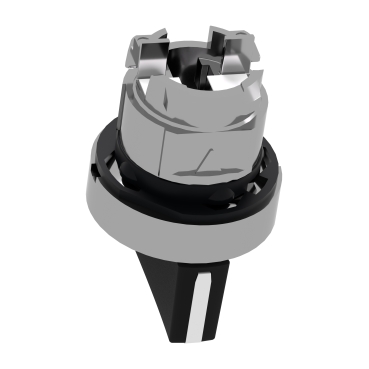

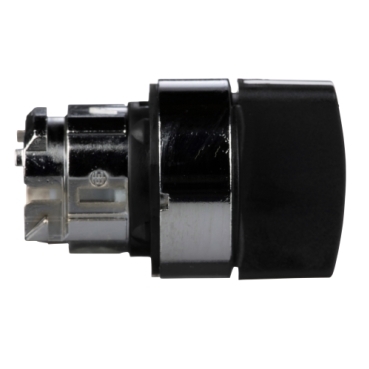

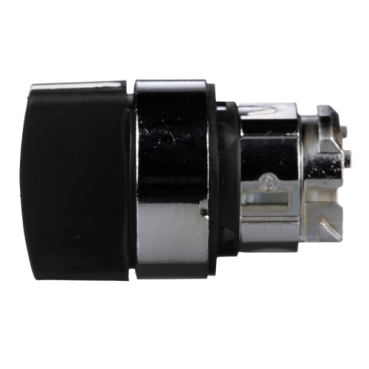

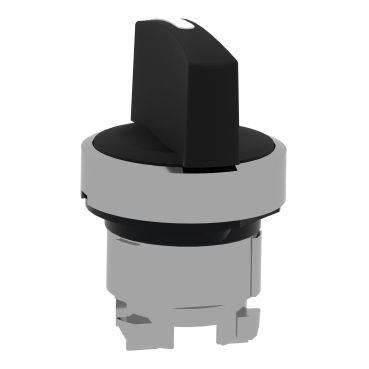

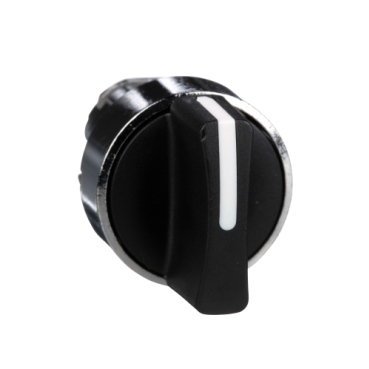

Harmony XB4 Selector switch head metal, black, 22mm, 3 positions, stay put
Item Number: ZB4BD3
Datasheet
Specifications
Design
Range of product
Product or component type
Warranty
Physical
Sale per indivisible quantity
Net weight
Mechanical durability
Device presentation
Ambient air temperature for storage
Ambient air temperature for operation
Ip degree of protection
- IP67 conforming to IEC 60529
- IP69
- IP69K
Ik degree of protection
Standards
- IEC 60947-5-5
- IEC 60947-1
- UL 508
- CSA C22.2 No 14
- IEC 60947-5-4
- IEC 60947-5-1
- JIS C8201-5-1
- JIS C8201-1
Product certifications
- CSA
- DNV
- BV
- LROS (Lloyds register of shipping)
- UL listed
Reach regulation
Reach free of svhc
Eu rohs directive
Toxic heavy metal free
Mercury free
Rohs exemption information
China rohs regulation

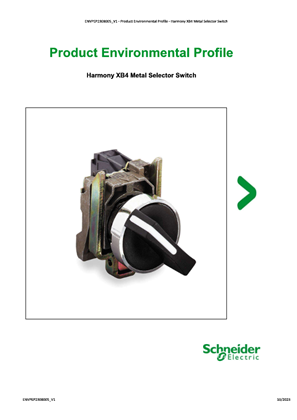

Environmental disclosure
Circularity profile
California proposition 65
Others
Package 2 bare product quantity
Package 3 bare product quantity
Package 4 bare product quantity
Package 1 bare product quantity
Device short name
Bezel material
Mounting diameter
Head type
Shape of signaling unit head
Type of operator
Operator profile
Operator position information
Cad overall width
Cad overall height
Cad overall depth
Resistance to high pressure washer
Electrical composition code
- C3 for <6 contacts using single blocks in front mounting
- C4 for <6 contacts using single and double blocks in front mounting
- C5 for <5 contacts using single blocks in front mounting
- C6 for <5 contacts using single and double blocks in front mounting
- C7 for <4 contacts using single blocks in front mounting
- C8 for <4 contacts using single and double blocks in front mounting
- C11 for <3 contacts using single blocks in front mounting
Main group
Group of product
Cap/operator or lens colour
Customizable
Customizable
Compatibility code
Protective treatment
Overvoltage category
Nema degree of protection
- NEMA 13
- NEMA 4X
Vibration resistance
Shock resistance
- 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
- 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Green premium status for reporting
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-

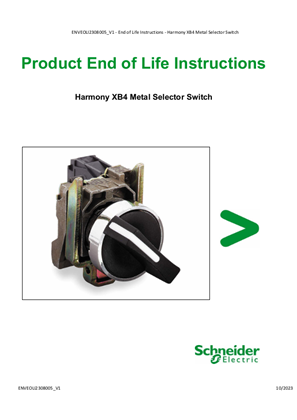

End of Life Manual
-
Environmental Disclosure
-
Installation Instruction
-
Technical illustration
-

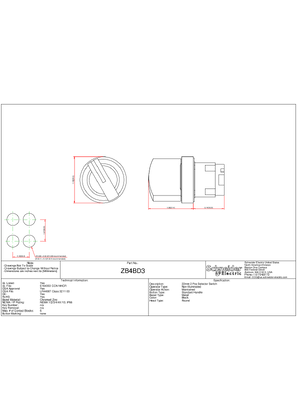

Technical Drawing
-
Certificates (MSDS)
-
Declaration of Conformity
-
eTechPub
XB4.. / XB5... Mounting, Instruction Sheet
VERSION
2.0
DATE
06 Dec 2024
REVISION
2.0
Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions
VERSION
1.0
DATE
22 Aug 2024
REVISION
1.0
ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)
VERSION
1.0
DATE
22 Aug 2024
REVISION
1.0
BV-Marine certificate-XB4B XB5A Control and signaling units, XD4PA XD5PA Joystick Controllers
VERSION
1.0
DATE
08 Apr 2025
REVISION
1.0
XB4 XB5 ZBE ZEN ZBV ZAL ZB4 ZB5 ZBZ XD4 XD5 ZBY ZBC ZBD ZBG ZBP ZB2 Control and signaling units
VERSION
1.1
DATE
27 Nov 2024
REVISION
1.1
XB4B XB5A Control and signaling units and ZBE ZBP ZBV ZBZ ZENL ZALV Electrical blocks
VERSION
1.2
DATE
06 Nov 2024
REVISION
1.2
IECEE CB SCHEME Certificate XB4B, XB4F, ZB4B, ZB4F, ZB4S, XB5A, XB5F, XB5EV, ZALV, ZB5A, ZB5C, ZB5F, ZB5S, ZBE, ZBP, ZBV, ZBW, ZBY, ZBZ, ZENL, ZB2BE, XD4P, ZD4P, ZD5P
VERSION
1.0
DATE
13 Aug 2024
REVISION
1.0
DNV-GL Marine Certificate XB4B XB5A Control and signaling units, XD4PA XD5PA Joystick Controllers
VERSION
1.1
DATE
03 Jun 2024
REVISION
1.1
Certificate No.00/00156
VERSION
1.0
DATE
03 Jun 2024
REVISION
1.0
UL certificate XB4-XB5 ZBE ZEN ZBV ZAL ZB4 ZB5 ZBZ XD4 XD5 ZBY ZBC ZBD ZBG ZBP ZB2 Harmony pushbutton
VERSION
1.0
DATE
03 Jun 2024
REVISION
1.0
ZB4B, ZB5A Control and signaling elements
VERSION
1.0
DATE
01 Mar 2024
REVISION
1.0
PSE Japan Certificate XB4B_XB5A Control and Signaling units
VERSION
1.0
DATE
01 Mar 2024
REVISION
1.0
XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers
VERSION
1.0
DATE
07 Apr 2025
REVISION
1.0
UE-DoC-XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers
VERSION
1.3
DATE
17 Jul 2024
REVISION
1.3
Frequently Asked Questions
How can manual override of an automatic control system be implemented?
Hide ShowThere are many instances where it is necessary to have automatic control of a motor and also the provision of a manual override.
- A typical automatic control utilising contact S1 (the process monitoring contact e.g. thermostat, float switch, limit switch) to control a contactor (coil KM1) to switch a motor is shown below;
- In order to implement manual override, a three position selector switch; S2 (e.g. Schneider Electric Harmony type ZB4BD3 + ZB4BZ103) is utilised as shown in the circuit diagram below;
The 'stay put' or latching selector switch has 2 qty N/O (normally open) contacts;
- The N/O contact in position 1 ('Auto' control) is wired in series with contact S1 to enable automatic control.
- The N/O contact in position 3 ('Manual' control) is wired in parallel with contact S1 overriding the automatic control and therefore maintaining the operation of the contactor.
- The centre position (2) provides a manual 'off' selection as both N/O contacts are open in this position.
