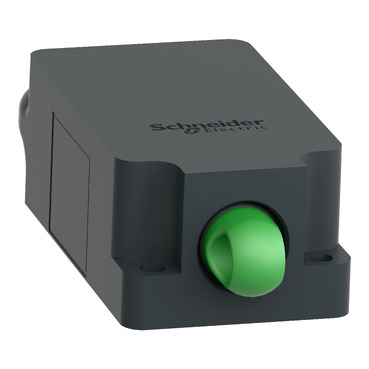

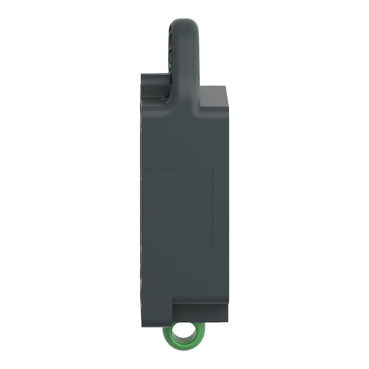

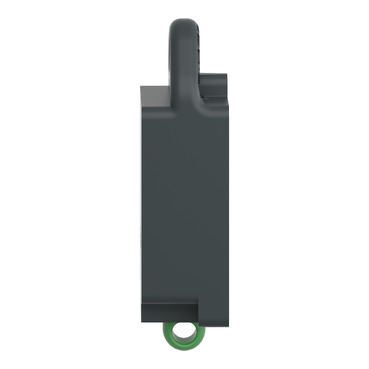

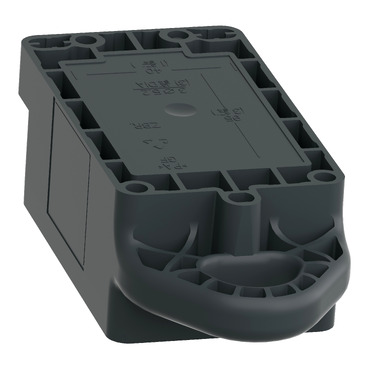

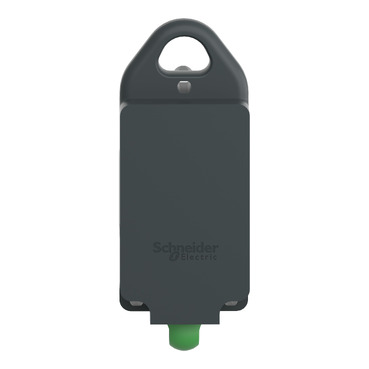

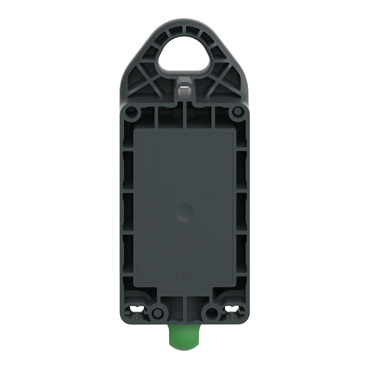

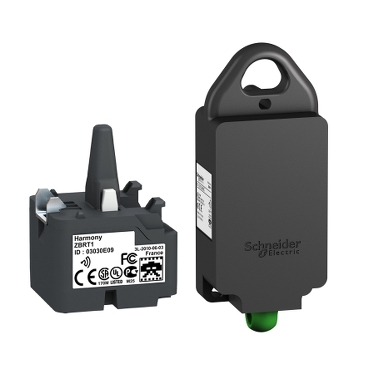

Harmony XB5R Rope pull switch Wireless and batteryless transmitter, plastic black

Item Number: ZBRP1

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480571732	-

Specifications

Design

Range of product

Harmony XB5R

Product or component type

wireless and batteryless transmitter

Warranty

18 months

Physical

Transmission frequency

2405 MHz

Number of channels

Net weight

0.15 kg

Standards

UL 508
EN/IEC 60947-1
EN/IEC 62479
EN/IEC 60947-5-1
EN/IEC 300328

Communication port protocol

Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4

Fixing mode

by screw: 1.8-2.2 N.m

Mounting mode

between 2 ropes
panel mount with universal support

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-25...70 °C

Relative humidity

95 % without condensation

Ip degree of protection

IP65 conforming to IEC 62262

Ik degree of protection

IK05 conforming to IEC 62262

Mechanical durability

1000000 cycles

Product certifications

UL
GOST
CE
RCM
ANATEL
FCC
UKCA

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP101106EN

Circularity profile

ENVEOLI1103010EN

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

Package 2 bare product quantity

Device short name

ZBRP1

Bezel material

plastic

Level or class

5M00G7W

Antenna type

omnidirectional

Antenna gain

0 dBi

Cad overall height

144 mm

Cad overall width

56 mm

Cad overall depth

38 mm

Mechanical robustness

free fall resistance 1 m conforming to EN/IEC 60068-2-31

Radio agreement

ICASA
GITEKI

Maximum sensing distance

100 m in free field

Emission power

3 mW

Operating position

any position

Nema degree of protection

NEMA 4

Electromagnetic compatibility

electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts))
susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz)
susceptibility to electromagnetic fields - test level: 6 V/m (2000...6000 MHz)

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

6.700 cm

Package 1 width

6.500 cm

Package 1 length

16.500 cm

Package 1 weight

172.000 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

6.259 kg

Green premium status for reporting

Green Premium product

Packaging made with recycled cardboard

Packaging without single use plastic

Scip number

25b7f895-3732-43c8-9910-ef6005058640

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

1.767769728

Global warming ; total life cycle

2 kg CO2 eq.

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

Colour ()

Harmony XB5R Rope pull switch Wireless and batteryless transmitter, plastic black

Item Number: ZBRP1

Colour ()

Datasheet

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Product Brochures

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

Operating Manuals

Technical illustration

Technical Drawing

eTechPub

Declaration of Conformity

Certificates (MSDS)

ZBRP1_CAD

Rope pull switch with wireless and batteryless transmitter, plastic black

Harmony Hub A masterpiece for a plug and play digital ecosystem

Harmony XB5R and XB4R Wireless and Batteryless Pushbuttons Catalog English 02/2021

Wireless Push Button and Configurable Receiver

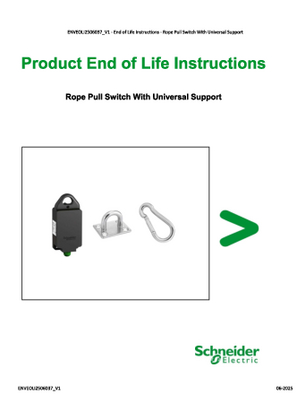

SWITCH TI TIM 20A 2P+RED LIGHT - Product End of Life Instructions

ZBRR. Programmable receivers, Product End-of-Life Instructions

Wireless Push Button and Configurable Receiver

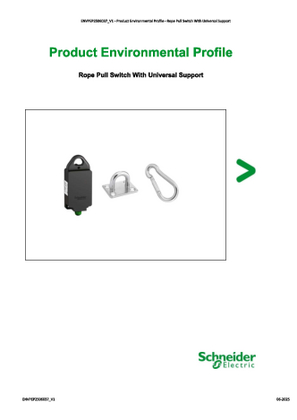

ZBRP1 Rope Pull Switch - Harmony XB5R, Product Environmental Profile

ZBRP1 Rope Pull Switch, Instruction Sheet

Harmony XB5R Expert Instruction Sheet

Technical Illustration - Dimensions

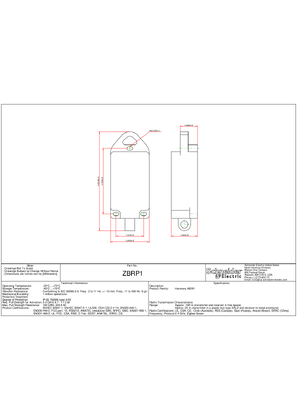

ZBRP1_2D_Drwng_PDF
