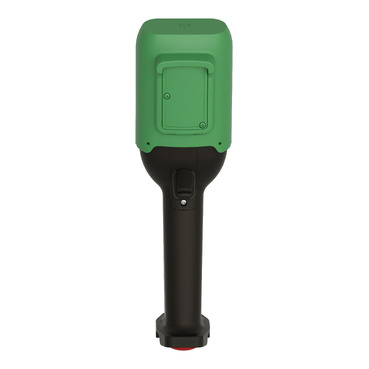

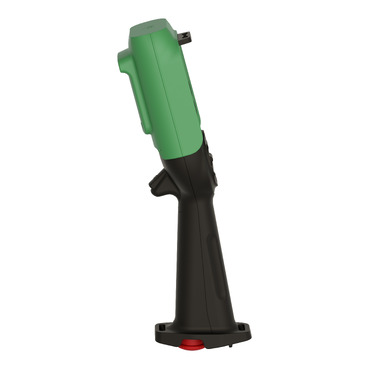

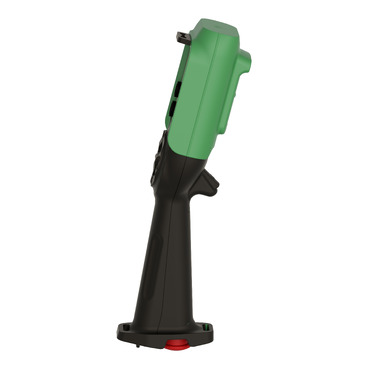

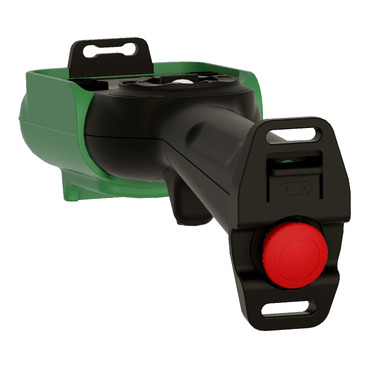

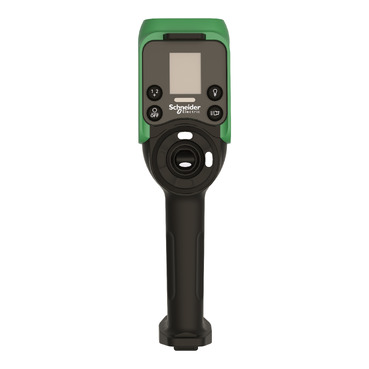

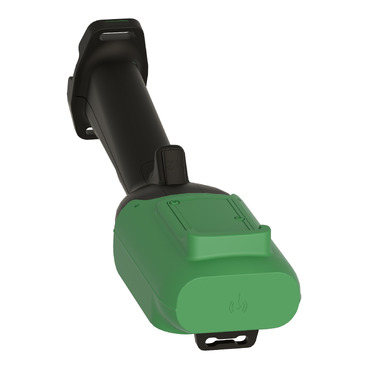

Harmony eXLhoist Remote control standard, display, 6 motion push-buttons, 2 auxiliary push-buttons

Item Number: ZART8D

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width100 mm

Height340 mm

Depth90 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480610363	-

Specifications

Design

Range of product

Harmony eXLhoist

Product or component type

hand-held remote control

Physical

Function available

accelerometer function
vibrator function

Operating distance

50 m

Communication network type

wireless: bluetooth low energy

Transmission frequency

2.4 GHz

Mechanical durability

5000000 cycles

Width

100 mm

Height

340 mm

Depth

90 mm

Net weight

0.65 kg

Ip degree of protection

IP65

Ambient air temperature for operation

-20...60 °C

Ambient air temperature for storage

-20...45 °C

Relative humidity

0...95 % at -20...60 °C operating

Product certifications

CE
UL
JIS
EAC
C-Tick
CSA
KC

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

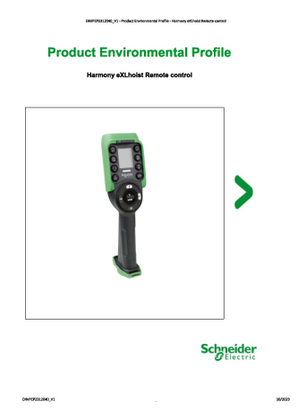

ENVPEP2312040EN

Circularity profile

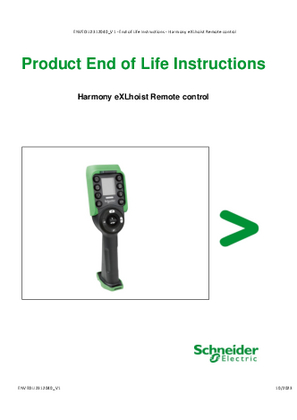

ENVEOLI2312040EN

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

enclosure: PC (polycarbonate)
enclosure: PBT (polybutylene terephthalate)
cover: PP (polypropylene)
protective cover: EPDM rubber

Others

Package 1 bare product quantity

Package 2 bare product quantity

Device short name

ZART

Control button type

6 configurable motion push-button
2 configurable auxiliary push-button

Display type

LCD display 34 x 42 mm

Mechanical robustness

free fall resistance 4.5 m conforming to IEC 60068-2-27

Maximum sensing distance

100 m in free field

Response time

< 300 ms at full duplex

Charging time

900 s

Autonomy

30 h

Service life

5 year(s)

Radio agreement

ANATEL
ICASA
SRRC
FCC
ARIB
RSS

Nema degree of protection

NEMA 4

Operating altitude

0...2000 m

Storage altitude

0...3000 m

Vibration resistance

0.075 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)

Shock resistance

100 gn conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

10.700 cm

Package 1 width

10.500 cm

Package 1 length

33.600 cm

Package 1 weight

732.000 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.432 kg

Packaging made with recycled cardboard

Packaging without single use plastic

Scip number

6e438e59-42d1-4633-bfe2-cb5ef607659b

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

25.2020049449

Global warming ; total life cycle

25 kg CO2 eq.

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

Colour ()

Harmony eXLhoist Remote control standard, display, 6 motion push-buttons, 2 auxiliary push-buttons

Item Number: ZART8D

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Material

Others

Documents & downloads

All

CAD Files and Packs

Product Brochures

Technical Data Catalogues

Environmental Disclosure

End of Life Manual

Installation Instruction

Operating Manuals

Quick Start Guide

Technical illustration

Technical Drawing

eTechPub

Certificates (MSDS)

Declaration of Conformity

Firmware

Software - Release

Missing CAD 2024 project C&S

ZART8D_CAD

998-19817525_US

Catalog Harmony eXLhoist - Wireless industrial radio remote control English 04/2021

Harmony eXLhoist Remote control

Harmony eXLhoist Remote control

XARS8D18. / XARS12D18. / XARS8L12. Wireless Remote Control Station, Instruction Sheet (EN)

Harmony eXLhoist - Wireless Remote Control System, User Manual

XARS8D18. - XARS12D18. - XARS8L12. Wireless Remote Control Station, Quick Start Guide

Technical Illustration - Dimensions

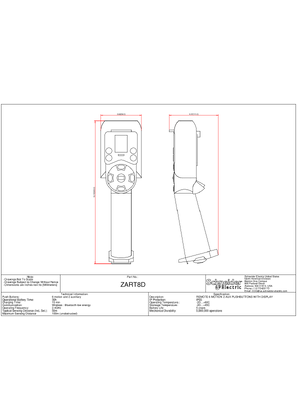

ZART8D_2D_Drwng_PDF
