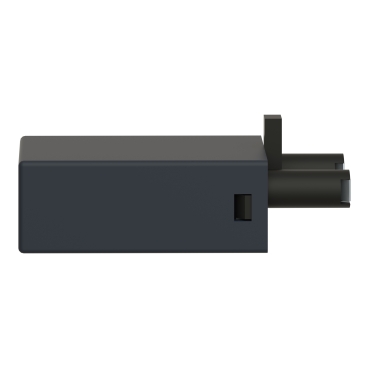

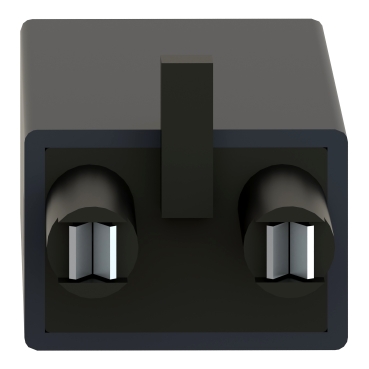

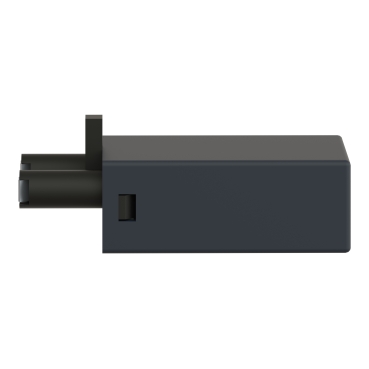

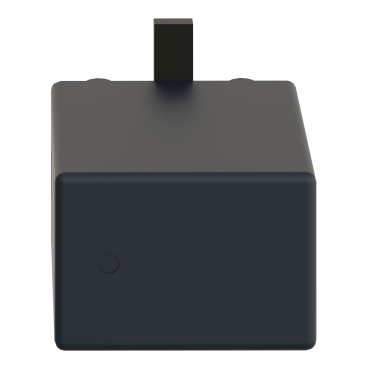

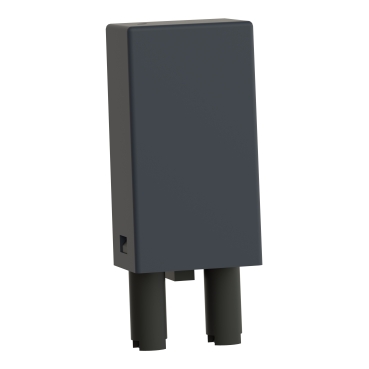

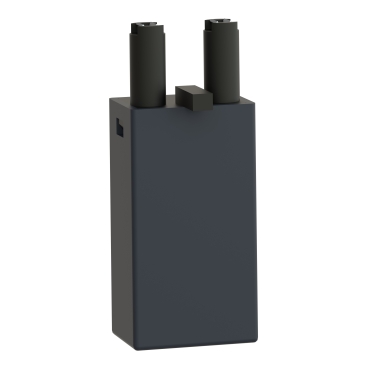

Harmony Electromechanical Relays Protection module with Varistor, for RPZ RXZ sockets, 6…24V AC DC

Home ProductsIndustrialHarmonyProtection module

Harmony Electromechanical Relays Protection module with Varistor, for RPZ RXZ sockets, 6…24V AC DC

Item Number: RXM021RB

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

protection module

Product compatibility

  • socket RPZ (1 C/O)
  • socket RPZ (2 C/O)
  • socket RXZ (2 C/O)
  • socket RXZ (3 C/O)
  • socket RXZ (4 C/O)

Product destination

  • RPM relay
  • RXM relay

Warranty

18 months

Physical

Sale per indivisible quantity

20

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1705013EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Average percentage of recycled plastic content

0 %

Package 3 bare product quantity

400

Package 2 bare product quantity

10

Package 1 bare product quantity

1

Legacy weee scope

Out

At least in Europe

Weee label

No

Accessory / separate part category

protection accessories

Accessory / separate part designation

varistor

[uc] control circuit voltage

6...24 V AC/DC

[uc] control circuit voltage

6...24 V

Compatibility code

RXM

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.900 cm

Package 1 width

1.200 cm

Package 1 length

3.000 cm

Package 1 weight

2.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

3.000 cm

Package 2 width

7.000 cm

Package 2 length

11.000 cm

Package 2 weight

20.000 g

Unit type of package 3

S01

Number of units in package 3

400

Package 3 height

15.000 cm

Package 3 width

15.000 cm

Package 3 length

40.000 cm

Package 3 weight

1.006 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.0246095

Carbon footprint of the manufacturing phase [a1 to a3]

0 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.00023224

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0000239755

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.000255615

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.0251213305

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • eTechPub

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Missing CAD 2024 project C&S
ZIP

Missing CAD 2024 project C&S

VERSION

1.0

DATE

04 Mar 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB
Harmony Electromechanical Relays Catalog - EN
ZIP

Harmony Electromechanical Relays Catalog - EN

VERSION

1.0

DATE

07 Oct 2025

REVISION

1.0
English
ZIP

English

VERSION

17.0

DATE

13 Aug 2025

REVISION

17.0

DOWNLOAD (ZIP) 5.9 MB

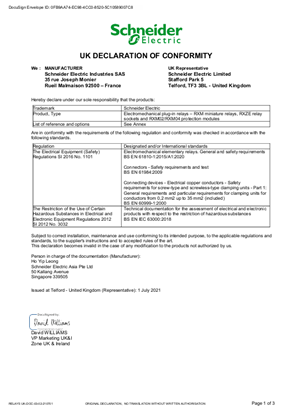

Manufacturer UK DOC RXM RXZE
ZIP

Manufacturer UK DOC RXM RXZE

VERSION

1.0

DATE

30 May 2025

REVISION

1.0

DOWNLOAD (ZIP) 452.9 KB

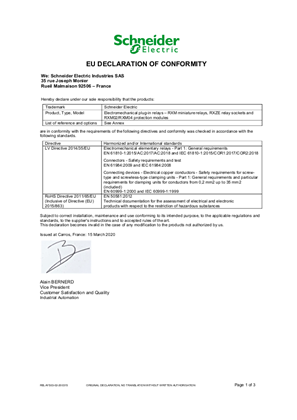

EU DOC - Zelio Relay RXM RXZE
ZIP

EU DOC - Zelio Relay RXM RXZE

VERSION

1.0

DATE

30 May 2025

REVISION

1.0

DOWNLOAD (ZIP) 418.9 KB
CSA Certificate RPZF, RUZC, RUZSC, RUZSF, RXZE2, RUW, RXM02, RXM04
ZIP

CSA Certificate RPZF, RUZC, RUZSC, RUZSF, RXZE2, RUW, RXM02, RXM04

VERSION

1.0

DATE

01 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 976.1 KB

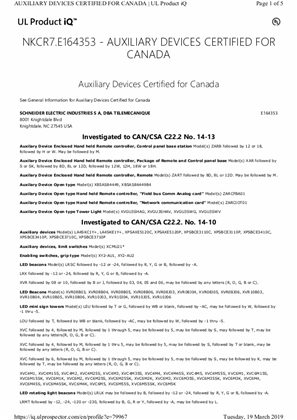

UL Listed RUW, RXM02, RXM04 - socket modules
