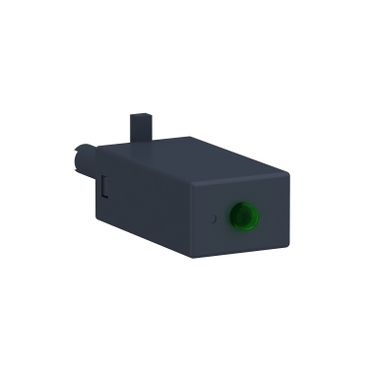

Harmony Electromechanical Relays Protection module diode+green LED, for all sockets, 110…230V DC

Item Number: RZM031FPD

1 PCE 0

"This Harmony RXZ diode has a rated voltage of 110V to 230V DC." "It has a light weight and it is compatible with RSZ socket with 1 and 2 changeover contacts." "This protection module enables safety to your relay which helps to protect both people and system from electrical shock." "Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists." "It can be matched with any relay socket from RSZ range."

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110261196	-
10	BAG	13389110261193	-

Specifications

Design

Range of product	Harmony Electromechanical Relays
Product or component type	protection module
Product compatibility	socket RSZ (1 C/O) socket RSZ (2 C/O) socket RGZ (1 C/O) socket RGZ (2 C/O)
Product destination	RSB relay
Warranty	18 months

Physical

Sale per indivisible quantity	10
Net weight	0.004 kg
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1705013EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	Out
	At least in Europe
Average percentage of recycled plastic content	0 %
Package 3 bare product quantity	500
Package 2 bare product quantity	10
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	No
Accessory / separate part category	protection accessories
Accessory / separate part designation	diode + green LED
[uc] control circuit voltage	110...230 V DC
[uc] control circuit voltage	110...230 V
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.500 cm
Package 1 width	8.000 cm
Package 1 length	3.670 cm
Package 1 weight	2.000 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	1.500 cm
Package 2 width	8.000 cm
Package 2 length	11.000 cm
Package 2 weight	22.000 g
Unit type of package 3	S01
Number of units in package 3	500
Package 3 height	15.000 cm
Package 3 width	15.000 cm
Package 3 length	40.000 cm
Package 3 weight	1.372 kg
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.0273438889
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0002580444
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0000266394
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.0002840167
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.0279125894
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
