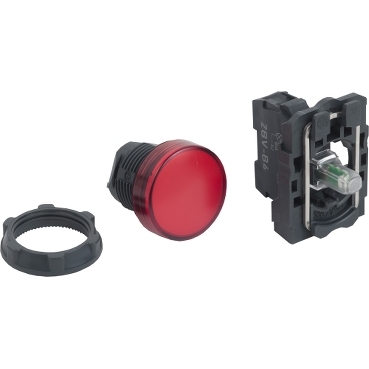

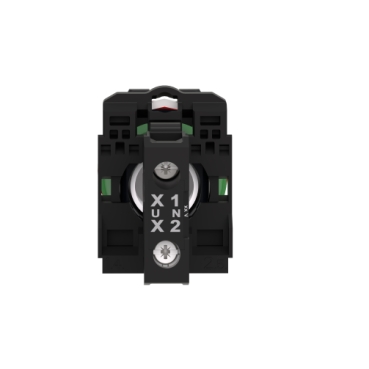

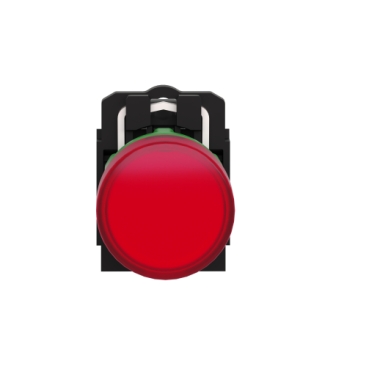

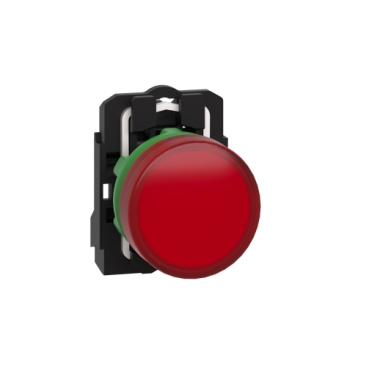

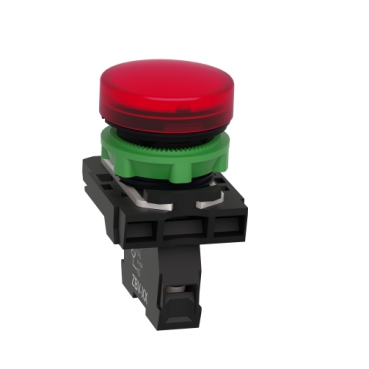

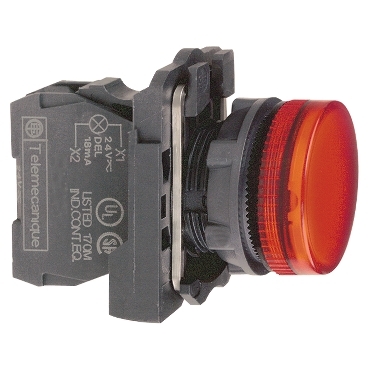

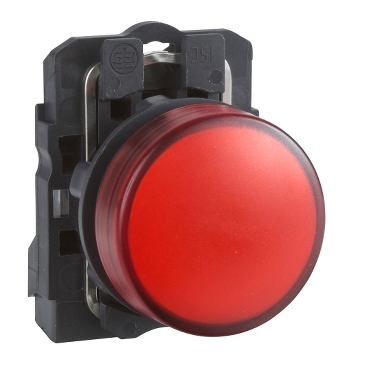

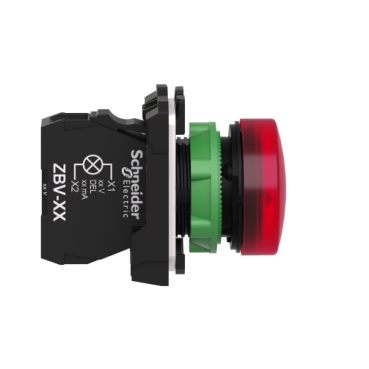

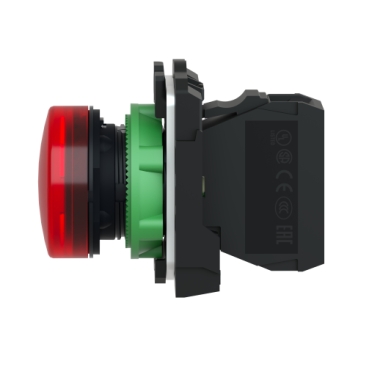

Harmony XB5 Pilot light grey plastic, red, 22mm, universal LED, plain lens, 24V AC DC

Item Number: XB5AVB4

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width30 mm

Height42 mm

Depth54 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110903782	-
5	PAC	53389110903787	-

Specifications

Design

Range of product

Harmony XB5

Product or component type

pilot light

Warranty

18 months

Physical

Sale per indivisible quantity

Device presentation

complete product

Height

42 mm

Width

30 mm

Depth

54 mm

Net weight

0.038 kg

Connections - terminals

screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
IP69 conforming to IEC 60529
IP69K conforming to ISO 20653

Ik degree of protection

IK05 conforming to IEC 50102

Standards

UL 508
IEC 60947-1
IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-5-1
IEC 60947-5-4
JIS C8201-1

Product certifications

CSA
UL listed

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308027EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Important message

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Package 1 bare product quantity

Legacy weee scope

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

XB5

Bezel material

dark grey plastic

Fixing collar material

plastic

Head type

standard

Mounting diameter

22.5 mm

Shape of signaling unit head

round

Cap/operator or lens colour

red

Operator additional information

with plain lens

Light source

universal LED

Bulb base

integral LED

Light source colour

red

[us] rated supply voltage

24 V AC/DC at 50/60 Hz

Terminals description iso n°1

(X1-X2)PL

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

[ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Signalling type

steady

Gcr bridge

XB5AVCUST03

Customizable

Compatibility code

XB5

Supply voltage limits

19.2...30 V DC
21.6...26.4 V AC

Current consumption

18 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-4-5

[us] rated supply voltage

24 V

Protective treatment

Overvoltage category

class II conforming to IEC 60536

Nema degree of protection

NEMA 13
NEMA 4X

Vibration resistance

5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Electromagnetic compatibility

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
electromagnetic emission class B conforming to IEC 55011

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Electromagnetic emission

class B conforming to IEC 55011

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3.500 cm

Package 1 width

5.500 cm

Package 1 length

8.500 cm

Package 1 weight

35.300 g

Unit type of package 2

S03

Number of units in package 2

150

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

5.762 kg

Unit type of package 3

P06

Number of units in package 3

1200

Package 3 height

75.000 cm

Package 3 width

80.000 cm

Package 3 length

60.000 cm

Package 3 weight

54.096 kg

Green premium status for reporting

Green Premium product

Product repair index - dam document id.

XB4BS8442-ENVREPAIR-A-EN

Total lifecycle carbon footprint

0.8 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.28994

Carbon footprint of the manufacturing phase [a1 to a3]

0.3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0049691333

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0147661667

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.3849577465

Carbon footprint of the use phase [b2, b3, b4, b6]

0.4 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.0659226111

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Take-back

Product contributes to saved and avoided emissions

Product repair index

Removable battery

N/A

Total lifecycle carbon footprint

0.7605556576

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

3d14fd98-3859-4733-a5ee-a3016769973c

Product repair index

End of life manual availability

ENVEOLI2308027EN

Take-back

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

Show all specifications

Documents & downloads

hide show

All
CAD Files and Packs
Technical Data Catalogues
Installation Instruction
End of Life Manual
Environmental Disclosure
Technical illustration
eTechPub
Certificate (Sustainability)
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Harmony XB5 Pilot light grey plastic, red, 22mm, universal LED, plain lens, 24V AC DC

Item Number: XB5AVB4

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

End of Life Manual

Environmental Disclosure

Technical illustration

eTechPub

Certificate (Sustainability)

Certificates (MSDS)

Declaration of Conformity

Declaration of Conformity (Sustainability)

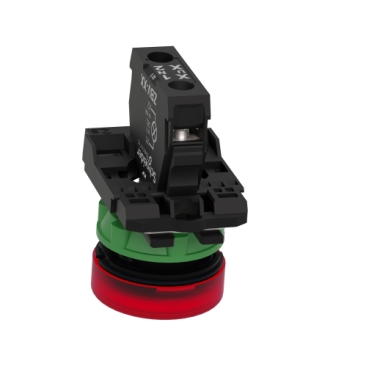

Pilot light, complete, Red - 3D CAD
