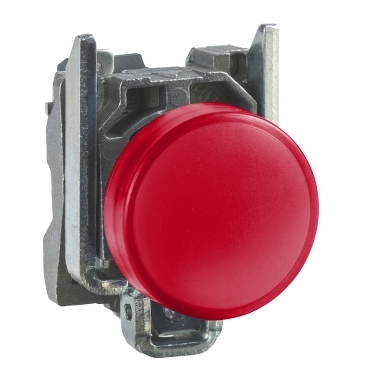

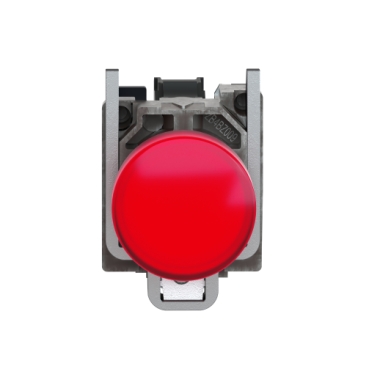

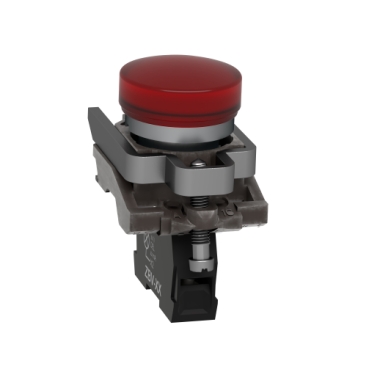

Pilot light, metal, red, Ø22, plain lens with integral LED, front view

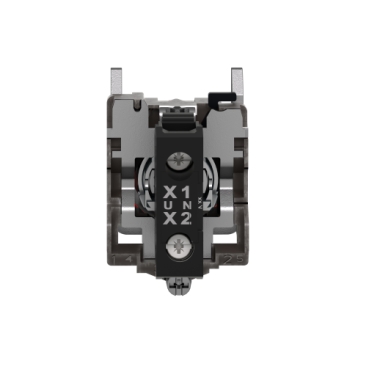

Pilot light, metal, red, Ø22, plain lens with integral LED, left view

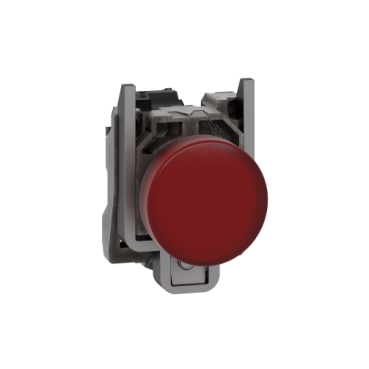

Pilot light, metal, red, Ø22, plain lens with integral LED, right view

Home ProductsIndustrialHarmonyPilot light

Harmony XB4 Pilot light grey plastic, red, 22mm, universal LED, plain lens, 24V AC DC

Item Number: XB4BVB4

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width30 mm

Height47 mm

Depth54 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110891935	-
5	PAC	53389110891930	-

Specifications

Design

Range of product	Harmony XB4
Product or component type	pilot light
Warranty	18 months

Physical

Sale per indivisible quantity	1
Height	47 mm
Width	30 mm
Depth	54 mm
Net weight	0.08 kg
Connections - terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1
Device presentation	complete product
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Ip degree of protection	IP66 conforming to IEC 60529 IP67 IP69 IP69K
Ik degree of protection	IK06 conforming to IEC 50102
Standards	IEC 60947-5-5 IEC 60947-5-4 JIS C8201-5-1 IEC 60947-5-1 IEC 60947-1 CSA C22.2 No 14 UL 508 JIS C8201-1
Product certifications	CSA UL listed
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2308026EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Important message	A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Legacy weee scope	In
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Package 1 bare product quantity	1
Average percentage of recycled plastic content	36 %
Device short name	XB4
Bezel material	chromium plated metal
Fixing collar material	zamak
Mounting diameter	22.5 mm
Head type	standard
Shape of signaling unit head	round
Cap/operator or lens colour	red
Operator additional information	with plain lens
Light source	universal LED
Bulb base	integral LED
Light source colour	red
[us] rated supply voltage	24 V AC/DC 50/60 Hz
Terminals description iso n°1	(X1-X2)PL
Resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
[ui] rated insulation voltage	250 V (pollution degree 3) conforming to IEC 60947-1
[uimp] rated impulse withstand voltage	4 kV conforming to IEC 60947-1
Signalling type	steady
[us] rated supply voltage	24 V
Current consumption	18 mA
Service life	100000 h at rated voltage and 25 °C
Surge withstand	1 kV conforming to IEC 61000-4-5
Customizable	no
Customizable	1
Gcr bridge	XB4BVCUST03
Compatibility code	XB4
Supply voltage limits	19.2...30 V DC 21.6...26.4 V AC
Protective treatment	TH
Electrical shock protection class	class I conforming to IEC 60536
Nema degree of protection	UL type 4X/13
Nema degree of protection	NEMA 13 NEMA 4X
Vibration resistance	5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Resistance to fast transients	2 kV conforming to IEC 61000-4-4
Resistance to electromagnetic fields	10 V/m conforming to IEC 61000-4-3
Resistance to electrostatic discharge	6 kV on contact (on metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
Electromagnetic emission	class B conforming to IEC 55011
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.8 cm
Package 1 width	3.4 cm
Package 1 length	5.4 cm
Package 1 weight	78 g
Unit type of package 2	S03
Number of units in package 2	150
Package 2 height	30 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	12.166 kg
Unit type of package 3	P06
Number of units in package 3	1200
Package 3 height	75 cm
Package 3 width	60 cm
Package 3 length	80 cm
Package 3 weight	107.692 kg

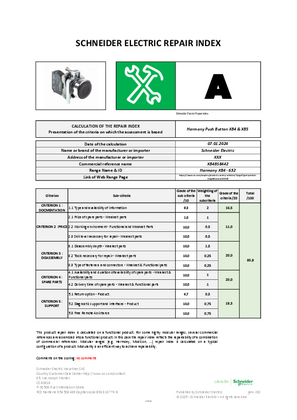

Product repair index - dam document id	XB4BS8442-ENVREPAIR-A-EN
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.6003009708737864
Carbon footprint of the manufacturing phase [a1 to a3]	0.6 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.010461165048543688
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.014819417475728154
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.1760704225352112
Carbon footprint of the use phase [b2, b3, b4, b6]	0.2 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.19918446601941747
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Product repair index	A
Removable battery	N/A
Total lifecycle carbon footprint	1.000836441952687
Average percentage of recycled plastic content	36 %
Average percentage of recycled metal content	17 %
Average percentage of recycled metal content	17 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	3d14fd98-3859-4733-a5ee-a3016769973c
China rohs label	5
Product repair index	A
End of life manual availability	ENVEOLI2308026EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
