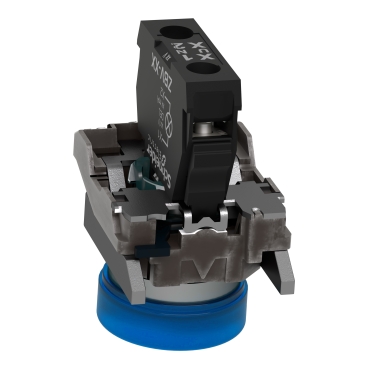

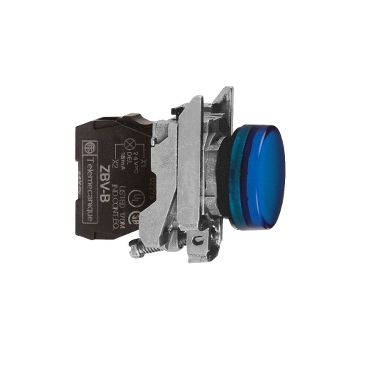

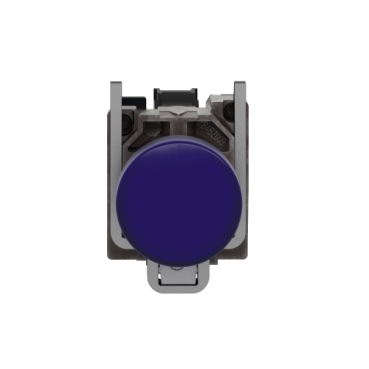

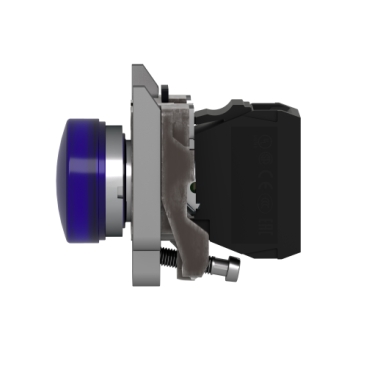

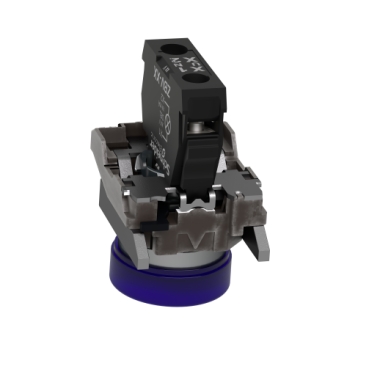

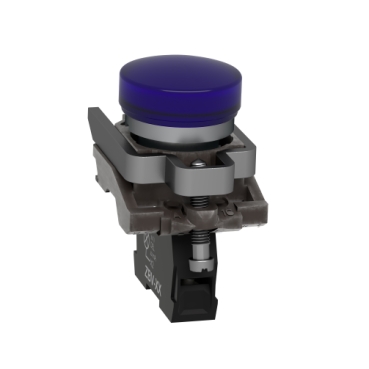

Harmony XB4 Pilot light grey plastic, blue, 22mm, universal LED, plain lens, 230...240V AC

Item Number: XB4BVM6

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width30 mm

Height47 mm

Depth54 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110119749	-
5	PAC	53389110119744	-

Specifications

Design

Range of product

Harmony XB4

Product or component type

pilot light

Warranty

18 months

Physical

Sale per indivisible quantity

Height

47 mm

Width

30 mm

Depth

54 mm

Net weight

0.08 kg

Connections - terminals

screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1

Device presentation

complete product

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529
IP67
IP69
IP69K

Ik degree of protection

IK06 conforming to IEC 50102

Standards

IEC 60947-5-1
UL 508
IEC 60947-1
IEC 60947-5-4
IEC 60947-5-5
JIS C8201-5-1
CSA C22.2 No 14
JIS C8201-1

Product certifications

UL listed
CSA

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308026EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Important message

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Package 1 bare product quantity

Legacy weee scope

Package 2 bare product quantity

150

At least in Europe

Package 3 bare product quantity

1200

Average percentage of recycled plastic content

0 %

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

XB4

Bezel material

chromium plated metal

Fixing collar material

zamak

Mounting diameter

22.5 mm

Head type

standard

Shape of signaling unit head

round

Cap/operator or lens colour

blue

Operator additional information

with plain lens

Light source

universal LED

Bulb base

integral LED

Light source colour

blue

[us] rated supply voltage

230...240 V AC 50/60 Hz

Terminals description iso n°1

(X1-X2)PL

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

[ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Signalling type

steady

[us] rated supply voltage

230...240 V

Current consumption

14 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-4-5

Customizable

Gcr bridge

XB4BVCUST04

Compatibility code

XB4

Supply voltage limits

195...264 V AC

Protective treatment

Electrical shock protection class

class I conforming to IEC 60536

Nema degree of protection

NEMA 13
NEMA 4X

Vibration resistance

5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Electromagnetic emission

class B conforming to IEC 55011

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

8.800 cm

Package 1 width

3.400 cm

Package 1 length

5.400 cm

Package 1 weight

78.000 g

Unit type of package 2

S03

Number of units in package 2

150

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

12.208 kg

Unit type of package 3

P06

Number of units in package 3

1200

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

108.732 kg

Product repair index - dam document id.

XB4BS8442-ENVREPAIR-A-EN

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

6 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.6003009708737864

Carbon footprint of the manufacturing phase [a1 to a3]

0.6 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.010461165048543688

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.014819417475728154

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

5.24950704225352

Carbon footprint of the use phase [b2, b3, b4, b6]

5 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.19918446601941747

Carbon footprint of the end-of-life phase [c1 to c4]

0.2 kg CO2 eq.

Take-back

Product contributes to saved and avoided emissions

Product repair index

Removable battery

N/A

Total lifecycle carbon footprint

6.074273061670996

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

3d14fd98-3859-4733-a5ee-a3016769973c

Product repair index

End of life manual availability

ENVEOLI2308026EN

Take-back

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)
