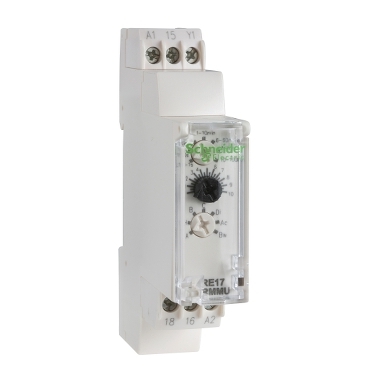

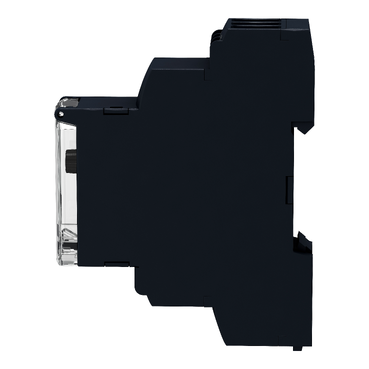

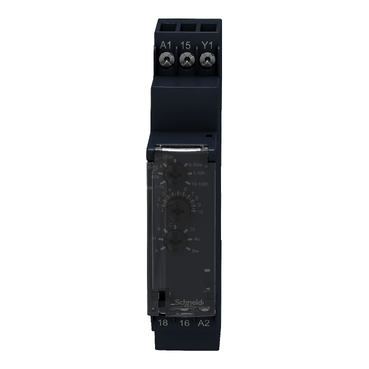

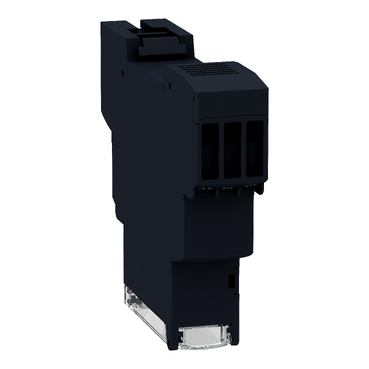

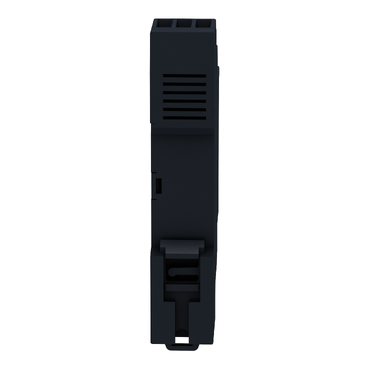

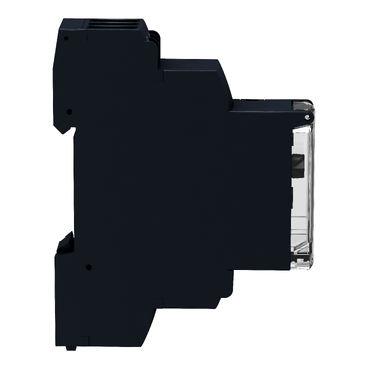

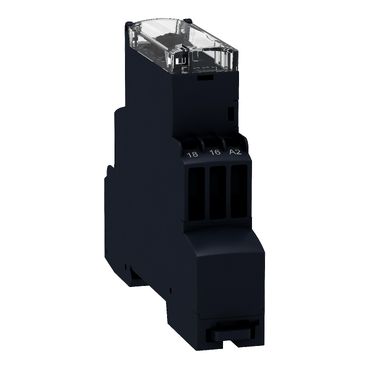

Harmony Timer Relays Modular timing relay 8A, 1CO, 1s..100h, multifunction, 24V DC / 24...240V AC/DC

Item Number: RE17RMMU

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width17.5 mm

Height90 mm

Depth72 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480552755	-

Specifications

Design

Range of product	Harmony Timer Relays
Product or component type	modular timing relay

Physical

Width	17.5 mm
Connections - terminals	screw connectors
[in] rated current	5 A
Height	90 mm
Depth	72 mm
Control type	selector switch front panel
Connections - terminals	screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
Insulation resistance	100 MOhm at 500 V DC conforming to IEC 60664-1
Electrical durability	100000 cycles (8 A at 250 V AC maximum) for resistive load
Mechanical durability	10000000 cycles
Marking	CE
Mounting position	any position in relation to normal vertical mounting plane
Mounting support	35 mm DIN rail conforming to IEC 60715
Local signalling	LED indicator for on steady: relay energised, no timing in progress LED indicator for flashing: timing in progress 80 % ON and 20 % OFF LED indicator for pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L) 5 % ON and 95 % OFF
Function available	A- Power on-delay relay-1 C/O Ac- On-delay and off-delay relay w/ control signal-1 C/O At- Power on-delay relay w/ pause/summation (Y1)-1 C/O B- Single interval relay w/ control signal-1 C/O Bw- Double interval relay w/ control signal-1 C/O C- Off-delay relay w/ control signal-1 C/O D- Symmetrical flashing relay (starting pulse-off)-1 C/O Di- Symmetrical flashing relay (starting pulse-on)-1 C/O H- Interval relay-1 C/O Ht- Interval relay w/ pause/summation (Y1)-1 C/O
Net weight	0.07 kg
Control type	without test button
Standards	2006/95/EC 2004/108/EC IEC 61812-1 IEC 61000-6-2 IEC 61000-6-3 IEC 61000-6-4 IEC 61000-6-1
Product certifications	CSA GL cULus
Ambient air temperature for storage	-30...60 °C
Ambient air temperature for operation	-20...60 °C
Ip degree of protection	IP20 (terminal block) conforming to IEC 60529 IP40 (housing) conforming to IEC 60529 IP50 (front panel) conforming to IEC 60529
Relative humidity	93 % without condensation conforming to IEC 60068...2-30
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1211017EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Contacts material	cadmium free

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	40
Average percentage of recycled plastic content	0 %
	At least in Europe
Legacy weee scope	Out
Package 3 bare product quantity	640
Warranty duration(in months) bmecat	18
Weee label	No
Discrete output type	relay
Device short name	RE17R
Time delay type	power on-delay on-delay and off-delay interval off-delay symmetrical flashing
Time delay range	6...60 min 1...10 h 0.1...1 s 1...10 s 1...10 min 10...100 h 6...60 s
Nominal output current	8 A
[uc] control circuit voltage	24 V 24...240 V
Output type	relay
Contacts type and composition	1 C/O
[us] rated supply voltage	24...240 V AC 50/60 Hz 24 V DC
Voltage range	0.85...1.1 Us
Supply frequency	50...60 Hz +/- 5 %
Input voltage	10 V
Tightening torque	0.6...1 N.m conforming to IEC 60947...1
Housing material	polycarbonate
Repeat accuracy	+/- 0.5 % conforming to IEC 61812-1
Temperature drift	+/- 0.05 %/°C
Voltage drift	+/- 0.2 %/V
Setting accuracy of time delay	+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
Time delay type	power on-delay - A- Power on-delay relay on-delay and off-delay - Ac- On-delay and off-delay relay w/ control signal power on-delay - At- Power on-delay relay w/ pause/summation (Y1) interval - B- Single interval relay w/ control signal interval - Bw- Double interval relay w/ control signal off-delay - C- Off-delay relay w/ control signal symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off) symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on) interval - H- Interval relay interval - Ht- Interval relay w/ pause/summation (Y1)
Impulse duration	100 ms with load in parallel typical 30 ms typical
Reset time	120 ms on de-energisation typical
On-load factor	100 %
Power consumption in va	0...32 VA at 240 V AC
Maximum power consumption in w	0.6 W at 24 V DC
Minimum switching current	10 mA at 5 V DC
Maximum switching current	8 A AC/DC
Maximum switching voltage	250 V AC
Breaking capacity	2000 VA
Operating rate in hz	10 Hz
Dielectric strength	2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1
[uimp] rated impulse withstand voltage	5 kV during 1.2/50 µs
Maximum delay response	100 ms
Creepage distance	4 kV/3 conforming to IEC 60664-1
Safety reliability data	B10d = 270000 MTTFd = 296.8 years
Number of functions	10
Time delay type	A, Ac, At, B, Bw, C, D, Di, H, Ht
Functionality	multifunction
Compatibility code	RE17
Immunity to microbreaks	20 ms
Vibration resistance	20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Electromagnetic compatibility	electrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2 electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2 susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3 electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4 electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5 conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6 voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11 voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11 conducted and radiated emissions: , class B, conforming to EN 55022
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.600 cm
Package 1 width	7.800 cm
Package 1 length	9.500 cm
Package 1 weight	80.000 g
Unit type of package 2	S02
Number of units in package 2	40
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	3.690 kg
Unit type of package 3	P06
Number of units in package 3	640
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	65.700 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	53 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.739695917470005
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.06709103234696433
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.000639052582699191
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	50.94880139552928
Carbon footprint of the use phase [b2, b3, b4, b6]	51 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.2004705802313585
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	52.95669797816031
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	7bdc2711-0ad2-427c-8ece-532c5e9f09d7
China rohs label	5
End of life manual availability	ENVEOLI121113EN
Take-back	No
Warranty (in months)	18
