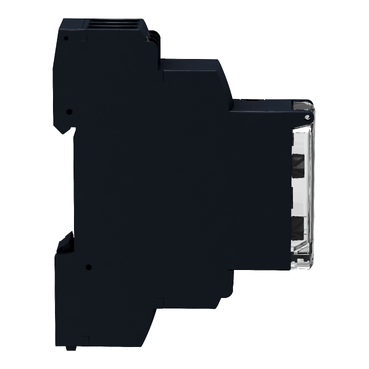

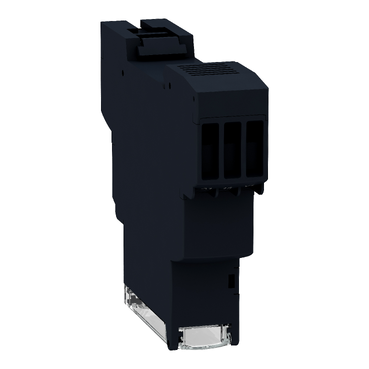

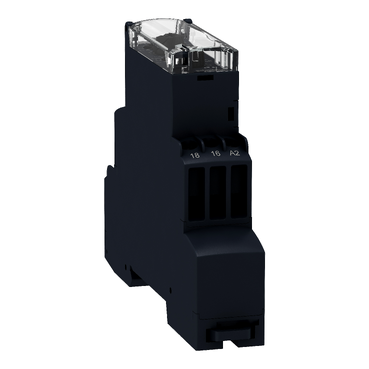

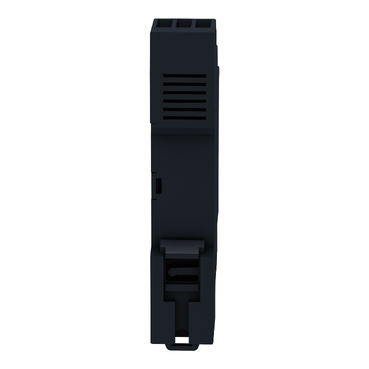

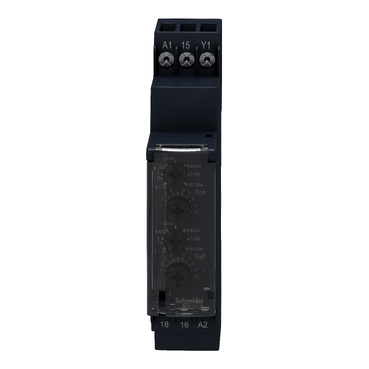

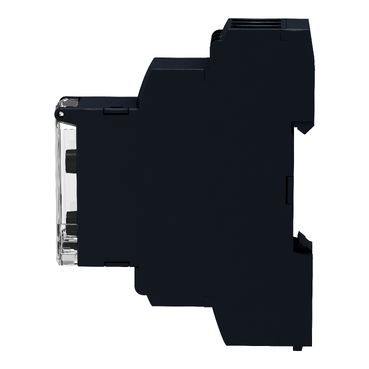

Harmony Timer Relays Modular timing relay 8A, 1CO, 1s..100h, asymmetrical flashing, 24V DC 24...240V AC DC

Home ProductsIndustrialHarmonyModular timing relay

Harmony Timer Relays Modular timing relay 8A, 1CO, 1s..100h, asymmetrical flashing, 24V DC 24...240V AC DC

Item Number: RE17RLMU

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width17.5 mm

Height icon

Height90 mm

Depth icon

Depth72 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Timer Relays

Product or component type

modular timing relay

Physical

Width

17.5 mm

Connections - terminals

screw connectors

[in] rated current

5 A

Height

90 mm

Depth

72 mm

Control type

selector switch front panel

Connections - terminals

  • screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end
  • screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
  • screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
  • screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end

Insulation resistance

100 MOhm at 500 V DC conforming to IEC 60664-1

Electrical durability

100000 cycles (8 A at 250 V AC maximum) for resistive load

Mechanical durability

10000000 cycles

Marking

CE

Mounting position

any position in relation to normal vertical mounting plane

Mounting support

35 mm DIN rail conforming to IEC 60715

Local signalling

  • LED indicator for on steady: relay energised, no timing in progress
  • LED indicator for flashing: timing in progress 80 % ON and 20 % OFF

Function available

  • L- Asymmetrical flashing relay (starting pulse-off)-1 C/O
  • Li- Asymmetrical flashing relay (starting pulse-on)-1 C/O

Net weight

0.07 kg

Control type

without test button

Standards

  • 2006/95/EC
  • IEC 61000-6-2
  • IEC 61000-6-4
  • 2004/108/EC
  • IEC 61812-1
  • IEC 61000-6-3
  • IEC 61000-6-1

Product certifications

  • GL
  • cULus
  • CSA

Ambient air temperature for storage

-30...60 °C

Ambient air temperature for operation

-20...60 °C

Ip degree of protection

  • IP20 (terminal block) conforming to IEC 60529
  • IP40 (housing) conforming to IEC 60529
  • IP50 (front panel) conforming to IEC 60529

Relative humidity

93 % without condensation conforming to IEC 60068...2-30

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP121117EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Contacts material

cadmium free

Others

Legacy weee scope

Out

Average percentage of recycled plastic content

0 %

At least in Europe

Package 1 bare product quantity

1

Weee label

No

Discrete output type

relay

Device short name

RE17R

Time delay type

asymmetrical flashing

Time delay range

  • 1...10 h
  • 1...10 s
  • 0.1...1 s
  • 6...60 min
  • 1...10 min
  • 10...100 h
  • 6...60 s

Nominal output current

8 A

[uc] control circuit voltage

  • 24 V
  • 24...240 V

Output type

relay

Contacts type and composition

1 C/O

[us] rated supply voltage

  • 24...240 V AC 50/60 Hz
  • 24 V DC

Voltage range

0.85...1.1 Us

Supply frequency

50...60 Hz +/- 5 %

Input voltage

10 V

Tightening torque

0.6...1 N.m conforming to IEC 60947...1

Housing material

self-extinguishing

Repeat accuracy

+/- 0.5 % conforming to IEC 61812-1

Temperature drift

+/- 0.05 %/°C

Voltage drift

+/- 0.2 %/V

Setting accuracy of time delay

+/- 10 % of full scale at 25 °C conforming to IEC 61812-1

Time delay type

  • asymmetrical flashing - L- Asymmetrical flashing relay (starting pulse-off)
  • asymmetrical flashing - Li- Asymmetrical flashing relay (starting pulse-on)

Impulse duration

  • 100 ms with load in parallel typical
  • 30 ms typical

Reset time

120 ms on de-energisation typical

On-load factor

100 %

Power consumption in va

0...32 VA at 240 V AC

Maximum power consumption in w

0.6 W at 24 V DC

Minimum switching current

10 mA at 5 V DC

Maximum switching current

8 A AC/DC

Maximum switching voltage

250 V AC

Breaking capacity

2000 VA

Operating rate in hz

10 Hz

Dielectric strength

2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1

[uimp] rated impulse withstand voltage

5 kV during 1.2/50 µs

Maximum delay response

100 ms

Creepage distance

4 kV/3 conforming to IEC 60664-1

Safety reliability data

  • MTTFd = 296.8 years
  • B10d = 270000

Number of functions

2

Time delay type

L, Li

Functionality

asymmetrical flashing timer

Compatibility code

RE17

Immunity to microbreaks

20 ms

Vibration resistance

20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Electromagnetic compatibility

  • electrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2
  • electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2
  • susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3
  • electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4
  • electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-4
  • 1.2/50 µs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-5
  • 1.2/50 µs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5
  • conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6
  • voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11
  • voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11
  • conducted and radiated emissions: , class B, conforming to EN 55022

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.8 cm

Package 1 width

7.8 cm

Package 1 length

9.6 cm

Package 1 weight

81.0 g

Unit type of package 2

S02

Number of units in package 2

40

Package 2 height

15.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

3.68 kg

Total lifecycle carbon footprint

53 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.7580085060749524

Carbon footprint of the manufacturing phase [a1 to a3]

2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.06779725374009025

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0006457794519907613

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

50.94880139552928

Carbon footprint of the use phase [b2, b3, b4, b6]

51 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.20258079686537278

Carbon footprint of the end-of-life phase [c1 to c4]

0.2 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

52.97783373166168

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

7bdc2711-0ad2-427c-8ece-532c5e9f09d7

End of life manual availability

ENVEOLI121113EN

Take-back

No

Warranty (in months)

18
