Harmony Timer Relays Modular timing relay 0.7A, 1s..100h, interval relay, solid state output, 24...240V AC

Item Number: RE17LHBM

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width17.5 mm

Height90 mm

Depth72 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480552649	-

Specifications

Design

Range of product	Harmony Timer Relays
Product or component type	modular timing relay

Physical

Width	17.5 mm
Connections - terminals	screw connectors
[in] rated current	0.7 A
Height	90 mm
Depth	72 mm
Control type	selector switch front panel
Insulation resistance	100 MOhm at 500 V DC conforming to IEC 60664-1
Connections - terminals	screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
Electrical durability	100000000 cycles
Marking	CE
Mounting position	any position in relation to normal vertical mounting plane
Mounting support	35 mm DIN rail conforming to IEC 60715

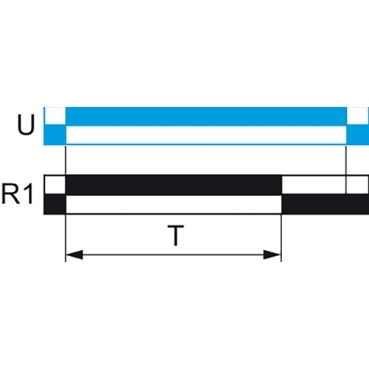

Function available	H- Interval relay-1 solid state output
Control type	without test button
Net weight	0.068 kg
Derating factor	5 mA/°C
Standards	2006/95/EC IEC 61000-6-1 IEC 61000-6-3 IEC 61000-6-2 IEC 61812-1 IEC 61000-6-4 2004/108/EC
Product certifications	cULus CSA GL
Ambient air temperature for storage	-30...60 °C
Ambient air temperature for operation	-20...60 °C
Ip degree of protection	IP20 (terminal block) conforming to IEC 60529 IP40 (housing) conforming to IEC 60529 IP50 (front panel) conforming to IEC 60529
Relative humidity	93 % without condensation conforming to IEC 60068...2-30
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1211017EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	Out
Package 2 bare product quantity	40
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	No
	At least in Europe
Discrete output type	solid state
Component name	RE17L
Time delay type	interval
Time delay range	1...10 s 1...10 h 0.1...1 s 6...60 s 6...60 min 1...10 min 10...100 h
Nominal output current	0.7 A
[uc] control circuit voltage	24...240 V
Contacts type and composition	1 C/O
Output type	solid state
[us] rated supply voltage	24...240 V AC 50/60 Hz
Voltage range	0.85...1.1 Us
Supply frequency	50...60 Hz +/- 5 %
Input voltage	9 V
Impulse duration	0.05 s typical
[uimp] rated impulse withstand voltage	5 kV during 1.2/50 µs
Maximum delay response	100 ms
Tightening torque	0.6...1 N.m conforming to IEC 60947...1
Dielectric strength	2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1
Housing material	polycarbonate
Repeat accuracy	+/- 0.5 % conforming to IEC 61812-1
Temperature drift	+/- 0.05 %/°C
Voltage drift	+/- 0.2 %/V
Setting accuracy of time delay	+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
Time delay type	interval - H- Interval relay
Reset time	350 ms on de-energisation typical
On-load factor	100 %
Power consumption in va	0...3 VA at 240 V AC
Maximum power consumption in w	1.5 W at 240 V DC
Breaking capacity	0.5 A AC conforming to UL 0.7 A AC at 20 °C
Operating rate in hz	10 Hz
Maximum output current	20 A
Minimum switching current	10 mA
Maximum leakage current	5 mA
Maximum switching voltage	250 V AC
Maximum voltage drop	<4 V 3-wire <8 V 2-wire
Creepage distance	4 kV/3 conforming to IEC 60664-1
Safety reliability data	MTTFd = 353.8 years B10d = 320000
Time delay type	H
Functionality	on-delay timing
Number of functions	1
Compatibility code	RE17
Immunity to microbreaks	20 ms
Vibration resistance	20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Electromagnetic compatibility	electrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2 electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2 susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3 electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4 electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5 conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6 voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11 voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11 conducted and radiated emissions: , class B, conforming to EN 55022
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.700 cm
Package 1 width	8.000 cm
Package 1 length	9.500 cm
Package 1 weight	69.000 g
Unit type of package 2	S02
Number of units in package 2	40
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	3.244 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	43 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.519944854210636
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.05861637562945304
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0005583301512003458
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	40.75904111642341
Carbon footprint of the use phase [b2, b3, b4, b6]	41 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.1751479806231869
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	42.51330865703789
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	7bdc2711-0ad2-427c-8ece-532c5e9f09d7
China rohs label	5
End of life manual availability	ENVEOLI121113EN
Take-back	No
Warranty (in months)	18
