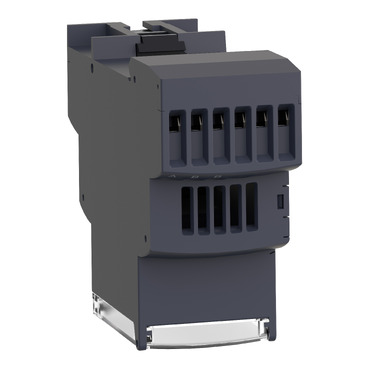

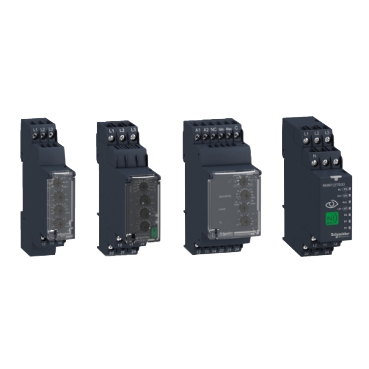

Harmony Control Relays Modular temperature Control Relay 5A, 2 NO, 24..240V AC/DC

Item Number: RM35ATR5MW

1 PCE 0

Where To Buy

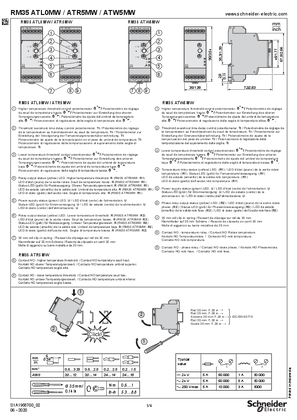

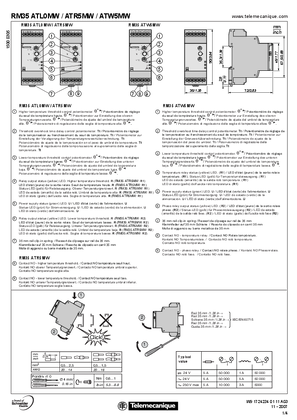

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389119405171	-

Specifications

Design

Range of product	Harmony Control Relays
Product or component type	elevator machine room temperature control relay
Warranty	18 months

Physical

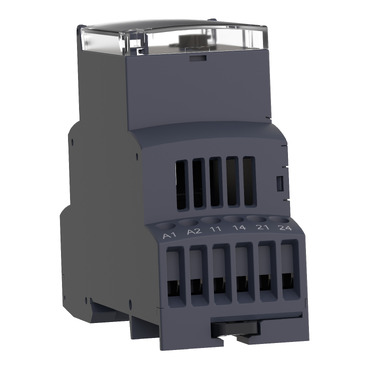

Connections - terminals	screw connectors
[in] rated current	5 A

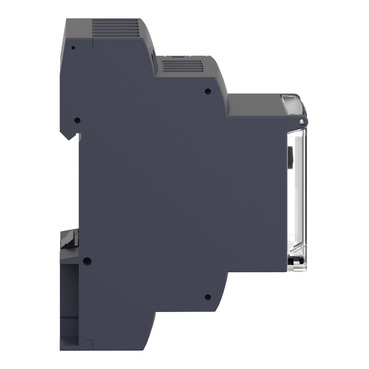

Width	35 mm

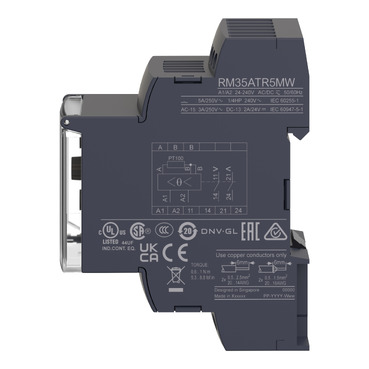

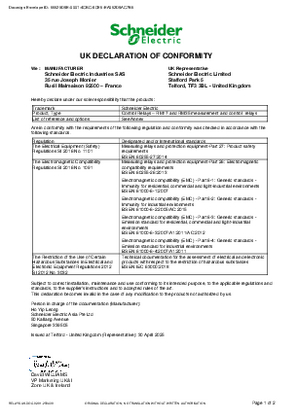

Marking	CE : EMC 89/336/EEC CE : 73/23/EEC
Insulation resistance	> 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5 > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1 > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5 > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1 > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5 > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1
Connections - terminals	screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end

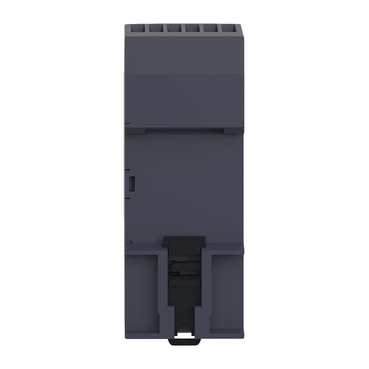

Mounting support	35 mm symmetrical DIN rail conforming to IEC 60715
Electrical durability	100000 cycles
Mechanical durability	30000000 cycles
Control type	without test button
Standards	IEC 60255-6 NF EN 60255-6

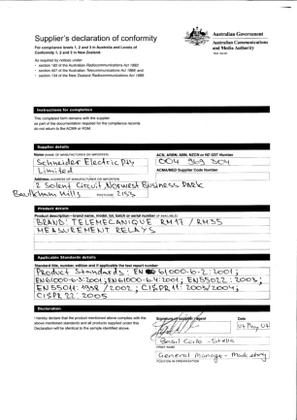

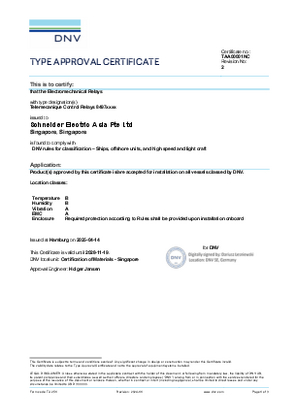

Product certifications	GL GOST C-Tick CSA UL
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-20...50 °C
Ip degree of protection	IP20 (terminals) conforming to IEC 60529 IP30 (casing) conforming to IEC 60529
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1504008EN
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Contacts material	cadmium free

Others

Package 1 bare product quantity	1
Legacy weee scope	Out
Weee label	No
	At least in Europe
Warranty duration(in months) bmecat	18
Relay type	temperature control relays
Product specific application	for elevator machine rooms and 3-phase supplies
Relay name	RM35AT
Relay monitored parameters	over temperature: 34...46°C under temperature: -1...11°C
Time delay range	0.1...10 s adjustable delay (tolerance: 0...10 % of the full scale value)
Switching capacity in va	1250 VA
Minimum switching current	10 mA at 5 V DC
Maximum power consumption in va	3.5 VA AC
Utilisation category	AC-12 conforming to IEC 60947-5-1 AC-13 conforming to IEC 60947-5-1 AC-14 conforming to IEC 60947-5-1 AC-15 conforming to IEC 60947-5-1 DC-12 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 DC-14 conforming to IEC 60947-5-1
Time delay type	adjustable 1...10 s Tt- time delay upon fault
Measurement range	+/- 1...46 °C
[uc] control circuit voltage	24...240 V
Contacts type and composition	2 NO
Reset time	8 s
Maximum switching voltage	250 V AC/DC
[us] rated supply voltage	24...240 V AC/DC
[us] rated supply voltage	24...240 V AC/DC 50/60 Hz, non self-powered
Supply voltage limits	20.4...264 V AC 21.6...264 V DC
Maximum power consumption in w	0.6 W DC
Resistance across terminals	1.33 kOhm at temperature
Output contacts	2 NO
Nominal output current	5 A
Run-up delay at power-up	0.2 s
Measurement accuracy	+/- 2 °C
Response time	<= 3.5 s + Tt (in case of temperature fault) <= 3.5 s (on disappearance of fault)
Temperature probe type	Pt 100 - 3-wire
Installed device	Pt 100 probe cable length <= 10 m
Overvoltage category	III conforming to IEC 60664-1
[ui] rated insulation voltage	250 V conforming to IEC 60664-1
Control circuit voltage limits	- 10 % + 10 % Un DC - 15 % + 10 % Un AC
Supply frequency	50/60 Hz +/- 10 %
Insulation	galvanic insulation between supply and measurement
Operating position	any position without derating
Tightening torque	0.6...1 N.m conforming to IEC 60947...1
Housing material	polycarbonate

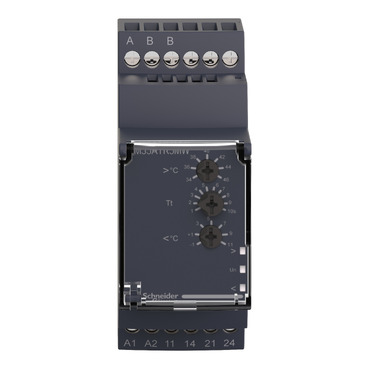

Status led	1 LED green for power ON 1 LED yellow for correct temperature (high R1) 1 LED yellow for correct temperature (low R2)
Operating rate	<= 360 operations/hour full load
Compatibility code	RM3
Immunity to microbreaks	10 ms
Electromagnetic compatibility	emission standard for industrial environments conforming to IEC 61000-6-4 emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 immunity for industrial environments conforming to NF EN/IEC 61000-6-2
Vibration resistance	0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 1 gn (f= 57.6-150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1
Shock resistance	15 gn for 11 ms conforming to IEC 60255-21-1
Pollution degree	3 conforming to IEC 60664-1
Dielectric test voltage	2 kV, 1 min AC 50 Hz
Non-dissipating shock wave	4 kV
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.52 cm
Package 1 width	4.4 cm
Package 1 length	9.7 cm
Package 1 weight	131.0 g
Unit type of package 2	S03
Number of units in package 2	48
Package 2 height	30.0 cm
Package 2 width	30.0 cm
Package 2 length	40.0 cm
Package 2 weight	7.001 kg
Sustainable packaging	Yes
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	5e3fdf99-611b-4d07-ad17-6eba84ab488b
China rohs label	5
End of life manual availability	ENVEOLI1504008EN
Warranty (in months)	18
