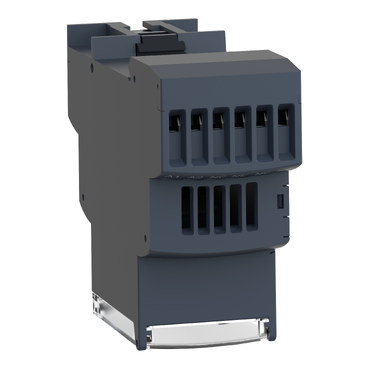

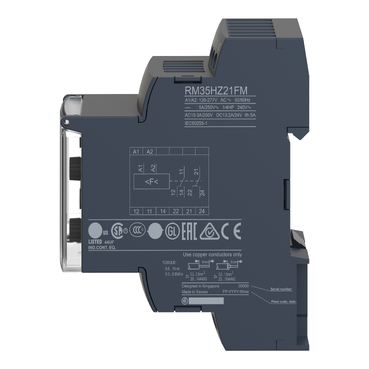

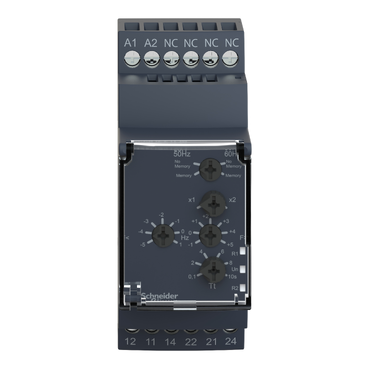

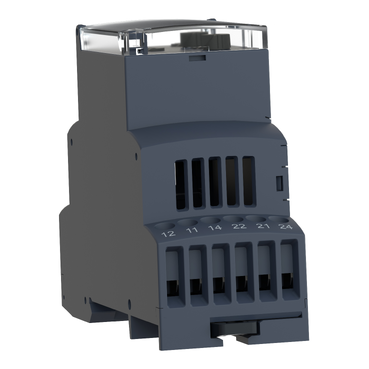

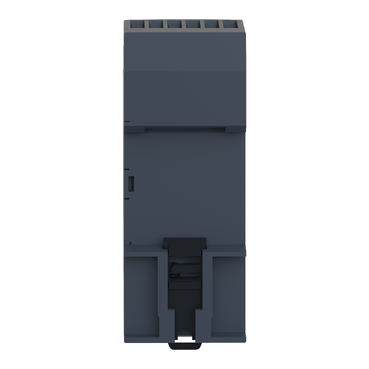

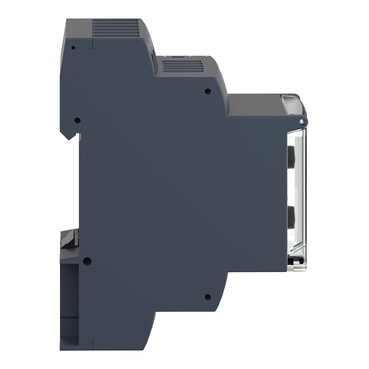

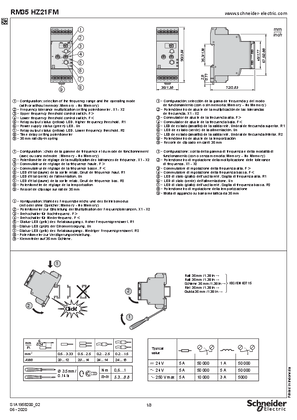

Harmony Control Relays Modular frequency Control Relay 5A, 1CO+1CO, 120…277V AC

Item Number: RM35HZ21FM

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389119405201	-

Specifications

Design

Range of product	Harmony Control Relays
Product or component type	frequency control relay
Warranty	18 months

Physical

Connections - terminals	screw connectors
[in] rated current	5 A
Width	35 mm
Marking	CE : 73/23/EEC CE : EMC 89/336/EEC
Insulation resistance	> 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5 > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1 > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5 > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1 > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5 > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1
Connections - terminals	screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
Mounting support	35 mm symmetrical DIN rail conforming to IEC 60715
Electrical durability	100000 cycles
Mechanical durability	30000000 cycles
Control type	without test button
Standards	IEC 60255-6 NF EN 60255-6
Product certifications	GL UL CSA C-Tick GOST
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-20...50 °C
Relative humidity	95 % at 55 °C conforming to IEC 60068...2-30
Ip degree of protection	IP20 (terminals) conforming to IEC 60529 IP30 (casing) conforming to IEC 60529
Mercury free	Yes
Environmental disclosure	ENVPEP1601004EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Contacts material	cadmium free

Others

Legacy weee scope	Out
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	48
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Relay type	frequency control relays
Relay name	RM35HZ21FM
Relay monitored parameters	overfrequency and underfrequency 50 or 60 Hz
Time delay type	adjustable 0.1...10 s, +/- 10 % Tt- time delay upon fault
Switching capacity in va	1250 VA
Minimum switching current	10 mA at 5 V DC
Maximum power consumption in va	6 VA AC
Measurement range	40...70 Hz
Utilisation category	AC-12 conforming to IEC 60947-5-1 AC-13 conforming to IEC 60947-5-1 AC-14 conforming to IEC 60947-5-1 AC-15 conforming to IEC 60947-5-1 DC-12 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 DC-14 conforming to IEC 60947-5-1
[uc] control circuit voltage	120...277 V
Contacts type and composition	2 C/O
Reset time	2000 ms time delay
Maximum switching voltage	250 V AC/DC
[us] rated supply voltage	120...277 V AC
[us] rated supply voltage	120...277 V AC, non self-powered
Supply voltage limits	102...308 V AC
Control circuit frequency	40...70 Hz
Output contacts	1 C/O + 1 C/O
Nominal output current	5 A
Input frequency	70 Hz
Maximum measuring cycle	200 ms measurement cycle as true rms value
Run-up delay at power-up	0.5 s
Hysteresis	0.3...0.3 % fixed
Measurement accuracy	+/- 10 % of the full scale value in input +/- 10 % of the full scale value in time delay
Repeat accuracy	+/- 0.5 % for input and measurement circuit +/- 0.5 % for time delay
Measurement error	+/- 0.05 %/°C with temperature variation < +/- 1 % over the whole range with voltage variation
Threshold setting	-2...10 Hz -10...2 Hz
Overvoltage category	III conforming to IEC 60664-1
[ui] rated insulation voltage	400 V conforming to IEC 60664-1
Control circuit voltage limits	- 15 % + 10 % Un
Supply frequency	50/60 Hz +/- 10 %
Insulation	no galvanic insulation between supply and measurement
Operating position	any position without derating
Tightening torque	0.6...1 N.m conforming to IEC 60947...1
Housing material	polycarbonate
Status led	1 LED green for power ON 1 LED yellow for correct frequency (high R1) 1 LED yellow for correct frequency (low R2)
Operating rate	<= 360 operations/hour full load
Compatibility code	RM3
Immunity to microbreaks	10 ms
Electromagnetic compatibility	emission standard for industrial environments conforming to IEC 61000-6-4 emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 immunity for industrial environments conforming to NF EN/IEC 61000-6-2
Vibration resistance	0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 1 gn (f= 57.6-150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1
Shock resistance	15 gn for 11 ms conforming to IEC 60255-21-1
Pollution degree	3 conforming to IEC 60664-1
Dielectric test voltage	2 kV AC 50 Hz
Non-dissipating shock wave	4 kV
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.600 cm
Package 1 width	8.000 cm
Package 1 length	9.700 cm
Package 1 weight	126.000 g
Unit type of package 2	S03
Number of units in package 2	48
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	6.838 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	36 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	8.417139325189062
Carbon footprint of the manufacturing phase [a1 to a3]	8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.01634580424665503
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.04055864601512507
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	26.8064
Carbon footprint of the use phase [b2, b3, b4, b6]	27 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.23466586678301338
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	35.51510964223385
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	5
End of life manual availability	ENVEOLI1601004EN
Take-back	No
Warranty (in months)	18
