Harmony Electromechanical Relays Maintaining clamp for RXM sockets except push in socket RXZE14P, plastic

Home ProductsIndustrialHarmonyMaintaining clamp

Harmony Electromechanical Relays Maintaining clamp for RXM sockets except push in socket RXZE14P, plastic

Item Number: RXZR335

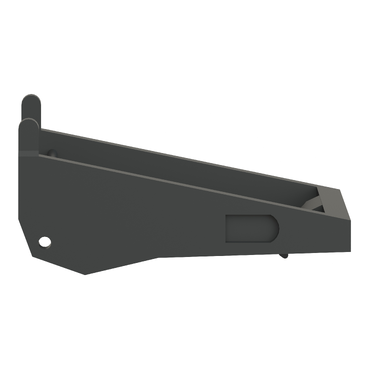

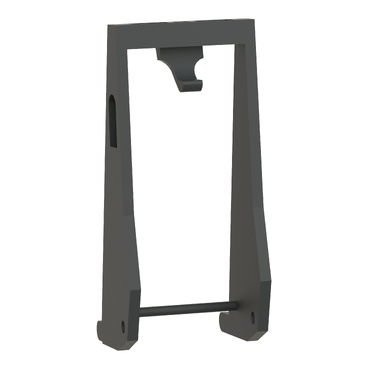

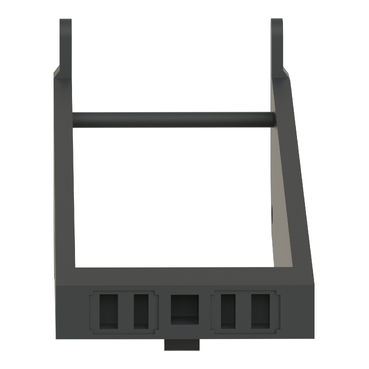

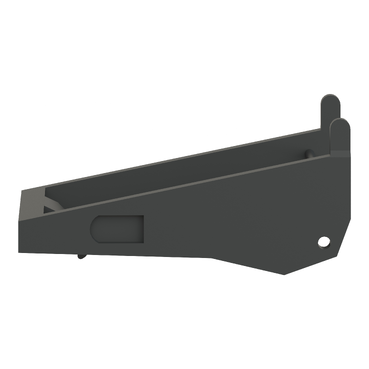

This Harmony RXZ maintaining clamp has a plastic body. It is compatible with socket RXZ with 2 C/O, 3 C/O and 4 C/O. This mounting accessory is ideal to secure the relay socket in place. It can be matched with any relay socket from RXZ range.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

maintaining clamp

Product destination

RXM relay

Product compatibility

  • socket RXZ (2 C/O)
  • socket RXZ (3 C/O)
  • socket RXZ (4 C/O)

Warranty

18 months

Physical

Sale per indivisible quantity

10

Net weight

0.005 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1511021EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory, kit or spare part - derogation applied

Package 3 bare product quantity

200

Package 4 bare product quantity

6400

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

10

Package 1 bare product quantity

1

Legacy weee scope

Out

Substance regulation data deliverable

Yes

At least in Europe

Weee label

No

Accessory / separate part category

mounting accessory

Accessory material

plastic

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.400 cm

Package 1 width

2.600 cm

Package 1 length

6.000 cm

Package 1 weight

3.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

3.500 cm

Package 2 width

10.000 cm

Package 2 length

13.000 cm

Package 2 weight

38.000 g

Unit type of package 3

S01

Number of units in package 3

200

Package 3 height

15.000 cm

Package 3 width

15.000 cm

Package 3 length

40.000 cm

Package 3 weight

995.000 g

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
