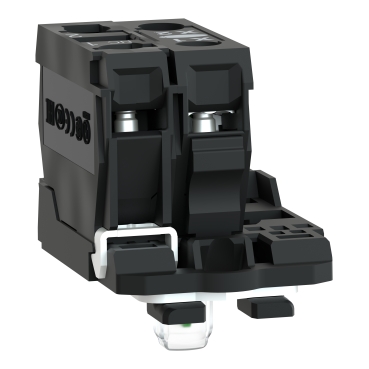

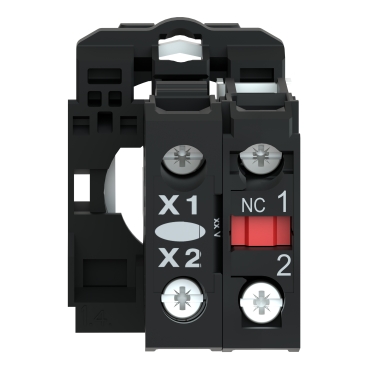

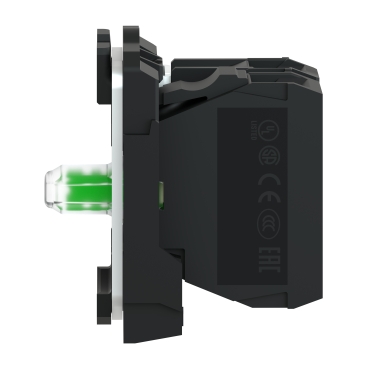

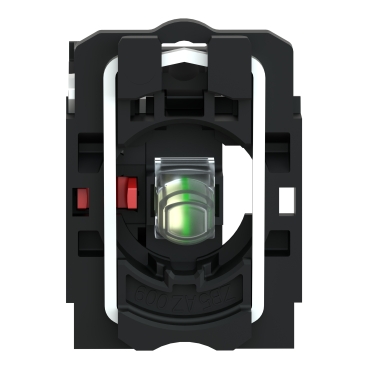

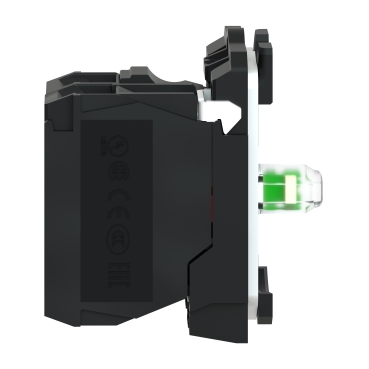

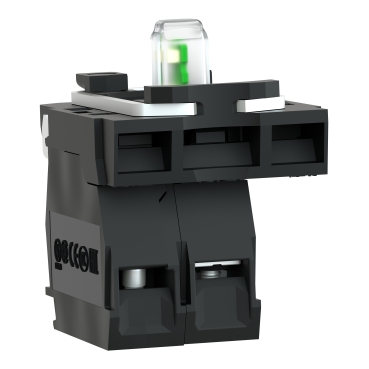

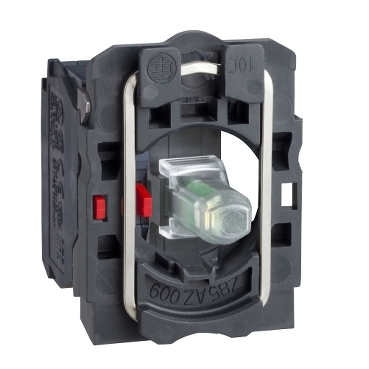

Harmony XB5 Light block with body fixing collar plastic, red, integral LED, 24V AC DC, 1NC

Item Number: ZB5AW0B42

1 PCE 0

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110908510	-
5	PAC	53389110908515	-

Specifications

Design

Range of product	Harmony XB5
Product or component type	complete body/contact assembly and light block
Warranty	18 months

Physical

Sale per indivisible quantity	1
Connections - terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1
Net weight	0.032 kg
Mechanical durability	5000000 cycles
[ie] rated operational current	3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
Electrical durability	1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
Device presentation	basic sub-assemblies
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Standards	EN/IEC 60947-1 UL 508 EN/IEC 60947-5-4 JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-5-1 JIS C8201-1
Product certifications	BV LROS (Lloyds register of shipping) CSA GL DNV UL listed
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2404014_V1
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Contacts material	silver alloy (Ag/Ni)

Others

Important message	All colored LED are replaced with a single Universal LED block for use with new illuminated heads (more information at se.com/harmonyxb4 or se.com/harmonyxb5)
Package 1 bare product quantity	1
Legacy weee scope	In
Average percentage of recycled plastic content	16 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	ZB5
Fixing collar material	plastic
Head type	standard
Contacts type and composition	1 NC
Contact operation	slow-break
Light source	protected LED
Bulb base	integral LED
Light block supply	direct
Light source colour	red
Cad overall width	30 mm
Cad overall height	42 mm
Cad overall depth	32 mm
Terminals description iso n°1	(11-12)NC
Contacts usage	standard
Positive opening	with conforming to EN/IEC 60947-5-1 appendix K
Operating travel	1.5 mm (NC changing electrical state) 4.3 mm (total travel)
Operating force	2 N NC changing electrical state
Tightening torque	0.8...1.2 N.m conforming to EN 60947...1
Shape of screw head	cross compatible with Philips no 1 screwdriver cross compatible with pozidriv No 1 screwdriver slotted compatible with flat Ø 4 mm screwdriver slotted compatible with flat Ø 5.5 mm screwdriver
Short-circuit protection	10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
[ith] conventional free air thermal current	10 A conforming to EN/IEC 60947-5-1
[ui] rated insulation voltage	600 V (pollution degree 3) conforming to EN 60947-1
[uimp] rated impulse withstand voltage	6 kV conforming to EN 60947-1
Electrical reliability	λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4 λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4
Signalling type	steady
[us] rated supply voltage	24 V AC/DC at 50/60 Hz
Supply voltage limits	19.2...30 V DC 21.6...26.4 V AC
Current consumption	18 mA
Service life	100000 h at rated voltage and 25 °C
Surge withstand	1 kV conforming to IEC 61000-4-5
Customizable	no
Customizable	0
Compatibility code	ZB5
[us] rated supply voltage	24 V
Protective treatment	TH
Electrical shock protection class	class II conforming to IEC 60536
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Resistance to fast transients	2 kV conforming to IEC 61000-4-4
Resistance to electromagnetic fields	10 V/m conforming to IEC 61000-4-3
Resistance to electrostatic discharge	6 kV on contact (on metal parts) conforming to IEC 61000-2-6 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6
Electromagnetic emission	class B conforming to IEC 55011
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.2 cm
Package 1 width	5.0 cm
Package 1 length	5.2 cm
Package 1 weight	29.0 g
Unit type of package 2	S02
Number of units in package 2	100
Package 2 height	15 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	3.211 kg
Total lifecycle carbon footprint	8 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.22305882352941178
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.009224099821746882
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0088698752228164
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	7.320915492957744
Carbon footprint of the use phase [b2, b3, b4, b6]	7 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.07397076648841354
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Total lifecycle carbon footprint	7.636039058020133
Average percentage of recycled plastic content	16 %
Average percentage of recycled metal content	29 %
Average percentage of recycled metal content	29 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	5
End of life manual availability	ENVEOLI2404014EN
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
End of Life Manual
Environmental Disclosure
Installation Instruction
Technical illustration
Technical Drawing
Certificates (MSDS)
eTechPub
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Harmony XB5 Light block with body fixing collar plastic, red, integral LED, 24V AC DC, 1NC

Item Number: ZB5AW0B42

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

End of Life Manual

Environmental Disclosure

Installation Instruction

Technical illustration

Technical Drawing

Certificates (MSDS)

eTechPub

Declaration of Conformity

Declaration of Conformity (Sustainability)

ZB5AW0B42_CAD_DOC

Body\Connection by screw clamp\With integrated LED\1 N/C contact - ZB5AW0..2

Body\Connection by screw clamp\With integrated LED\1 N/C contact - ZB5AW0..2

750 Series Hermetically Sealed Relay

750 Series Hermetically Sealed Relay

XB4.. / XB5... Mounting, Instruction Sheet

Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions

ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)

Technical Illustration - Dimensions

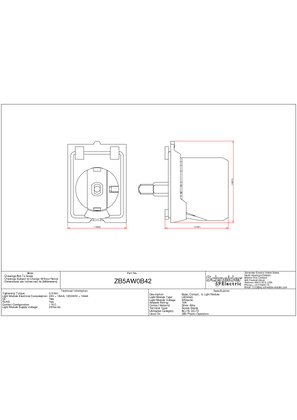

ZB5AW0B42_2DSalesDrawing_PDF
