Harmony Electromechanical Relays Interface plug in relay 16A, 1CO, 230V AC

Home ProductsIndustrialHarmonyInterface plug in relay

Harmony Electromechanical Relays Interface plug in relay 16A, 1CO, 230V AC

Item Number: RSB1A160P7

This Harmony RSB interfacing plug-in relay has a control coil voltage of 230V AC and has 1 changeover contact single pole double throw with a rating of 16A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

plug-in relay

Warranty

18 months

Physical

Control type

without lockable test button

[in] rated current

16 A

[ue] rated operational voltage

184...345 V AC 50/60 Hz

[ie] rated operational current

  • 16 A (AC-1/DC-1) NO conforming to IEC
  • 8 A (AC-1/DC-1) NC conforming to IEC

Mechanical durability

10000000 cycles

Electrical durability

  • 100000 cycles, 16 A at 250 V, AC-1 NO
  • 100000 cycles, 8 A at 250 V, AC-1 NC

Device presentation

complete product

Sale per indivisible quantity

10

Net weight

0.014 kg

Ip degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for operation

-40...70 °C (AC)

Standards

  • IEC 61810-1
  • CSA C22.2 No 14
  • UL 508

Product certifications

  • UL
  • CSA
  • EAC

Ambient air temperature for storage

-40...85 °C

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2403026EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Contacts material

silver alloy (AgNi)

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Package 3 bare product quantity

350

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Series name

RSB series

Relay type

interface relay

Contacts type and composition

1 C/O

Status led

without

[uc] control circuit voltage

230 V

[uc] control circuit voltage

230 V AC 50/60 Hz

Control circuit type

AC

[ithe] conventional enclosed thermal current

16 A at -40-40 °C

Average resistance

33000 Ohm network: AC at 20 °C +/- 10 %

[uimp] rated impulse withstand voltage

3.6 kV conforming to IEC 61000-4-5

[ui] rated insulation voltage

400 V conforming to IEC 60947

Maximum switching voltage

300 V DC conforming to IEC

Drop-out voltage threshold

>= 0.15 Uc AC

Load current

  • 16 A at 250 V AC
  • 16 A at 28 V DC

Minimum switching current

10 mA

Maximum switching capacity

4000 VA/448 W

Switching voltage

12 V

Minimum switching capacity

120 mW at 10 mA, 12 V

Operating time

  • 20 ms operating
  • 20 ms reset

Safety reliability data

B10d = 100000

Operating rate

  • <= 600 cycles/hour under load
  • <= 18000 cycles/hour no-load

Average coil consumption

0.75 VA AC

Presentation of legend

without

Protection category

RT I

Operating position

any position

Test levels

level A group mounting

Shape of pin

flat (PCB type)

Compatibility code

RSB

Dielectric strength

  • 1000 V AC between contacts
  • 2500 V AC between poles
  • 5000 V AC between coil and contact

Vibration resistance

+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6

Shock resistance

  • 10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27
  • 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.700 cm

Package 1 width

2.500 cm

Package 1 length

31.100 cm

Package 1 weight

12.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

1.700 cm

Package 2 width

2.900 cm

Package 2 length

33.100 cm

Package 2 weight

144.000 g

Unit type of package 3

S01

Number of units in package 3

350

Package 3 height

15.000 cm

Package 3 width

15.000 cm

Package 3 length

40.000 cm

Package 3 weight

5.755 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

8 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.1335755258

Carbon footprint of the manufacturing phase [a1 to a3]

0.1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0019614723

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0000964245

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

8.2803020431

Carbon footprint of the use phase [b2, b3, b4, b6]

8 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.0250506692

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

8.4409861348

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

45b41055-6c52-408d-9c0c-5c663b810f29

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • Technical illustration

  • eTechPub

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Interface plug-in relay - Zelio RSB - 1 C/O - 12/16A - 3D CAD
ZIP

Interface plug-in relay - Zelio RSB - 1 C/O - 12/16A - 3D CAD

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 274 KB
Harmony Electromechanical Relays Catalog - EN
ZIP

Harmony Electromechanical Relays Catalog - EN

VERSION

1.0

DATE

07 Oct 2025

REVISION

1.0
750 Series Hermetically Sealed Relay
ZIP

750 Series Hermetically Sealed Relay

VERSION

1.0

DATE

17 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

1.0

DATE

30 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 394.7 KB
English
ZIP

English

VERSION

17.0

DATE

13 Aug 2025

REVISION

17.0

DOWNLOAD (ZIP) 5.9 MB

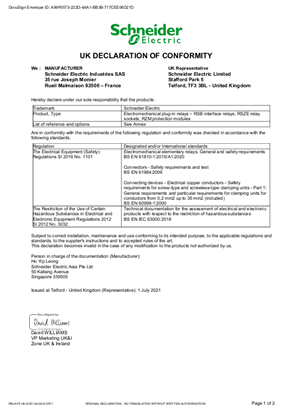

Manufacturer UK DOC RSB RSZE
