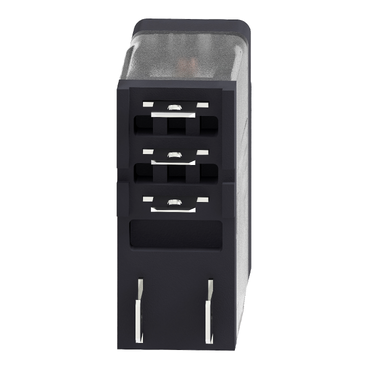

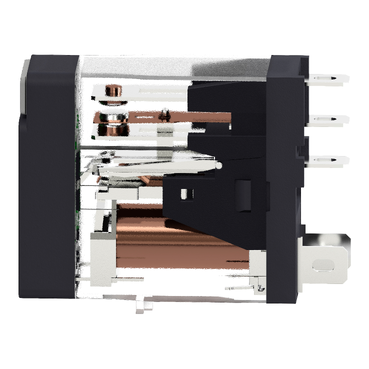

Harmony Electromechanical Relays Interface plug in relay 10A, 1CO, with LED, 24V DC

Item Number: RXG13BD

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480688843	-

Specifications

Design

Range of product	Harmony Electromechanical Relays
Product or component type	plug-in relay

Physical

[in] rated current	10 A
Local signalling	flag
Electrical durability	100000 cycles for NO resistive load at 55 °C 100000 cycles for NC resistive load at 55 °C
[ie] rated operational current	10 A at 30 V (DC) conforming to UL 10 A at 30 V (DC) conforming to IEC 10 A at 250 V (AC) conforming to UL 10 A at 250 V (AC) conforming to IEC
Control type	without lockable test button
Contact resistance	100 mOhm
Insulation resistance	1000 MOhm at 500 V DC
Electrical insulation class	class F
Mechanical durability	10000000 cycles
Device presentation	complete product
Net weight	0.02 kg
Standards	CSA C22.2 No 14 IEC 61810-1 UL 508
Product certifications	CSA CE EAC UL DNV
Ambient air temperature for storage	-40...85 °C
Ambient air temperature for operation	-40...70 °C
Ip degree of protection	IP40
Relative humidity	10...85 %
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2208012EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Contacts material	silver alloy (AgSnO2In2O3)

Others

Package 2 bare product quantity	10
Package 3 bare product quantity	380
Package 1 bare product quantity	1
	At least in Europe
Legacy weee scope	Out
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	No
Series name	RXG series
Relay type	interface relay
Contacts type and composition	1 C/O
[uc] control circuit voltage	24 V
[uc] control circuit voltage	24 V DC
Control circuit type	DC
[ithe] conventional enclosed thermal current	10 A at -40-55 °C
Status led	with
[ui] rated insulation voltage	250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL
Presentation of legend	with
Maximum switching voltage	250 V AC 30 V DC
Drop-out voltage threshold	>= 0.1 Uc DC
Load current	10 A at 250 V AC
Minimum switching capacity	500 mW at 100 mA, 5 V DC
Maximum switching capacity	2500 VA
Average resistance	1100 Ohm at 23 °C +/- 10 %
Safety reliability data	B10d = 100000
Operating rate	<= 1800 cycles/hour under load <= 18000 cycles/hour no-load
Utilisation coefficient	20 %
Operating time	20 ms
Reset time	20 ms
Dielectric strength	1000 V AC between contacts with micro disconnection 5000 V AC between coil and contact with reinforced insulation 1300 V AC terminals and case with basic insulation
[uimp] rated impulse withstand voltage	1200 V AC between contacts with micro disconnection 6000 V between coil and contact with reinforced insulation 1500 V between terminals and case with basic insulation
Overvoltage category	III
Protection category	RT I
Pollution degree	2
Test levels	level A group mounting
Shape of pin	flat (faston type)
Vibration resistance	3 gn, amplitude = +/- 0.75 mm (f = 10-150 Hz)in operation 5 gn, amplitude = +/- 0.75 mm (f = 10-150 Hz)not in operation
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.300 cm
Package 1 width	3.200 cm
Package 1 length	4.200 cm
Package 1 weight	20.000 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	3.600 cm
Package 2 width	8.400 cm
Package 2 length	9.300 cm
Package 2 weight	225.000 g
Unit type of package 3	S02
Number of units in package 3	380
Package 3 height	15.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	9.120 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	8 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.1841355813711413
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.06551564855924241
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0007132401944399417
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	7.743442449273411
Carbon footprint of the use phase [b2, b3, b4, b6]	8 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.06466599441775461
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	8.05847291381599
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
End of life manual availability	ENVEOLI2208012EN
Take-back	No
Warranty (in months)	18
