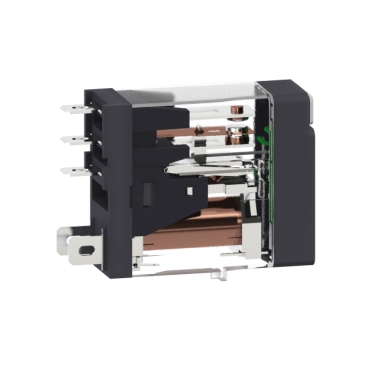

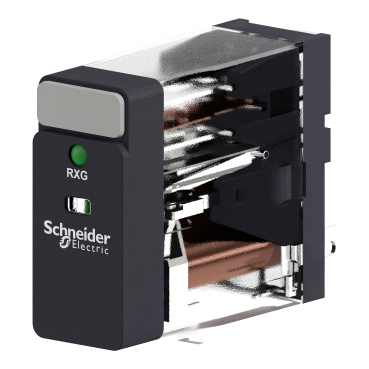

Harmony Electromechanical Relays, Interface plug in relay, 10A, 1CO, with LED, 24V AC

Home ProductsIndustrialHarmonyInterface plug in relay

Harmony Electromechanical Relays, Interface plug in relay, 10A, 1CO, with LED, 24V AC

Item Number: RXG13B7

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

plug-in relay

Physical

[in] rated current

10 A

Local signalling

flag

Contact resistance

100 mOhm

Insulation resistance

1000 MOhm at 500 V DC

Electrical insulation class

class F

Mechanical durability

10000000 cycles

Device presentation

complete product

Net weight

0.02 kg

Standards

CSA C22.2 No 14|UL 508|IEC 61810-1

Product certifications

EAC|CSA|UL|CE|DNV-GL

Ambient air temperature for storage

-40...85 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP40

Relative humidity

10...85 %

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1406006EN

Circularity profile

N/A

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Contacts material

silver alloy (AgSnO2In2O3)

Others

Package 1 bare product quantity

1

Series name

interface relay

Device short name

RXG

Contacts type and composition

1 C/O

[uc] control circuit voltage

24 V

[ithe] conventional enclosed thermal current

10 A at -40-55 °C

[ui] rated insulation voltage

250 V conforming to IEC|300 V conforming to CSA|300 V conforming to UL

Maximum switching voltage

250 V AC|30 V DC

Drop-out voltage threshold

>= 0.3 Uc AC

Load current

10 A at 250 V AC

Minimum switching capacity

500 mW at 100 mA, 5 V DC

Maximum switching capacity

2500 VA

Safety reliability data

B10d = 100000

Operating rate

<= 1800 cycles/hour under load|<= 18000 cycles/hour no-load

Utilisation coefficient

20 %

Operating time

20 ms

Reset time

20 ms

Dielectric strength

1000 V AC between contacts with micro disconnection|5000 V AC between coil and contact with reinforced insulation

Overvoltage category

III

Protection category

RT I

Pollution degree

2

Test levels

level A group mounting

Vibration resistance

3 gn, amplitude = +/- 0.75 mm (f = 10-150 Hz)in operation|5 gn, amplitude = +/- 0.75 mm (f = 10-150 Hz)not in operation

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.45 cm

Package 1 width

9.25 cm

Package 1 length

8.6 cm

Package 1 weight

221 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

3.5 cm

Package 2 width

8.3 cm

Package 2 length

9.1 cm

Package 2 weight

229 g

Unit type of package 3

S01

Number of units in package 3

200

Package 3 height

15 cm

Package 3 width

15 cm

Package 3 length

40 cm

Package 3 weight

4.86 kg

Green premium status for reporting

Green Premium product

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Sustainable packaging

Yes

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

10.3006004732
