Harmony XVB Indicator bank illuminated unit, plastic, red, 70mm, steady, bulb or LED not included, 250V

Home ProductsIndustrialHarmonyIndicator bank

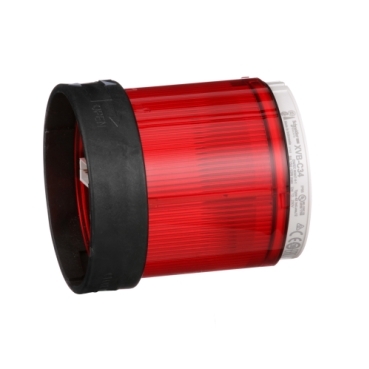

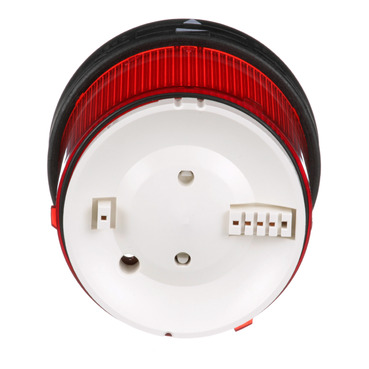

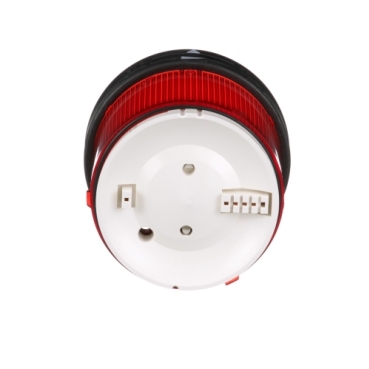

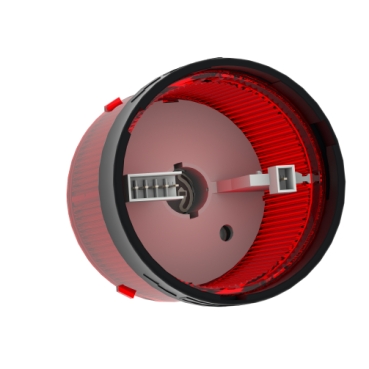

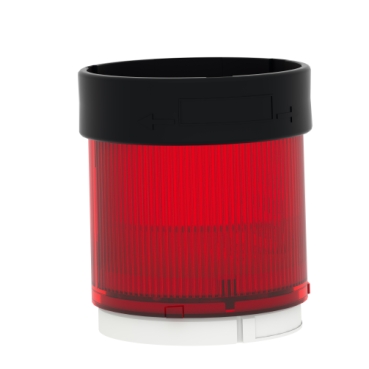

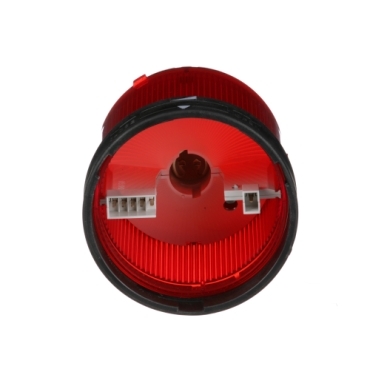

Harmony XVB Indicator bank illuminated unit, plastic, red, 70mm, steady, bulb or LED not included, 250V

Item Number: XVBC34

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVB Universal

Product or component type

indicator bank

Warranty

18 months

Physical

Connections - terminals

screw clamp terminals, <= 1 x 1.5 mm² with cable end

Product certifications

  • CCC
  • EAC
  • CSA C22-2 No 14
  • UL 508

Standards

IEC 60947-5-1

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

  • -25...50 °C: LED
  • -25...70 °C: incandescent

Ip degree of protection

  • IP65 on fixing base XVBZ0. conforming to IEC 60529
  • IP66 on base unit conforming to IEC 60529

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP070907EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

polycarbonate

Others

Important message

XVB is being substituted by XVB7 as complete range; XVB and XVB7 modules are not interoperable with one another.

Package 1 bare product quantity

1

Package 2 bare product quantity

36

Package 3 bare product quantity

288

Average percentage of recycled plastic content

0 %

Legacy weee scope

Out

At least in Europe

Weee label

No

Beacon or indicator bank unit type

illuminated unit

Signalling type

steady

Mounting diameter

70 mm

Component name

XVBC

Light source

bulb not included, red

Bulb type

  • incandescent with BA 15d base
  • protected LED

[us] rated supply voltage

<= 250 V

Assembly style

customer assembly, up to 5 units

Maximum power dissipation in w

7 W

[ui] rated insulation voltage

250 V conforming to IEC 60947-1

Nominal voltage limit

0.85...1.1 Un conforming to IEC 60947-5-1

[uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Cad overall width

70 mm

Cad overall height

63 mm

Cad overall depth

70 mm

Pollution degree

2

Protective treatment

TC

Electrical shock protection class

  • class I on support tube conforming to IEC 61140
  • class II on base unit conforming to IEC 61140

Nema degree of protection

Type 4X conforming to UL (indoor)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.500 cm

Package 1 width

10.000 cm

Package 1 length

10.000 cm

Package 1 weight

136.000 g

Unit type of package 2

S03

Number of units in package 2

36

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

5.597 kg

Unit type of package 3

P06

Number of units in package 3

288

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

52.508 kg

Total lifecycle carbon footprint

2 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.5686986332828385

Carbon footprint of the manufacturing phase [a1 to a3]

2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.36279151663716575

Carbon footprint of the distribution phase [a4]

0.4 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0009309117660152265

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.3196245587512752

Carbon footprint of the end-of-life phase [c1 to c4]

0.3 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

2.2520456204372947

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

124e2d7a-5b1e-45ca-b93c-220dd91b55b6

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

  • Operating Manuals

  • Technical illustration

  • Specification Guide

  • Technical Drawing

  • Certificates (MSDS)

  • eTechPub

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Missing CAD 2024 project C&S
ZIP

Missing CAD 2024 project C&S

VERSION

1.0

DATE

19 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 3.2 MB
XVBC34_CAD_DOC
ZIP

XVBC34_CAD_DOC

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 47.3 KB
XVB - 70 mm diameter indicator bank PEP
ZIP

XVB - 70 mm diameter indicator bank PEP

VERSION

1.1

DATE

30 Jul 2025

REVISION

1.1

DOWNLOAD (ZIP) 1.3 MB
Harmony XVB Tower Light
ZIP

Harmony XVB Tower Light

VERSION

1.0

DATE

16 Feb 2025

REVISION

1.0

DOWNLOAD (ZIP) 386.4 KB
Harmony XVB Tower Light
ZIP

Harmony XVB Tower Light

VERSION

1.0

DATE

29 Jul 2025

REVISION

1.0

DOWNLOAD (ZIP) 280.1 KB
XVBL... /C..., XVDL.../C... Beacons and indicator banks Ø 70 mm Universal (EN)
ZIP

XVBL... /C..., XVDL.../C... Beacons and indicator banks Ø 70 mm Universal (EN)

VERSION

4.0

DATE

21 Aug 2024

REVISION

4.0

DOWNLOAD (ZIP) 1.1 MB
Harmony™ XVB to XVB7 Modular Tower Lights substitution guide
ZIP

Harmony™ XVB to XVB7 Modular Tower Lights substitution guide

VERSION

1.0

DATE

18 Mar 2025

REVISION

1.0

DOWNLOAD (ZIP) 2.8 MB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

1.0

DATE

25 Oct 2024

REVISION

1.0

DOWNLOAD (ZIP) 247 KB
Tender specifications KDP
ZIP

Tender specifications KDP

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 24.8 KB

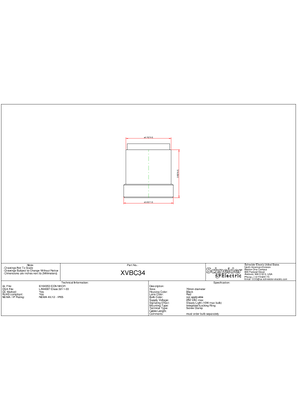

XVBC34_2DSalesDrawing_PDF
