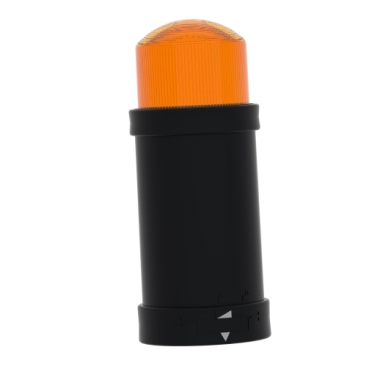

Harmony XVB Indicator bank illuminated unit, plastic, orange, 70mm, integral flash discharge tube, 5joule, 24V AC/DC

Item Number: XVBC6B5

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110845624	-

Specifications

Design

Range of product	Harmony XVB Universal
Product or component type	indicator bank
Warranty	18 months

Physical

Connections - terminals	screw clamp terminals, <= 1 x 1.5 mm² with cable end
Net weight	0.295 kg
Product certifications	CCC EAC CSA C22-2 No 14 UL 508
Standards	IEC 60947-5-1
Ambient air temperature for storage	-40...70 °C
Ip degree of protection	IP65 on fixing base XVBZ0. conforming to IEC 60529 IP66 on base unit conforming to IEC 60529
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP0709007EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material	polycarbonate

Others

Important message	XVB is being substituted by XVB7 as complete range; XVB and XVB7 modules are not interoperable with one another.
Package 1 bare product quantity	1
Legacy weee scope	Out
Warranty duration(in months) bmecat	18
Weee label	No
Average percentage of recycled plastic content	0 %
	At least in Europe
Beacon or indicator bank unit type	illuminated unit
Signalling type	flashing
Mounting diameter	70 mm
Component name	XVBC
Light source	integral flash discharge tube, orange
Bulb type	flash discharge tube
[us] rated supply voltage	24 V AC/DC
Flash energy	5 J
Assembly style	customer assembly, up to 5 units
[ui] rated insulation voltage	250 V conforming to IEC 60947-1
Nominal voltage limit	0.85...1.1 Un conforming to IEC 60947-5-1
Current consumption	< 350 mA DC < 550 mA AC
[uimp] rated impulse withstand voltage	4 kV conforming to IEC 60947-1
Flashing frequency	1 Hz
Cad overall width	70 mm
Cad overall height	157 mm
Cad overall depth	70 mm
Protective treatment	TC
Electrical shock protection class	class I on support tube conforming to IEC 61140 class II on base unit conforming to IEC 61140
Nema degree of protection	Type 4X conforming to UL (indoor)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.0 cm
Package 1 width	9.0 cm
Package 1 length	19.5 cm
Package 1 weight	297.0 g
Unit type of package 2	S03
Number of units in package 2	12
Package 2 height	30.0 cm
Package 2 width	30.0 cm
Package 2 length	40.0 cm
Package 2 weight	4.036 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	396 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	3.085107312122916
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.7134899827197593
Carbon footprint of the distribution phase [a4]	0.7 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0018307931398299454
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	391.5471831092682
Carbon footprint of the use phase [b2, b3, b4, b6]	392 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.6285949655441745
Carbon footprint of the end-of-life phase [c1 to c4]	0.6 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	395.9762061627948
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	124e2d7a-5b1e-45ca-b93c-220dd91b55b6
China rohs label	5
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
