Harmony XVB Indicator bank illuminated unit, plastic, green, 70mm, flashing, for bulb or LED, 48... 230V AC
Item Number: XVBC4M3
This green illuminated unit is designed to be connected with base to create complete tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Datasheet
Specifications
Design
| Range of product | Harmony XVB Universal |
|---|---|
| Product or component type | indicator bank |
| Warranty | 18 months |
Physical
| Connections - terminals | screw clamp terminals, <= 1 x 1.5 mm² with cable end |
|---|---|
| Net weight | 0.16 kg |
| Product certifications |
|
| Standards | IEC 60947-5-1 |
| Ambient air temperature for storage | -40...70 °C |
| Ambient air temperature for operation |
|
| Ip degree of protection |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP0709007EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | X |
| Eu rohs directive | Compliant By Exemption |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Material
| Material | polycarbonate |
|---|
Documents & downloads
-
All
-
CAD Files and Packs
-
Environmental Disclosure
-
End of Life Manual
-
Installation Instruction
-
Operating Manuals
-
Technical illustration
-
Specification Guide
-

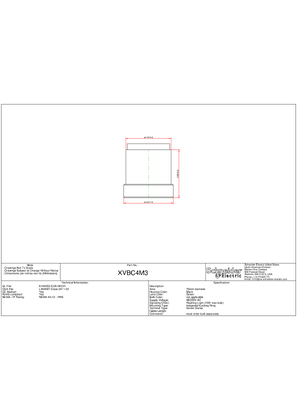

Technical Drawing
-
