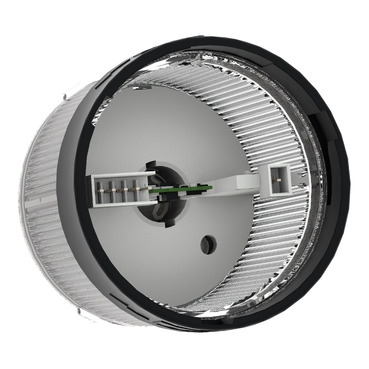

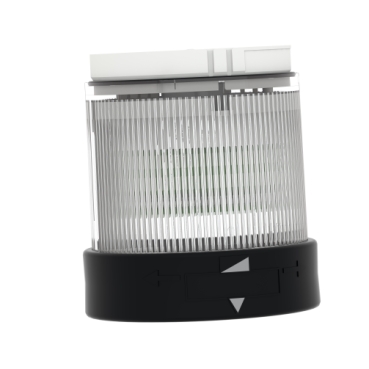

Harmony XVB Indicator bank illuminated unit, plastic, clear, 70mm, steady, integral LED, 24V AC/DC

Home ProductsIndustrialHarmonyIndicator bank

Harmony XVB Indicator bank illuminated unit, plastic, clear, 70mm, steady, integral LED, 24V AC/DC

Item Number: XVBC2B7

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVB Universal

Product or component type

indicator bank

Warranty

18 months

Physical

Connections - terminals

screw clamp terminals, <= 1 x 1.5 mm² with cable end

Net weight

0.15 kg

Product certifications

  • CCC
  • EAC
  • CSA C22-2 No 14
  • UL 508

Standards

IEC 60947-5-1

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-25...50 °C

Ip degree of protection

  • IP65 on fixing base XVBZ0. conforming to IEC 60529
  • IP66 on base unit conforming to IEC 60529

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP070907EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

polycarbonate

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Weee label

No

At least in Europe

Beacon or indicator bank unit type

illuminated unit

Signalling type

steady

Mounting diameter

70 mm

Component name

XVBC

Light source

integral LED, clear

Bulb type

protected LED

[us] rated supply voltage

24 V AC/DC

Assembly style

customer assembly, up to 5 units

[ui] rated insulation voltage

250 V conforming to IEC 60947-1

Nominal voltage limit

0.85...1.1 Un conforming to IEC 60947-5-1

Current consumption

< 47 mA AC/DC

[uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Cad overall width

70 mm

Cad overall height

63 mm

Cad overall depth

70 mm

Pollution degree

2

Protective treatment

TC

Electrical shock protection class

  • class I on support tube conforming to IEC 61140
  • class II on base unit conforming to IEC 61140

Nema degree of protection

Type 4X conforming to UL (indoor)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9 cm

Package 1 width

10 cm

Package 1 length

9 cm

Package 1 weight

133 g

Unit type of package 2

S03

Number of units in package 2

36

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

5.822 kg

Unit type of package 3

P06

Number of units in package 3

288

Package 3 height

80 cm

Package 3 width

80 cm

Package 3 length

60 cm

Package 3 weight

54.524 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

36 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.5686986332828385

Carbon footprint of the manufacturing phase [a1 to a3]

2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.36279151663716575

Carbon footprint of the distribution phase [a4]

0.4 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0009309117660152265

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

33.518811887384324

Carbon footprint of the use phase [b2, b3, b4, b6]

34 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.3196245587512752

Carbon footprint of the end-of-life phase [c1 to c4]

0.3 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

35.77085750782162

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

397b2f60-b78e-4d4e-9cd8-02b80aa83587

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
