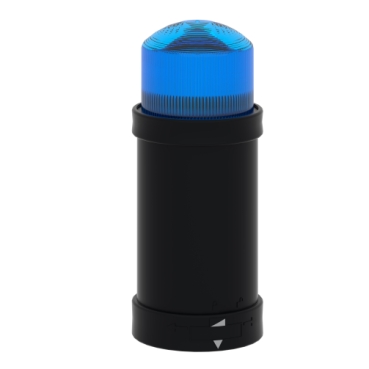

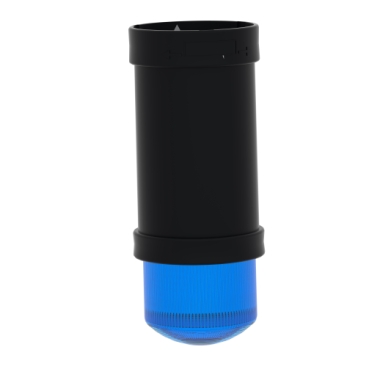

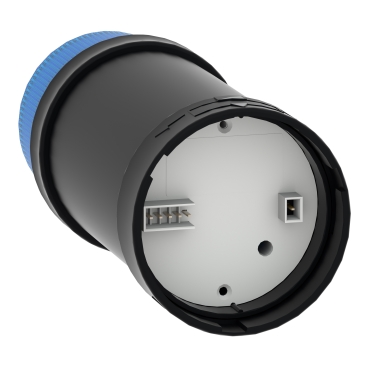

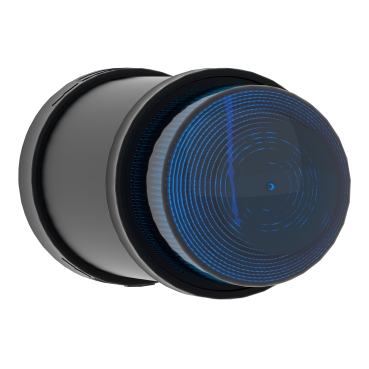

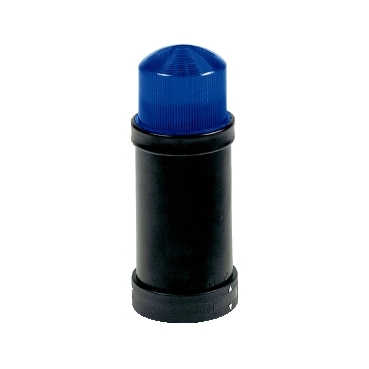

Harmony XVB Indicator bank illuminated unit, plastic, blue, 70mm, integral flash discharge tube, 5joule, 230V AC

Home ProductsIndustrialHarmonyIndicator bank

Harmony XVB Indicator bank illuminated unit, plastic, blue, 70mm, integral flash discharge tube, 5joule, 230V AC

Item Number: XVBC6M6

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVB Universal

Product or component type

indicator bank

Warranty

18 months

Physical

Connections - terminals

screw clamp terminals, <= 1 x 1.5 mm² with cable end

Product certifications

  • CCC
  • EAC
  • CSA C22-2 No 14
  • UL 508

Standards

IEC 60947-5-1

Ambient air temperature for storage

-40...70 °C

Ip degree of protection

  • IP65 on fixing base XVBZ0. conforming to IEC 60529
  • IP66 on base unit conforming to IEC 60529

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP070907EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

polycarbonate

Others

Important message

XVB is being substituted by XVB7 as complete range; XVB and XVB7 modules are not interoperable with one another.

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

End of commercialization (planned, announced or effective)

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Legacy weee scope

Out

Weee label

No

At least in Europe

Beacon or indicator bank unit type

illuminated unit

Signalling type

flashing

Mounting diameter

70 mm

Component name

XVBC

Light source

integral flash discharge tube, blue

Bulb type

flash discharge tube

[us] rated supply voltage

230 V AC

Flash energy

5 J

Assembly style

customer assembly, up to 5 units

[ui] rated insulation voltage

250 V conforming to IEC 60947-1

Nominal voltage limit

0.85...1.1 Un conforming to IEC 60947-5-1

Current consumption

< 105 mA AC

[uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Flashing frequency

1 Hz

Cad overall width

70 mm

Cad overall height

157 mm

Cad overall depth

70 mm

Protective treatment

TC

Electrical shock protection class

  • class I on support tube conforming to IEC 61140
  • class II on base unit conforming to IEC 61140

Nema degree of protection

Type 4X conforming to UL (indoor)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

18.700 cm

Package 1 width

8.000 cm

Package 1 length

8.000 cm

Package 1 weight

282.900 g

Unit type of package 2

S03

Number of units in package 2

12

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.863 kg

Sustainable packaging

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

124e2d7a-5b1e-45ca-b93c-220dd91b55b6

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
