Harmony XVB, Indicating bank accessories + options

Item Number: XVBC23

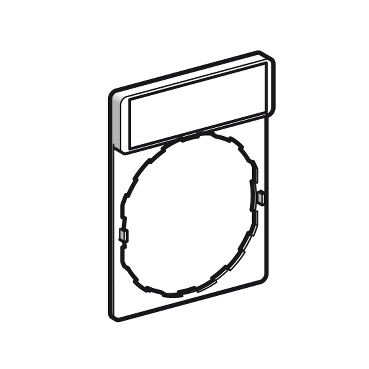

This legend holder provides a clear labelling of your indicator banks. It is supplied with blank plate for custom engraving to support any desired marking. It is compatible with Harmony XVBC.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVB

Product compatibility

XVBC.

Warranty

18 months

Physical

Quantity per set

set of 5

Net weight

0.002 kg

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP070907EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

At least in Europe

Weee label

No

Package 1 bare product quantity

1

Legacy weee scope

Out

Accessory / separate part designation

legend holder

Accessory / separate part type

legend holder

Accessory / separate part category

marking accessories

Accessory / separate part destination

indicator bank Ø 70 mm

Product specific application

for identification of stacked units on base unit

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.5 cm

Package 1 width

3 cm

Package 1 length

3.5 cm

Package 1 weight

3 g

Unit type of package 2

S01

Number of units in package 2

50

Package 2 height

15 cm

Package 2 width

15 cm

Package 2 length

40 cm

Package 2 weight

330 g

Sustainable packaging

No

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

124e2d7a-5b1e-45ca-b93c-220dd91b55b6

End of life manual availability

N/A

Warranty (in months)

18
Show all specifications
