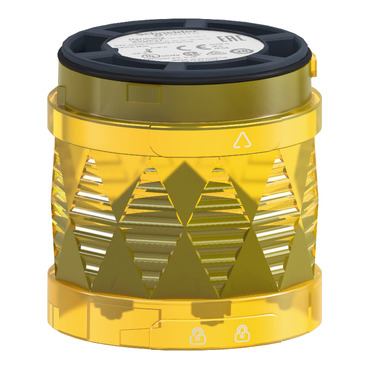

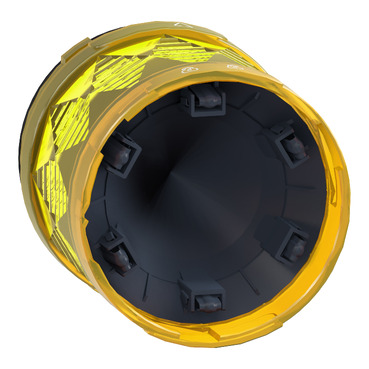

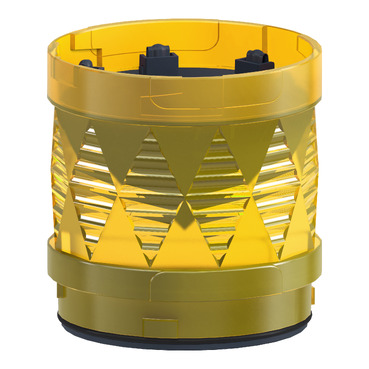

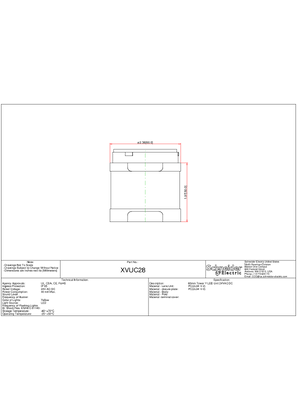

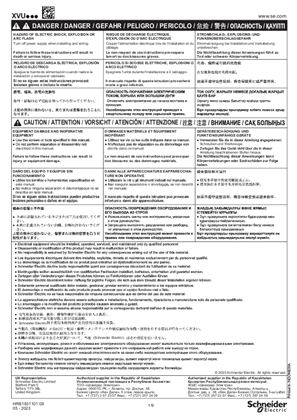

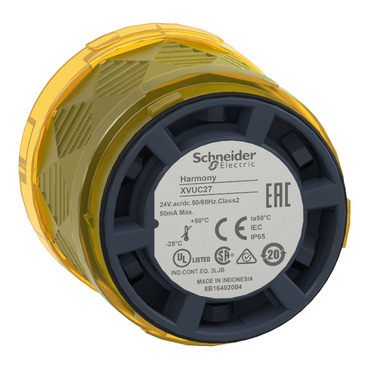

Harmony XVU Illuminated LED unit for modular tower lights yellow, Ø60, steady, IP65, 24V AC/DC

Item Number: XVUC28

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVU

Product or component type

modular tower light

Device application

automotive

Physical

Length

50 mm

Net weight

0.064 kg

Product certifications

CE

Ambient air temperature for storage

-40...70 °C

Ip degree of protection

IP65

Ambient air temperature for operation

-25...50 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308032EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

PC (polycarbonate) V-2 conforming to UL 94

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

24

Package 3 bare product quantity

192

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Beacon or indicator bank unit type

LED unit

Mounting diameter

60 mm

Component name

XVU

Light source

LED, yellow

Signalling type

steady

Assembly style

customer assembly, up to 5 units

[us] rated supply voltage

24 V AC/DC

Maximum power dissipation in w

2.5 W

Current consumption

<= 50 mA

Signalling type

steady

Vibration resistance

2 gn

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.300 cm

Package 1 width

9.300 cm

Package 1 length

13.400 cm

Package 1 weight

146.000 g

Unit type of package 2

S03

Number of units in package 2

24

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

4.169 kg

Unit type of package 3

P06

Number of units in package 3

192

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

41.180 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

13 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.4206599153154208

Carbon footprint of the manufacturing phase [a1 to a3]

0.4 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.00836886573396554

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0661929013249039

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

12.180650684931505

Carbon footprint of the use phase [b2, b3, b4, b6]

12 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.05577412242190091

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

12.731646489727696

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

c06fce4f-aea2-46a5-aadb-0b38d1efbe3f

End of life manual availability

ENVEOLI2308032EN

Take-back

No

Warranty (in months)

18
